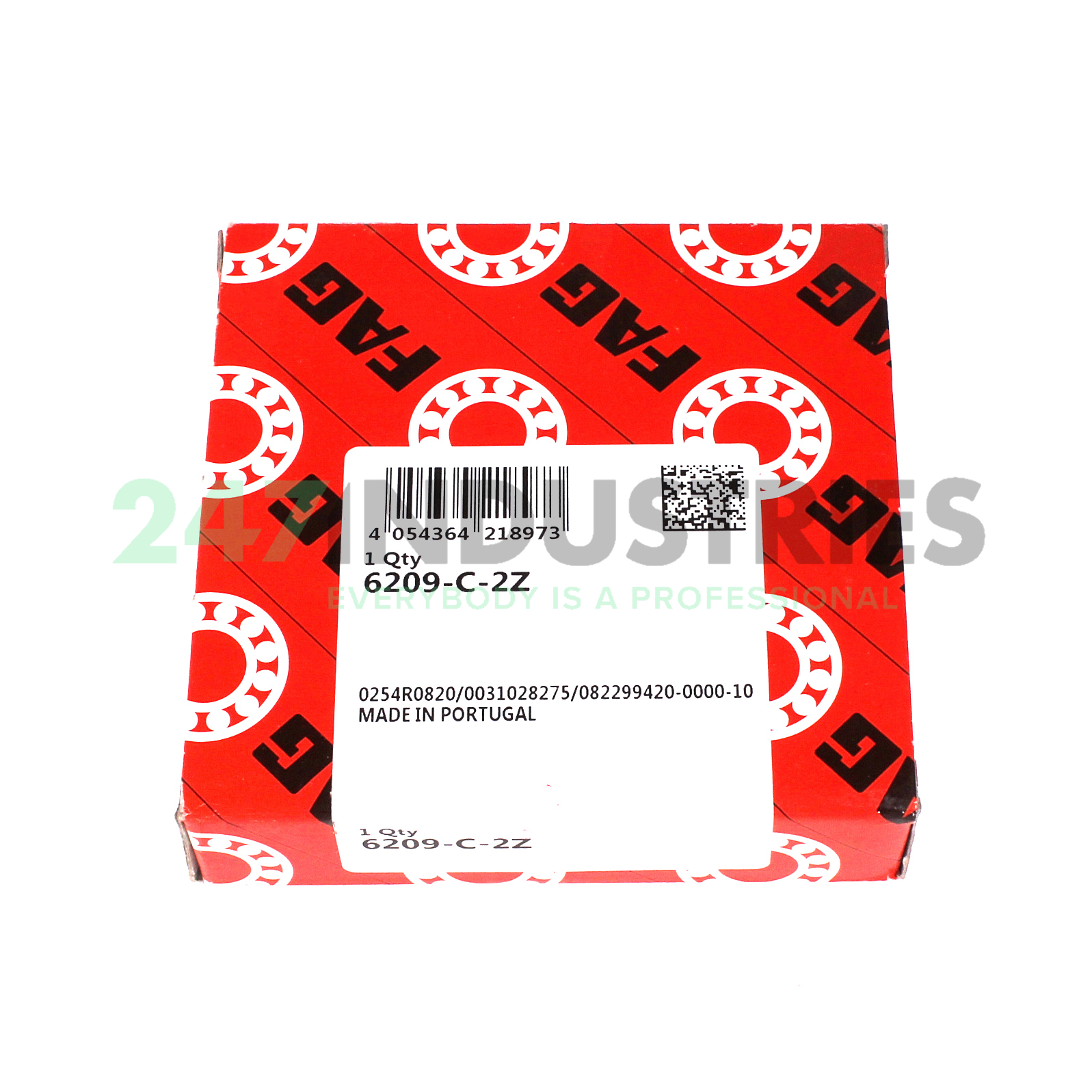

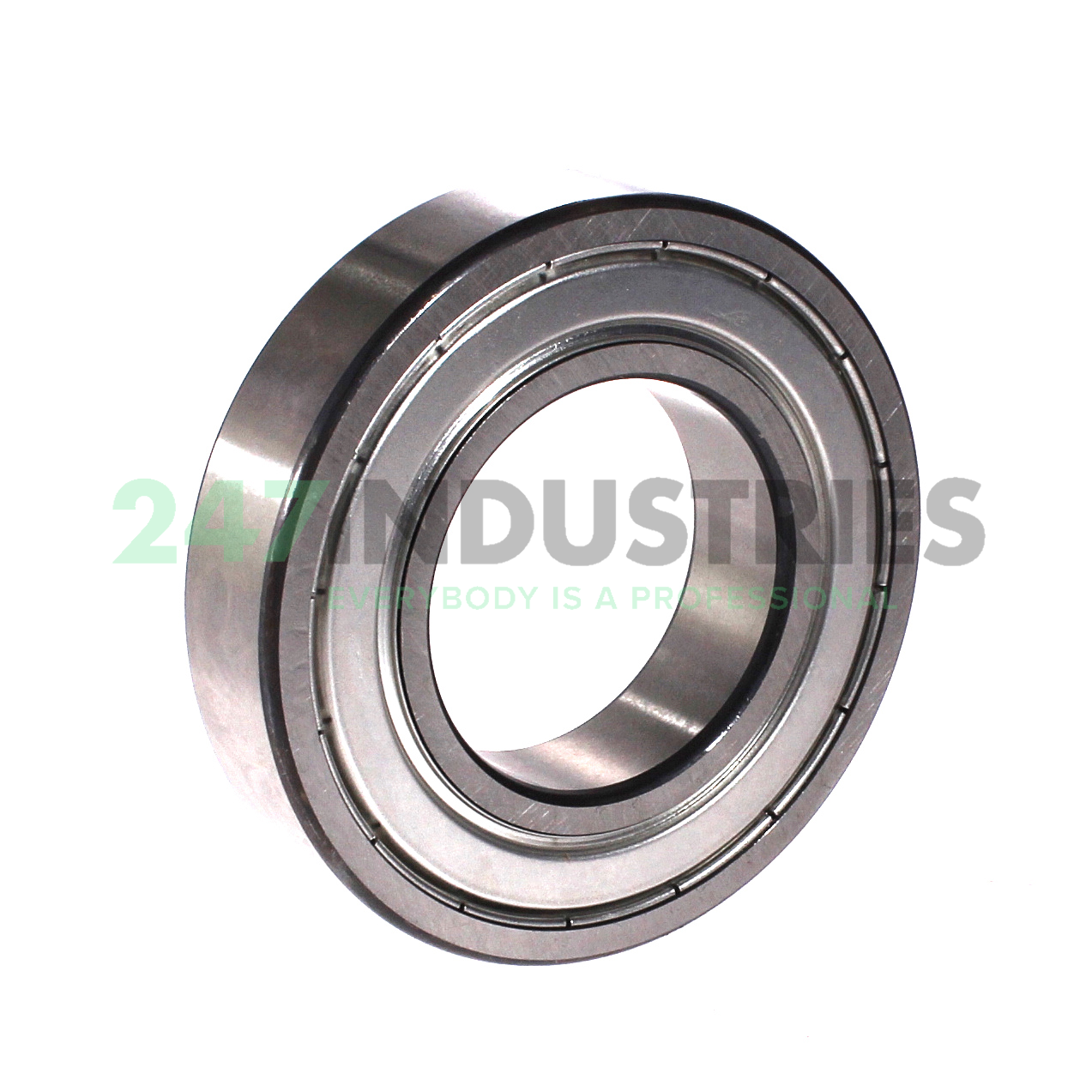

6209-C-2Z FAG

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 85
3. Width (B) MM 19
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.3465
6. Width (B) Inch 0.748
7. Width (b) mm 19

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. 2Z Gap Seals On Both Sides

Technical details

1. Availability 163 pcs
2. Brand FAG
3. Item number 6209-C-2Z FAG
4. Also known as 0822994200000
   3016113350000
   6209-2Z

5. EAN 4054364218973
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.413

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 20300
2. Radial Dynamic Load Rating Cr (N) 33500
3. Limiting speed (n G) 10800
4. Reference speed (n ϑr) 9900
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 62..-C-2Z, single row, cf. DIN 625-1
