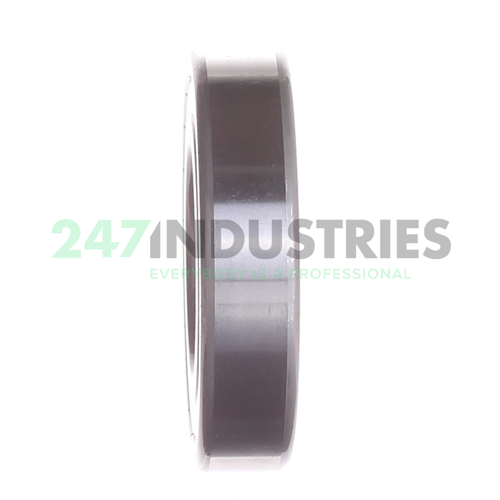

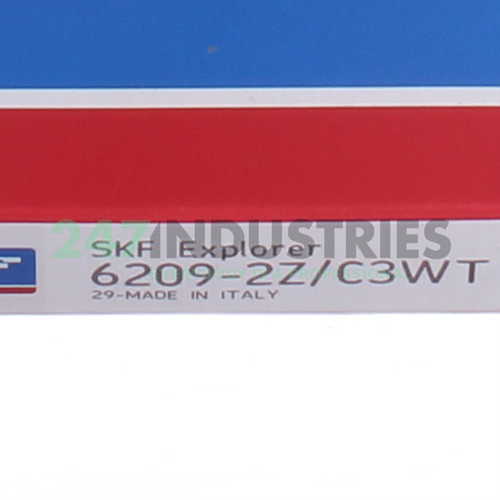

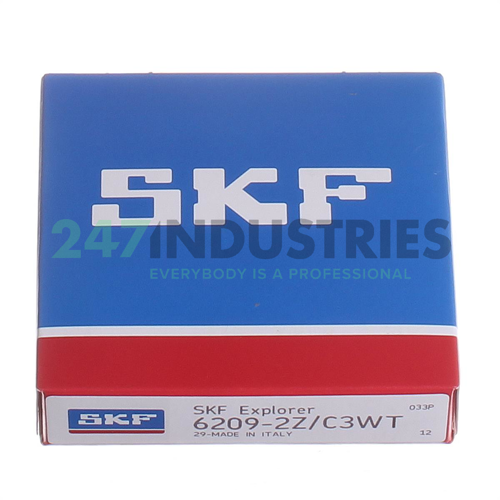

6209-2Z/C3WT SKF

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 85
3. Width (B) MM 19
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.3465
6. Width (B) Inch 0.748

Suffix description

1. 2Z Shield Of Pressed Sheet Steel On Both Sides Of The Bearing
2. C3 Internal Clearance Larger Than Normal
3. WT Grease Fill For Low As Well As High Temperature e.g. Range -40 ~ 160°C. WT Or A Two-Figure Number Following WT Identifies The Actual Grease. An Additional Letter Or Letter/ Figure Combination As Mentioned Under “HT” Identifies Filling Degrees Other Than Standard

Technical details

1. Availability 38 pcs
2. Brand SKF
3. Item number 6209-2Z/C3WT SKF
4. Also known as 6209-2Z/C3
   6209-2Z-C3

5. EAN 7316571328614
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.413

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication High Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
