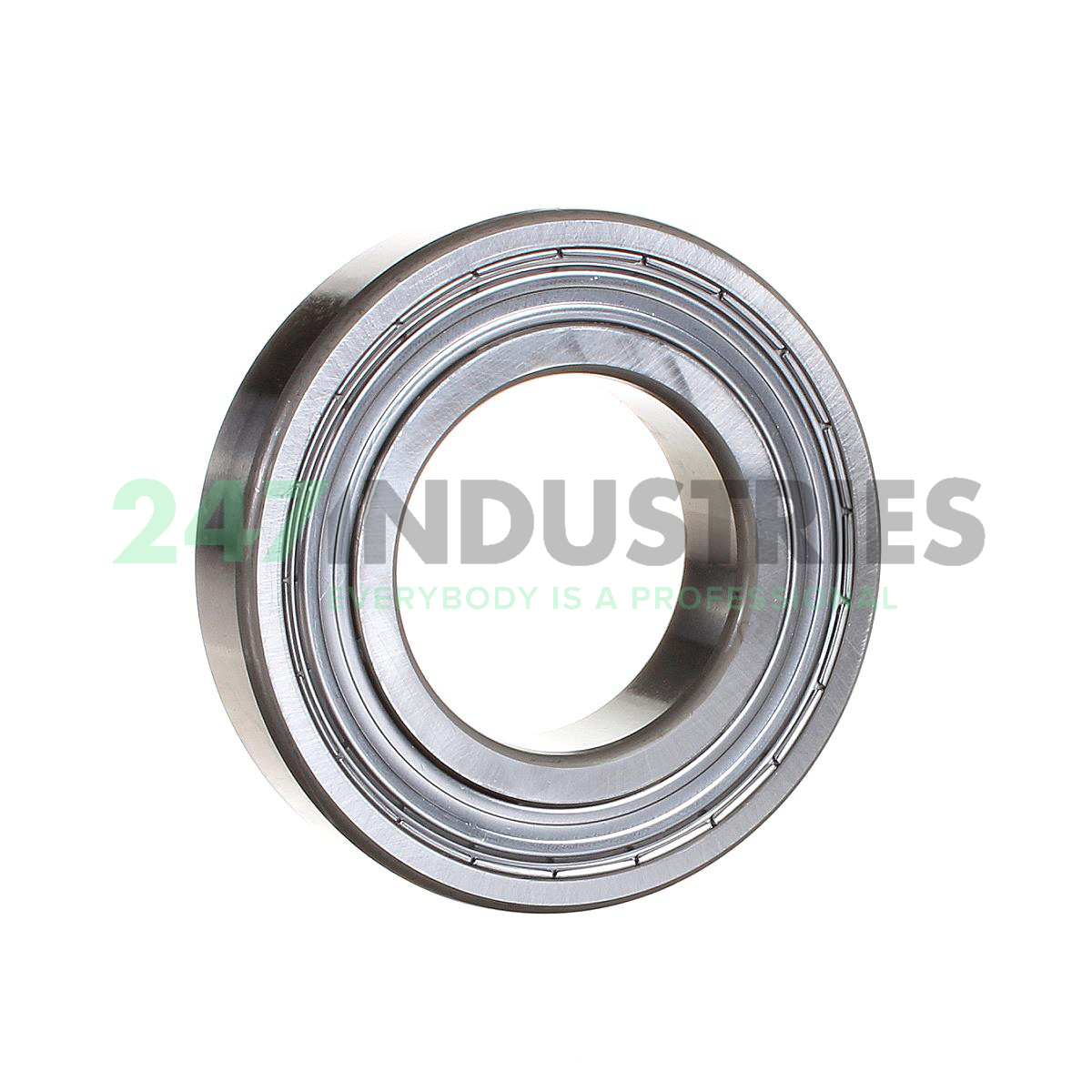

6209-2Z/C3HT22 SKF

All dimensions

1. Inner (d) MM 45,00
2. Outer (D) MM 85,00
3. Width (B) MM 19,00
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.3465
6. Width (B) Inch 0.7480

Suffix description

1. 2Z Shield Of Pressed Sheet Steel On Both Sides Of The Bearing
2. C3 Internal Clearance Larger Than Normal
3. HT22 Grease Fill For High Temperatures (e.g. Range -20 ~ 130°C). HT Or A Two Figure Number Following HT Identifies The Actual Grease

Technical details

1. Availability 0 pcs
2. Brand SKF
3. Item number 6209-2Z/C3HT22 SKF
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.413

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication 2 - High Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
