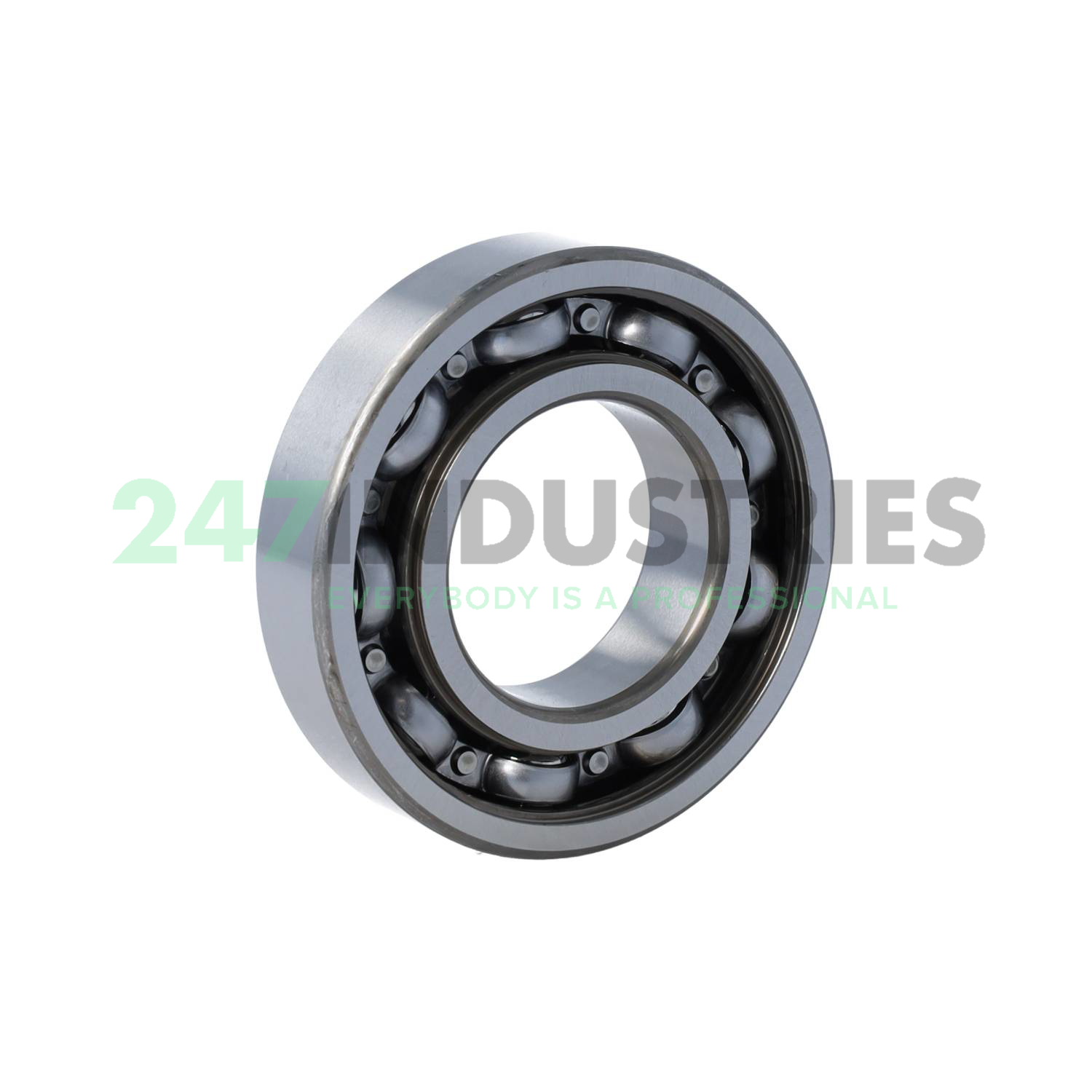

6208ZC3E NSK

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 80
3. Width (B) MM 18
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.7087

Suffix description

1. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
2. C3 Internal Clearance Larger Than Normal
3. E Ball Bearing, Single Row Electric Motor Grade, Noise Level

Technical details

1. Availability 10 pcs
2. Brand NSK
3. Item number 6208ZC3E NSK
4. Also known as 6208-Z/C3QE6

5. EAN 00029176014857
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.369

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
