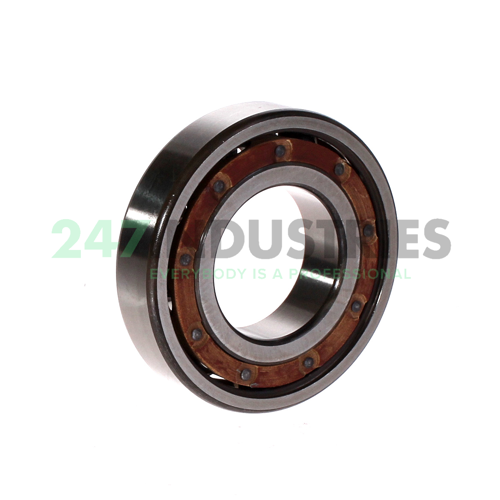

6208TB.P63 FAG

All dimensions

1. Inner (d) MM 40,00
2. Outer (D) MM 80,00
3. Width (B) MM 18,00
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.7087

Suffix description

1. TB Window-Type Cage Of Fabric Reinforced Phenolic Resin, Inner Ring Centered
2. P63 Combination Of P6 (Dimensional And Running Accuracy To ISO Tolerance Class 6 (Better Than Normal)) And C3 (Internal Clearance Larger Than Normal)

Technical details

1. Availability 2 pcs
2. Brand FAG
3. Item number 6208TB.P63 FAG
4. Also known as 6208TB.C3
   6208TB/C3
   6208TB/P63
   6208-TB-P6-C3

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.367

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type TB - Hard Fiber Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision P6 Precision (Higher than Standard)
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
