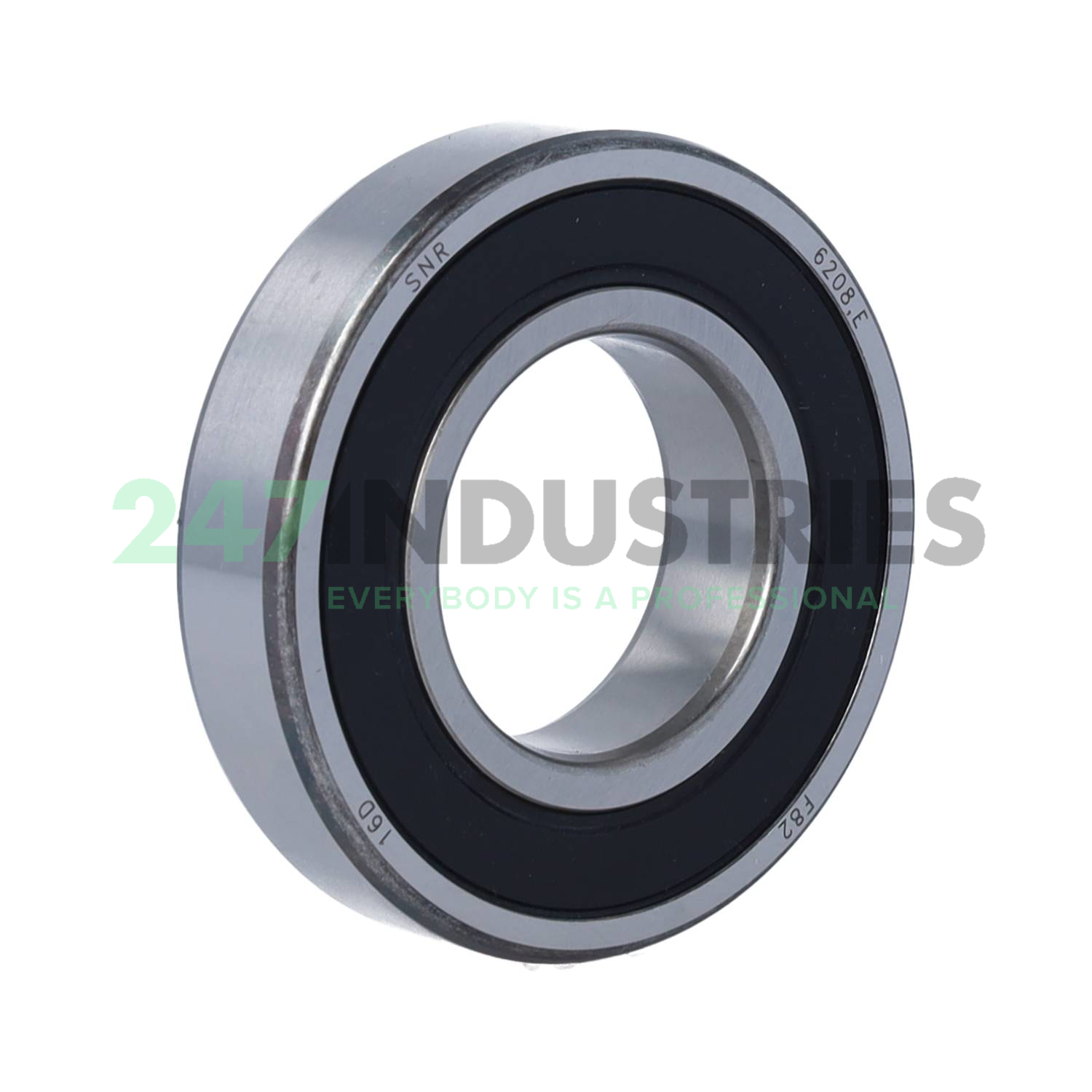

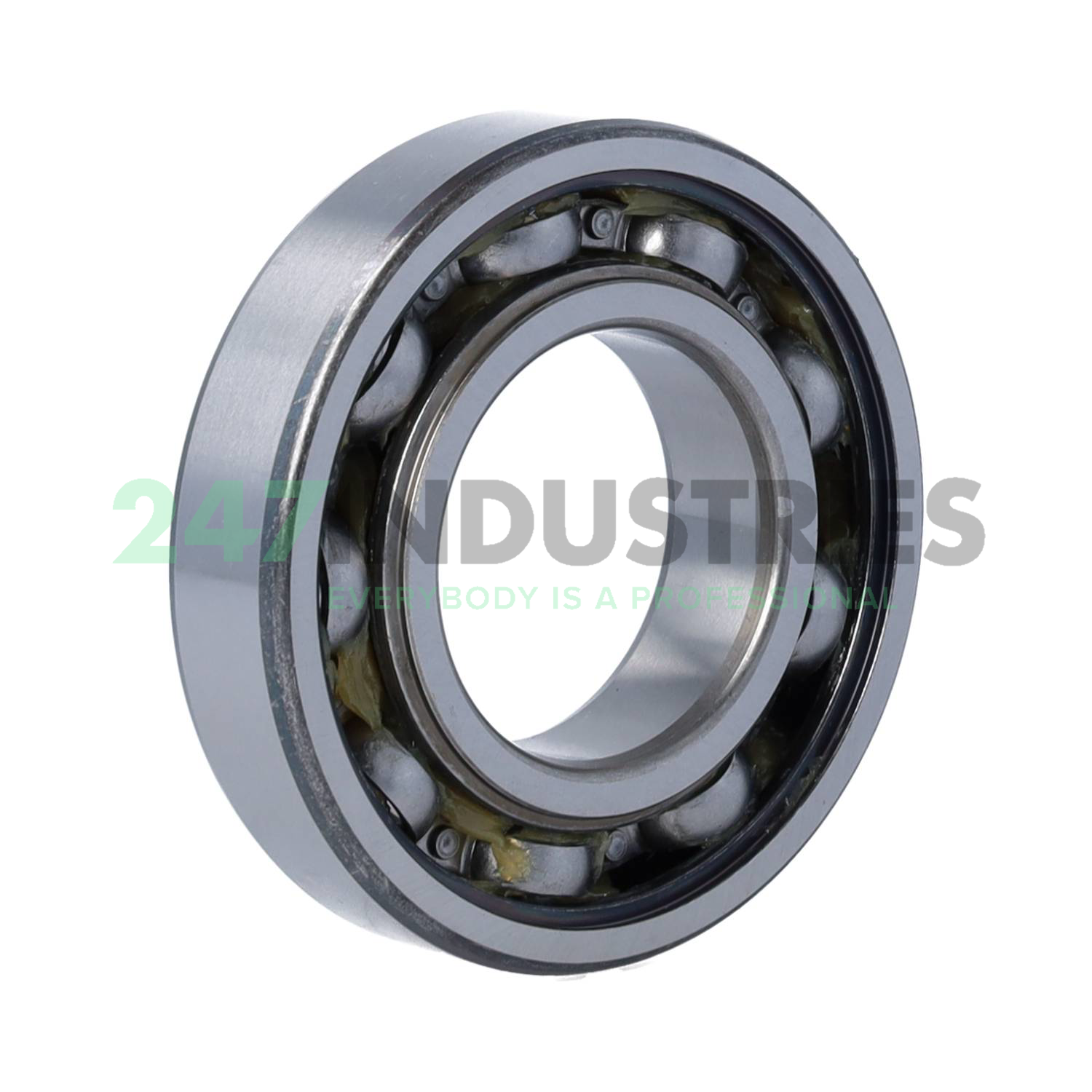

6208E SNR

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 80
3. Width (B) MM 18
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.7087

Suffix description

1. E Ball Bearing, Standard Single Seal

Technical details

1. Availability 3 pcs
2. Brand SNR
3. Item number 6208E SNR
4. Also known as 6208.E
   6208DU
   6208LU
   6208RS
   6208-RS1
   6208-RSR

5. EAN 3413520131487
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.37

Product Properties

1. Bore C - Cylindrical Bore
2. Seal RS - Rubber Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
