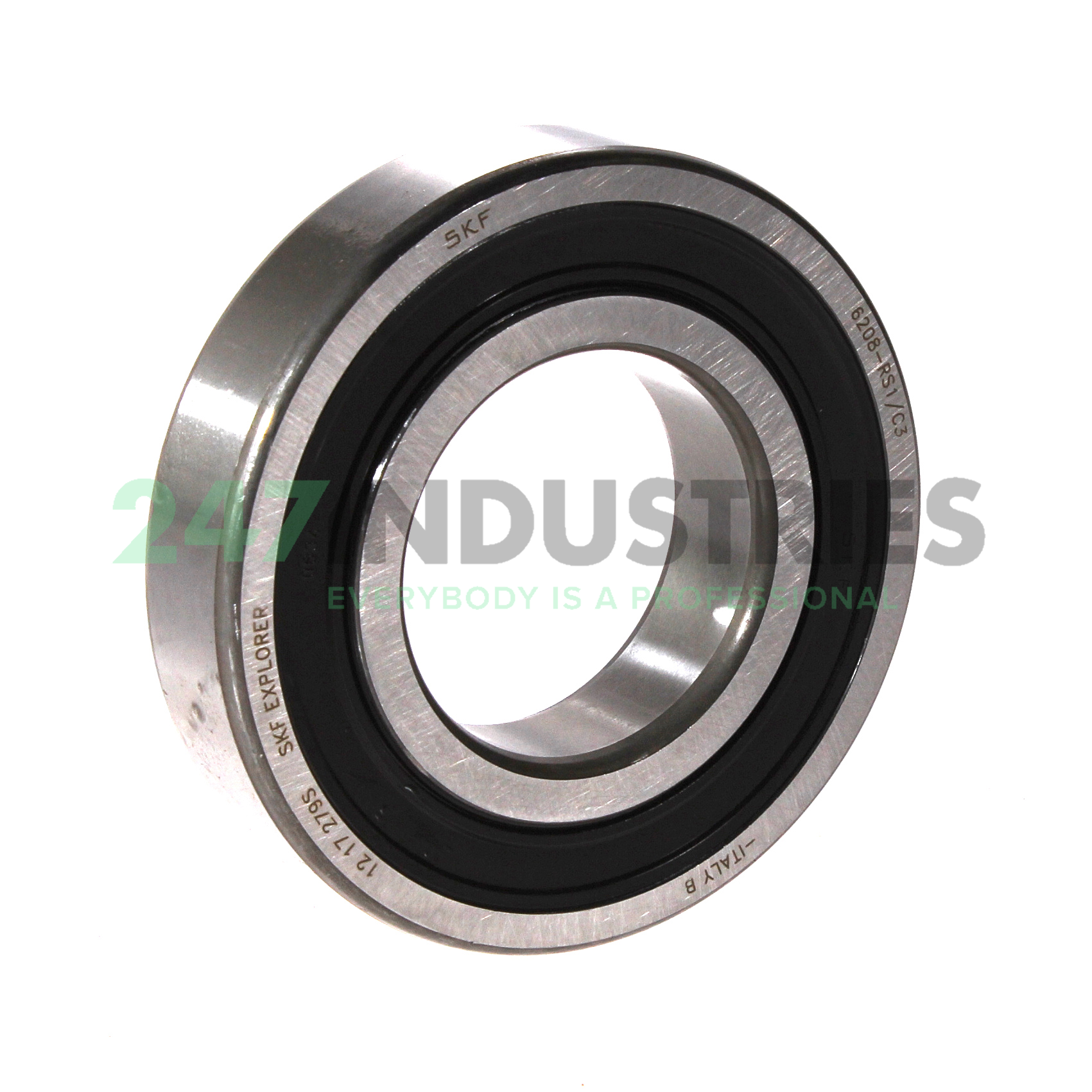

6208-RS1/C3 SKF

All dimensions

1. Inner (d) MM 40,00
2. Outer (D) MM 80,00
3. Width (B) MM 18,00
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.7087

Suffix description

1. RS1 Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On One Side Of The Bearing
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 8 pcs
2. Brand SKF
3. Item number 6208-RS1/C3 SKF
4. EAN 7316571369075
5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.37

Product Properties

1. Bore C - Cylindrical Bore
2. Seal RS - Rubber Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
