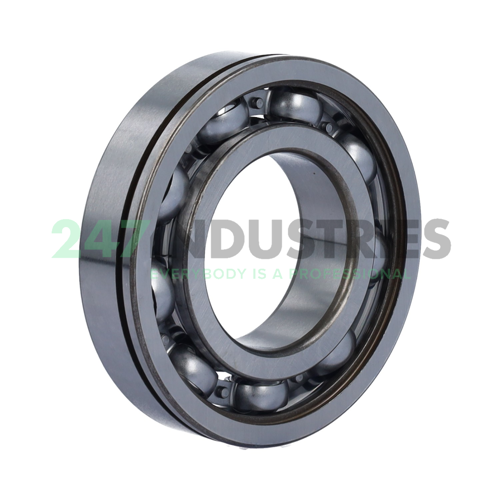

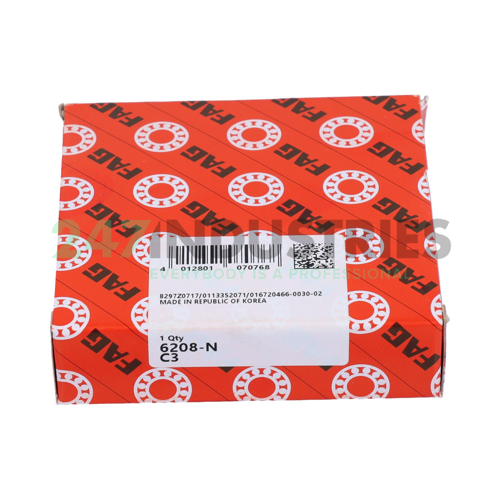

6208-N-C3 FAG

All dimensions

1. Inner (d) MM 40,00
2. Outer (D) MM 80,00
3. Width (B) MM 18,00
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.7087
7. Width (b) mm 18,00

Suffix description

1. N Snap Ring Groove In The Outer Ring
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 30 pcs
2. Brand FAG
3. Item number 6208-N-C3 FAG
4. Also known as 0167204660030

5. EAN 4012801070768
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.36

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification N - Snap Ring Groove in Outer Ring
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) "17800.0000"
2. Limiting speed (n G) "12300.0000"
3. Reference speed (n ϑr) "9300.0000"
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01
