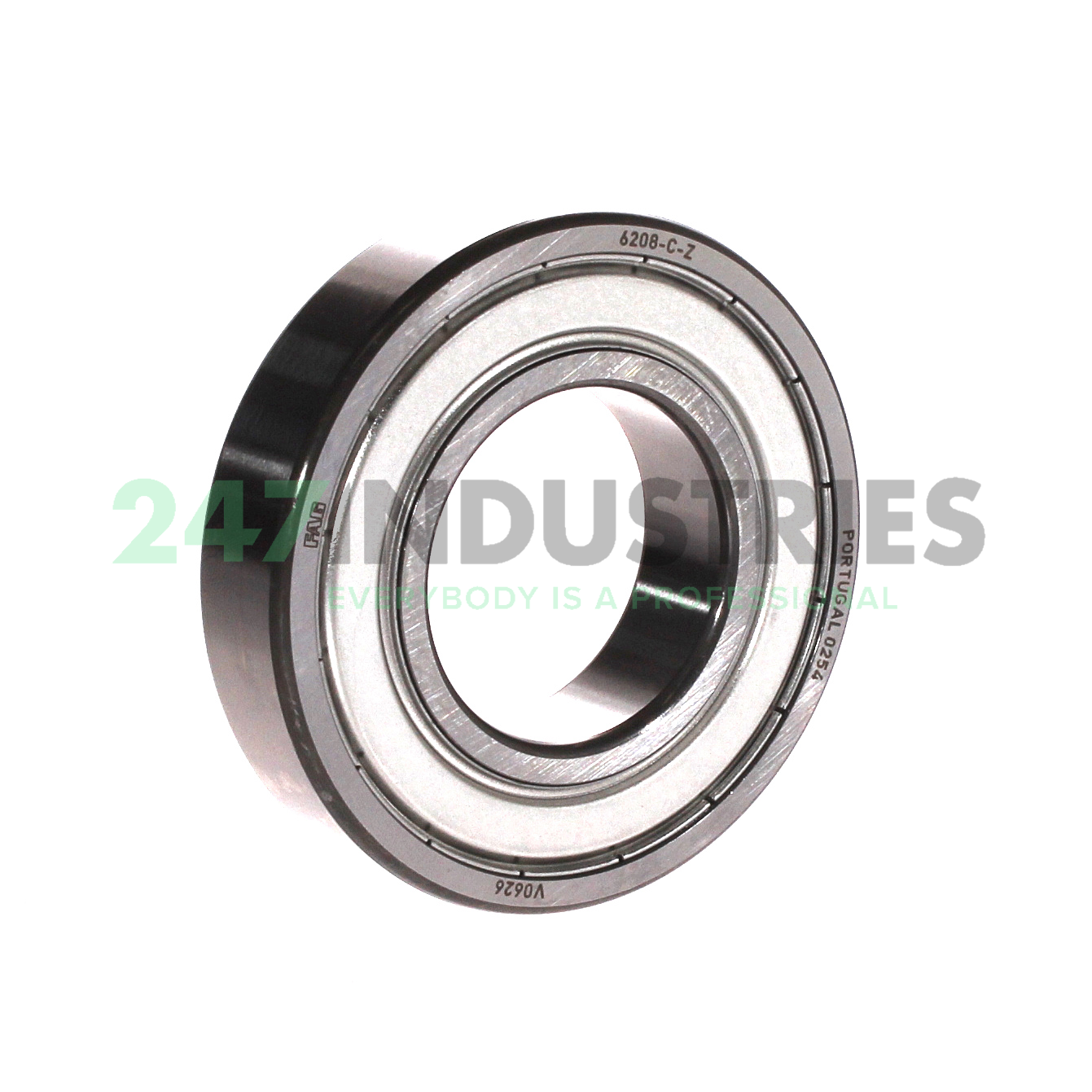

6208-C-Z FAG

All dimensions

1. Inner (d) MM 40,00
2. Outer (D) MM 80,00
3. Width (B) MM 18,00
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.7087
7. Width (b) mm 18,00

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
3. >V 100% Identical Regardless Of Production Location

Technical details

1. Availability 80 pcs
2. Brand FAG
3. Item number 6208-C-Z FAG
4. Also known as 0792397490000
   6208-Z

5. EAN 4054364441241
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.369

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) "17800.0000"
2. Limiting speed (n G) "13600.0000"
3. Reference speed (n ϑr) "10500.0000"
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01

Downloads and links

1. Link to manufacturer Link to manufacturer
