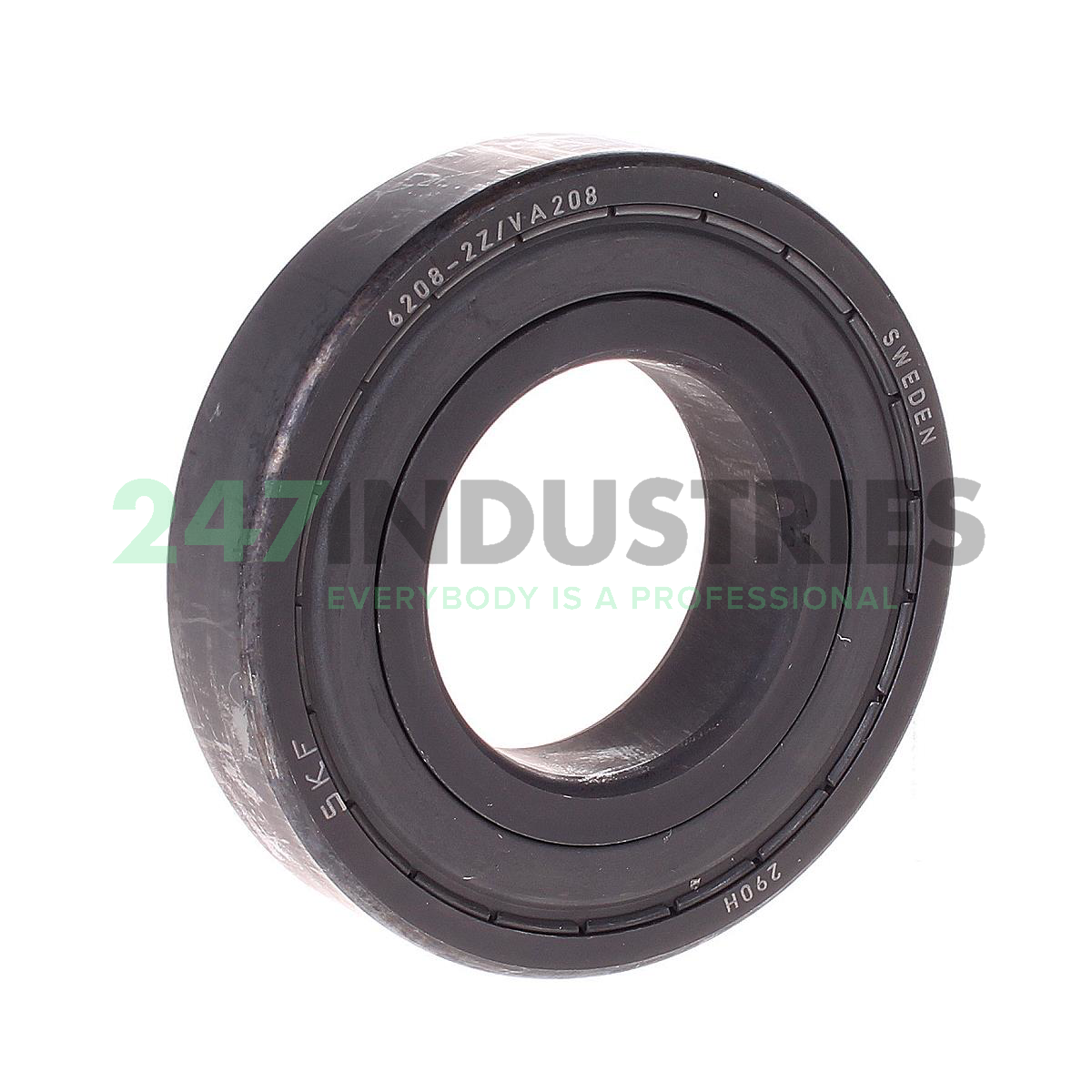

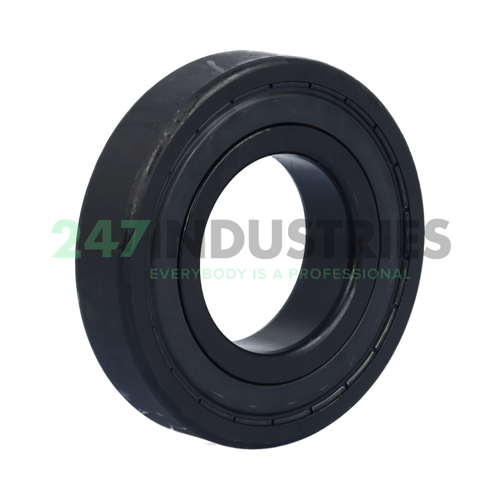

6208-2Z/VA208 SKF

All dimensions

1. Inner (d) MM 40,00
2. Outer (D) MM 80,00
3. Width (B) MM 18,00
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.7087

Suffix description

1. 2Z Shield Of Pressed Sheet Steel On Both Sides Of The Bearing
2. VA208 Bearing For High Temperature Applications, Good To 350°C (Graphite Cage) And 100 rpm

Technical details

1. Availability 33 pcs
2. Brand SKF
3. Item number 6208-2Z/VA208 SKF
4. Also known as 6208-2Z
   6208ZZ

5. EAN 7316570968798
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.367

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment 2 - Special Heat Tr -150/+350°C
