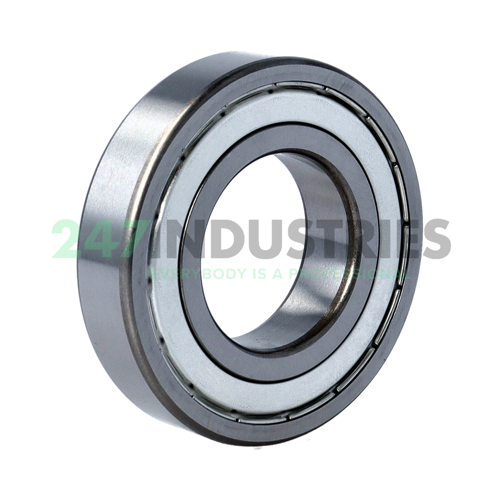

6208-2Z-L138 FAG

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 80
3. Width (B) MM 18
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.7087
7. Width (b) mm 18

Suffix description

1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
2. L138 NS Hi-Lube Grease Lithium Soap, Temperature Range -30ºC/+130ºC

Technical details

1. Availability 20 pcs
2. Brand FAG
3. Item number 6208-2Z-L138 FAG
4. Also known as 0679754020000

5. EAN 4012802851540
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.367

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Low Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 17800
2. Limiting speed (n G) 10400
3. Reference speed (n ϑr) 9300

Downloads and links

1. Link to manufacturer Link to manufacturer
