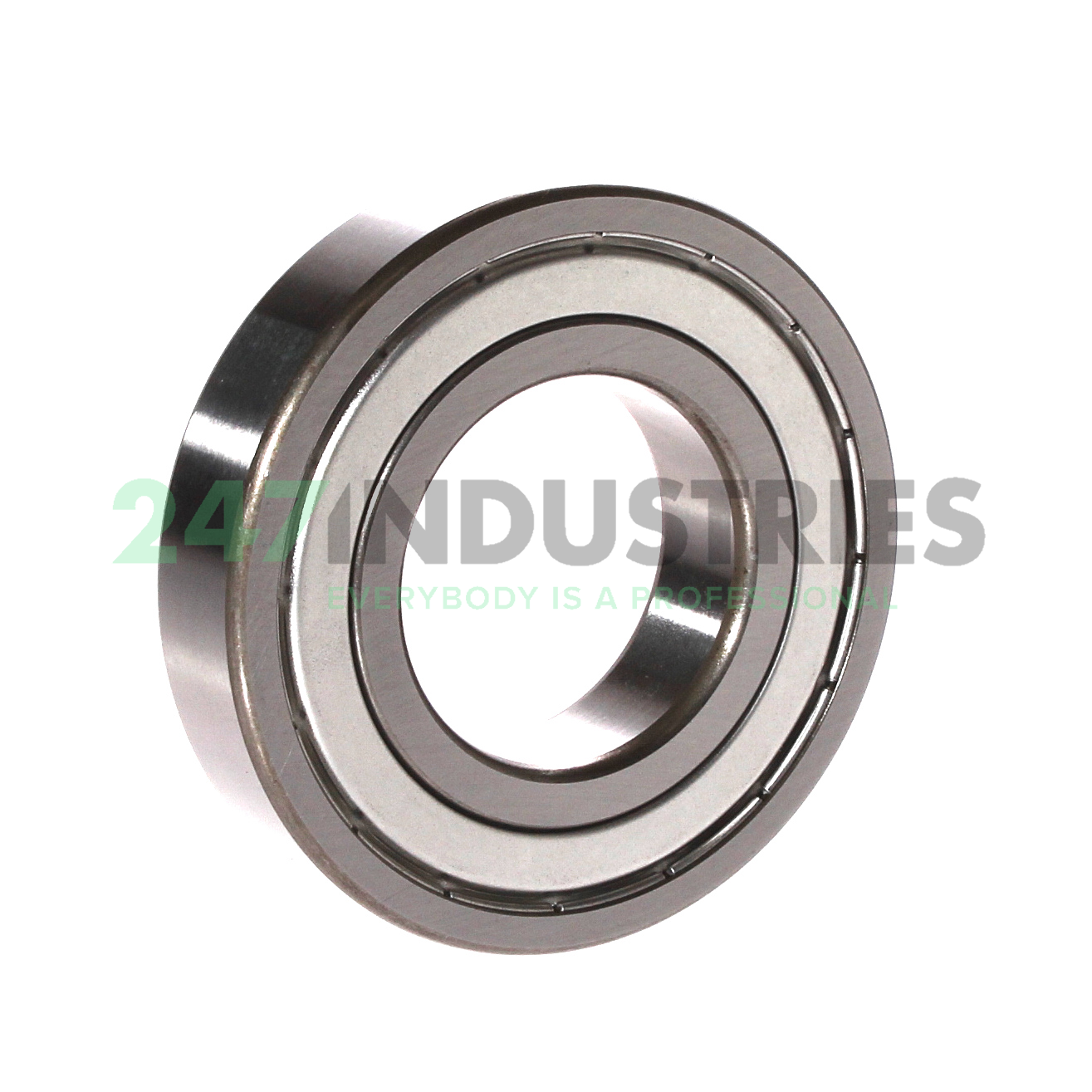

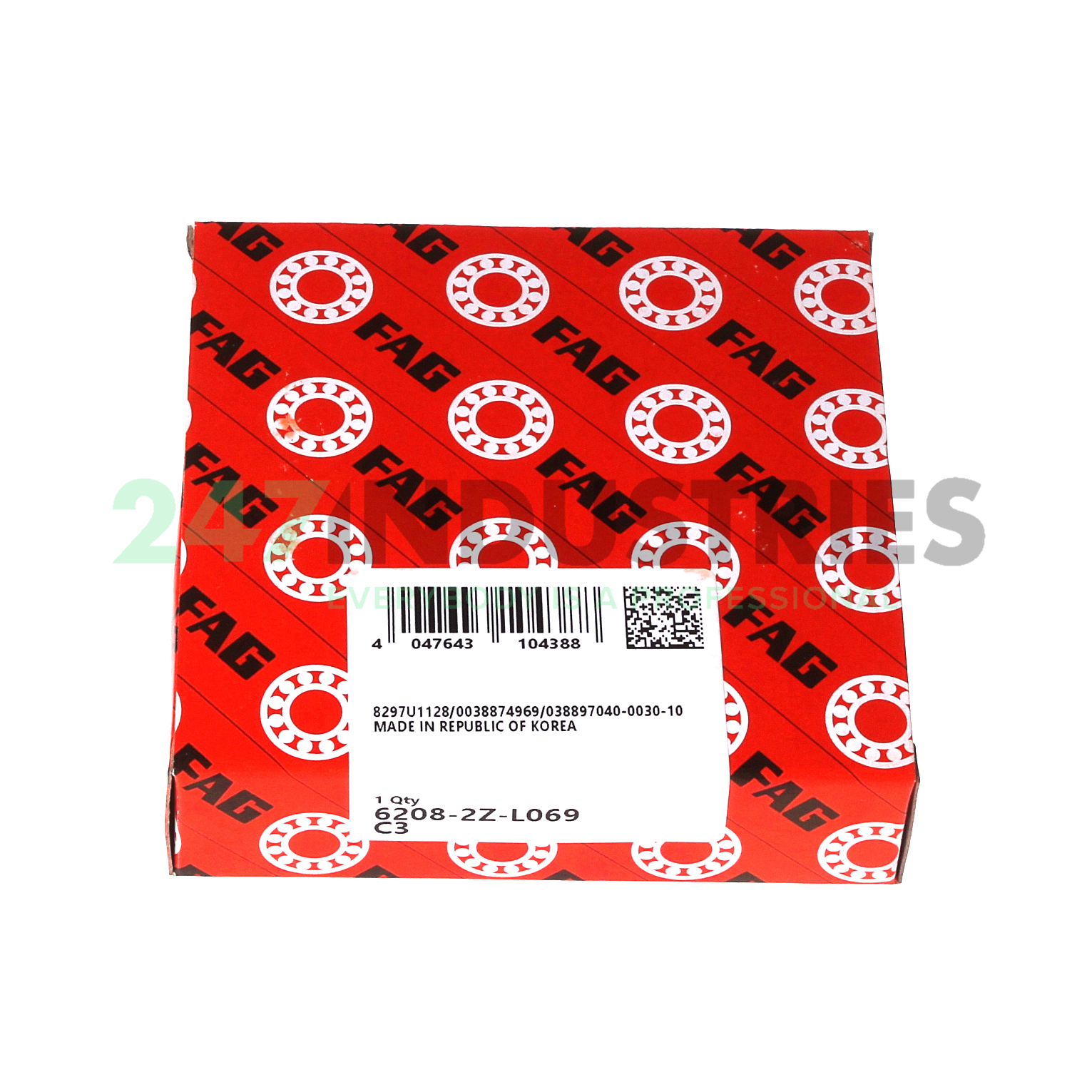

6208-2Z-L069-C3 FAG

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 80
3. Width (B) MM 18
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.7087
7. Width (b) mm 18

Suffix description

1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
2. L069 Insert Bearing Grease For Wide Temperature Range - Polycarbamide Ester Oil - –40°C to +180°C
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 30 pcs
2. Brand FAG
3. Item number 6208-2Z-L069-C3 FAG
4. Also known as 0388970400030
   6208-2Z/C3
   6208-2Z-C3

5. EAN 4047643104388
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.372

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 17800
2. Radial Dynamic Load Rating Cr (N) 31000
3. Limiting speed (n G) 10400
4. Reference speed (n ϑr) 9300
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 62..-2Z, single row, cf. DIN 625-1
