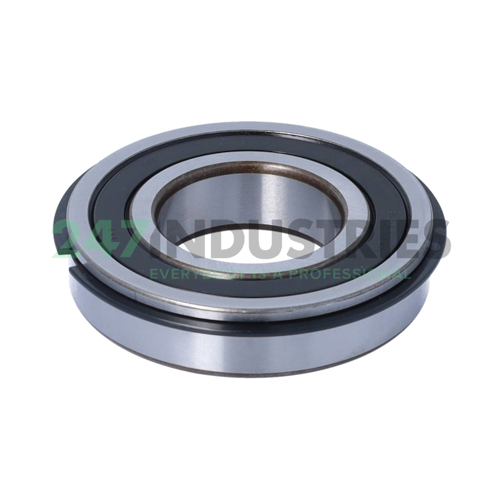

6208-2RSR-NR FAG

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 80
3. Width (B) MM 18
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.7087

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing
2. NR Snap Ring Groove In Bearing Outer Ring And Appropriate Snap Ring

Technical details

1. Availability 75 pcs
2. Brand FAG
3. Item number 6208-2RSR-NR FAG
4. Also known as 0694503820000

5. EAN 4047643230957
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.359

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification NR - Groove and Snap Ring
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Downloads and links

1. Link to manufacturer Link to manufacturer
