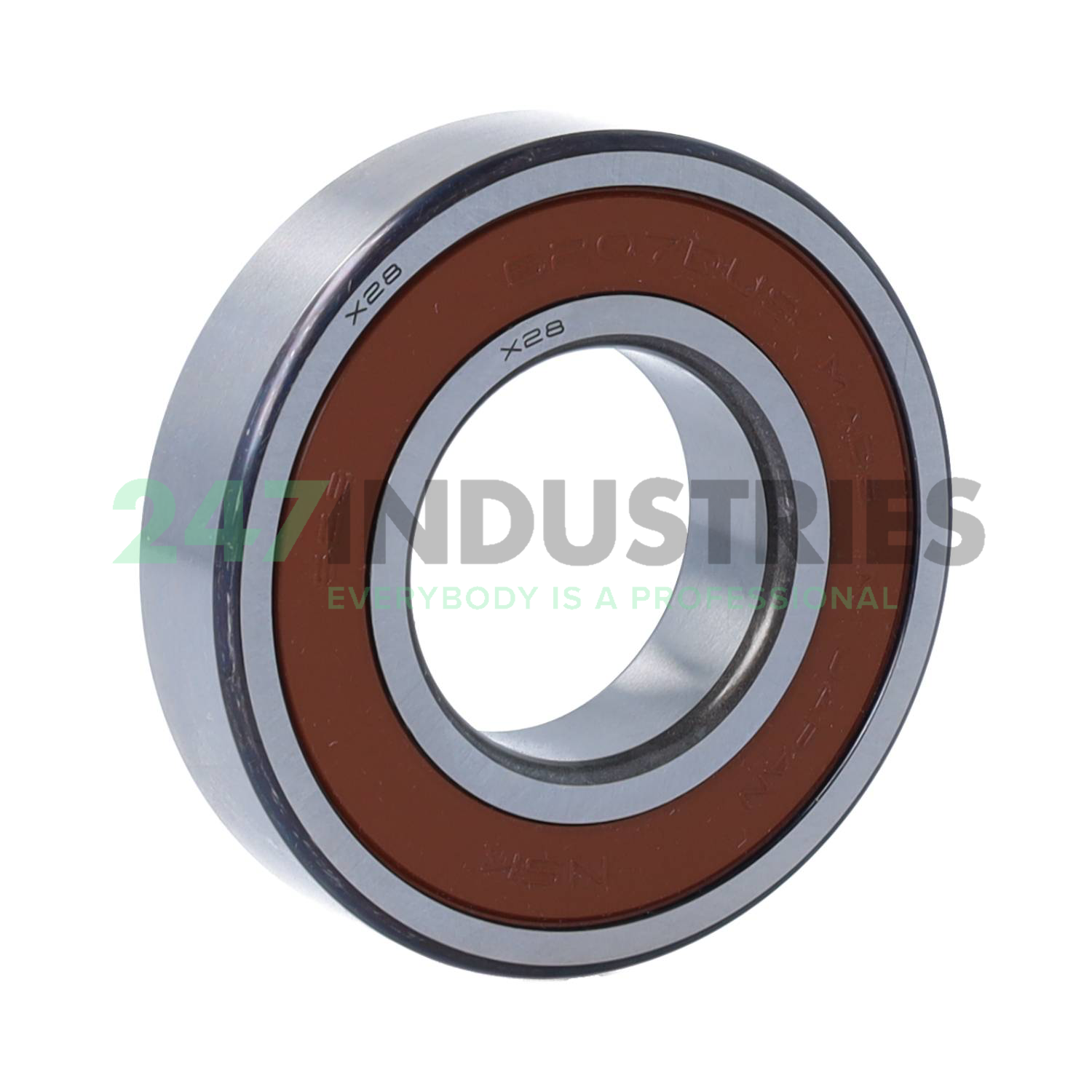

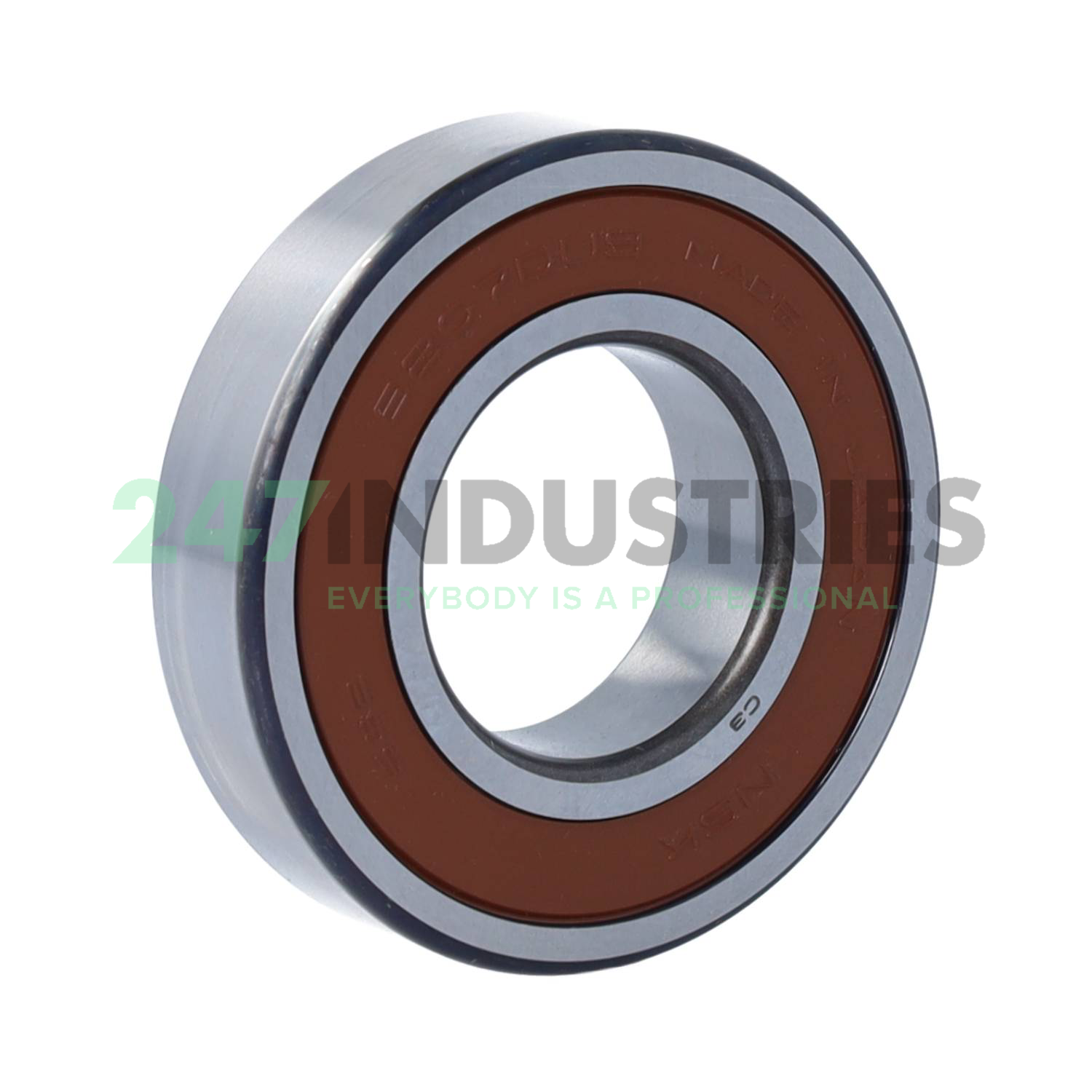

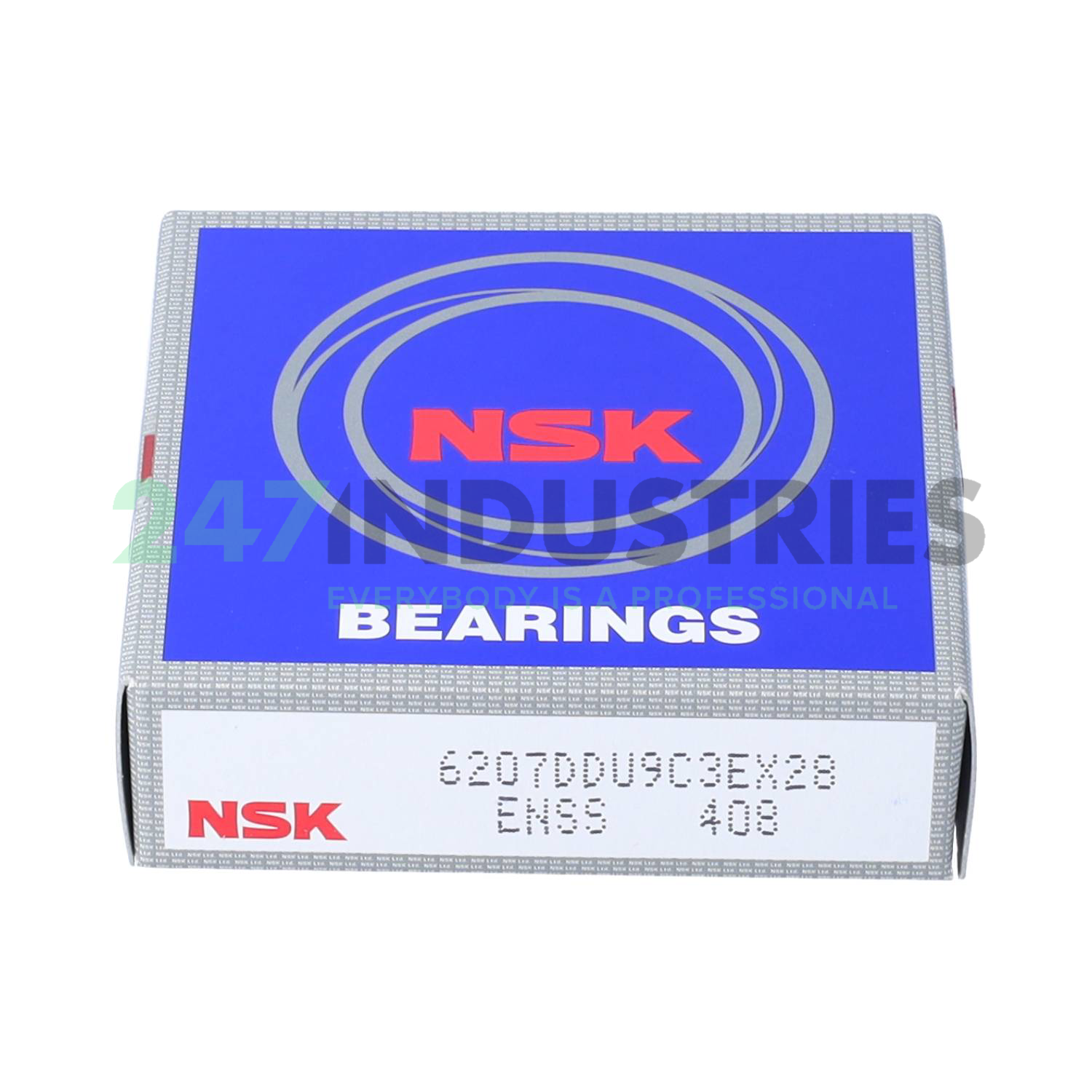

6207DDU9C3EX28 NSK

All dimensions

1. Inner (d) MM 35,00
2. Outer (D) MM 72,00
3. Width (B) MM 17,00
4. Inner (d) Inch 1.3780
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.6693

Suffix description

1. DDU9 Silicone Seals For Low And High Temperatures (-70 ~ 200ºC), Colour Of The Seal Is Brick Red
2. C3E Internal Clearance Larger Than Normal. Electric Motor Grade
3. X28 Inner And Outer Ring Heat Stabilized To 200°C

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 6207DDU9C3EX28 NSK
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.294

Product Properties

1. Bore C - Cylindrical Bore
2. Seal DDU9
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization S1 - Temperatures up to 200 °C
9. Special Treatment No Special Treatment
