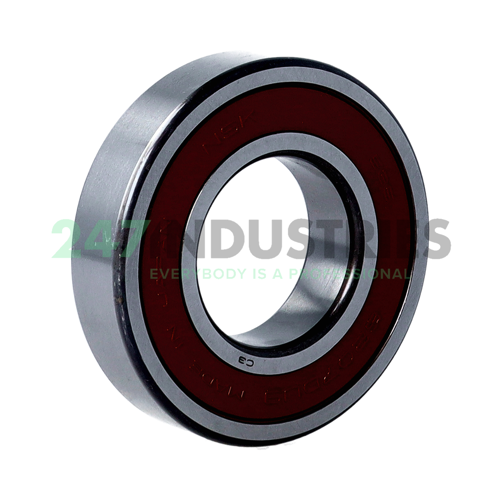

6207DDU9C3EX28 ENSS5 NSK

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 72
3. Width (B) MM 17
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.6693

Suffix description

1. DDU9 Silicone Seals For Low And High Temperatures, -70 ~ 200ºC), Colour Of The Seal Is Brick Red
2. C3E Internal Clearance Larger Than Normal. Electric Motor Grade
3. X28 Inner And Outer Ring Heat Stabilized To 200°C
4. ENS Lubricant, Temperature Range -40 ~ 160°C, Peak +180°C
5. S Standard Fill

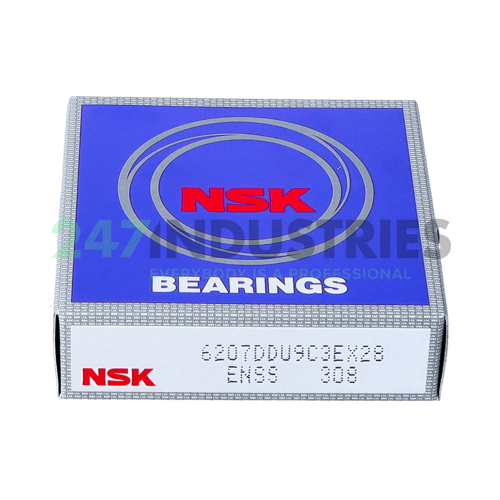

6. 5 Standard Single Pack. Bearings In Polythene Bags Or Hizex Film Are Placed In Individual Cardboard Boxes. The Individual Boxes Are Then Placed In A Cardboard Outer Carton And Polystrene Filled

Technical details

1. Availability 3 pcs
2. Brand NSK
3. Item number 6207DDU9C3EX28 ENSS5 NSK
4. EAN 00029176712197
5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.294

Product Properties

1. Bore C - Cylindrical Bore
2. Seal DDU9
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Higher and Lower Temperature Grease
8. Heat Stabilization S1 - Temperatures up to 200 °C
9. Special Treatment No Special Treatment
