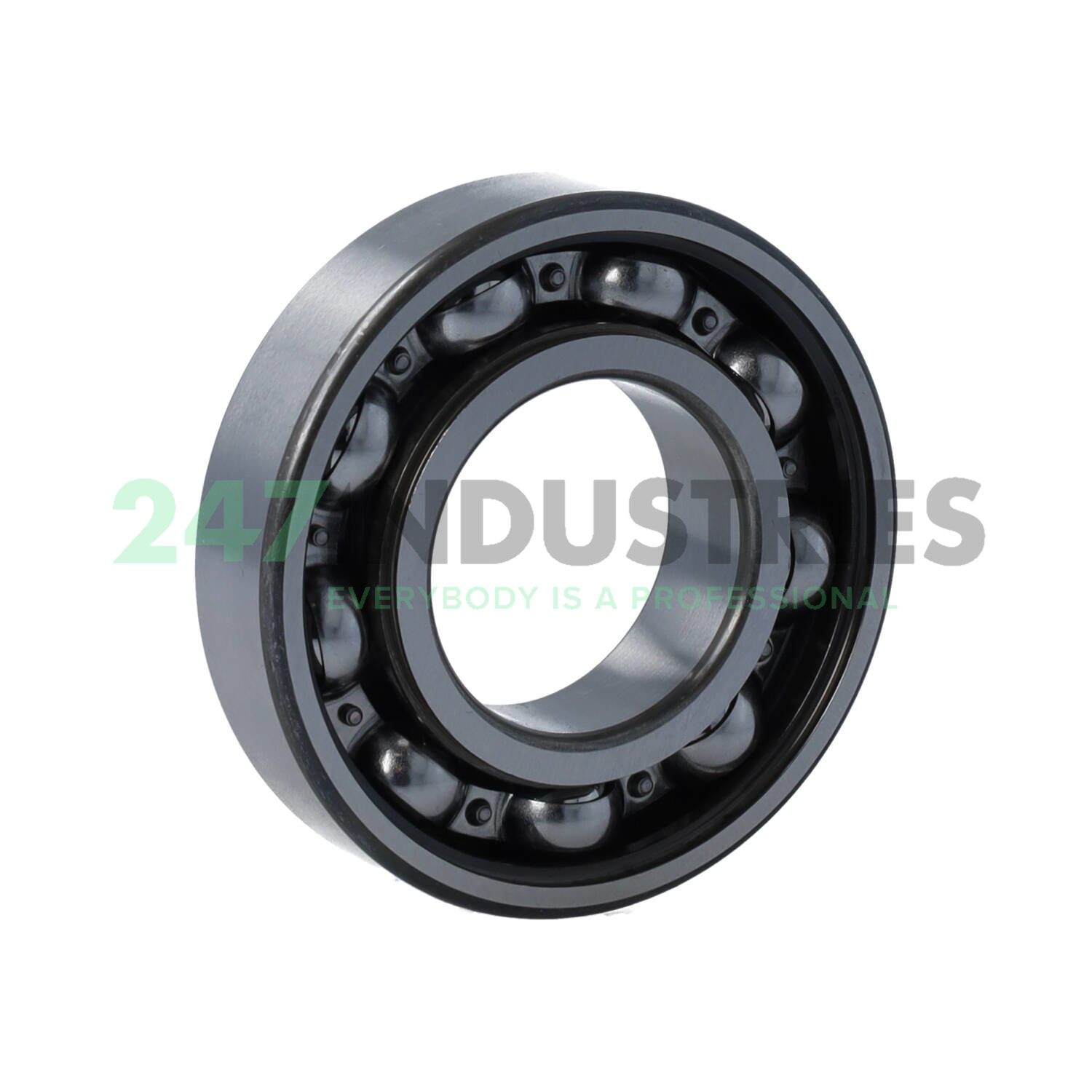

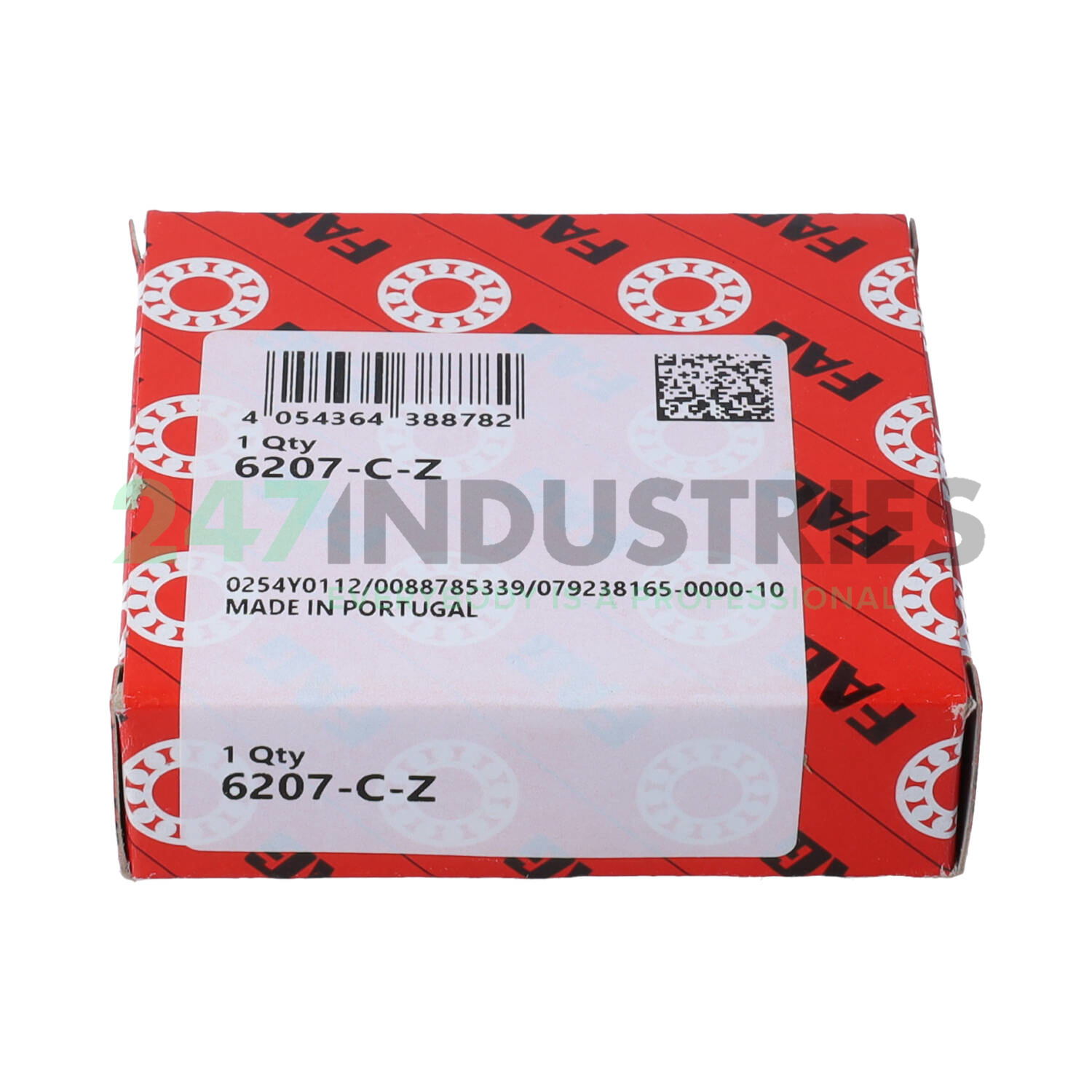

6207-C-Z FAG

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 72
3. Width (B) MM 17
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.6693
7. Width (b) mm 17

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
3. >V 100% Identical Regardless Of Production Location

Technical details

1. Availability 64 pcs
2. Brand FAG
3. Item number 6207-C-Z FAG
4. Also known as 0792381650000
   3014719400000
   6207-Z

5. EAN 4054364388782
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.291

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 15400
2. Radial Dynamic Load Rating Cr (N) 28000
3. Limiting speed (n G) 15000
4. Reference speed (n ϑr) 11300
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 62..-C, single row, cf. DIN 625-1
