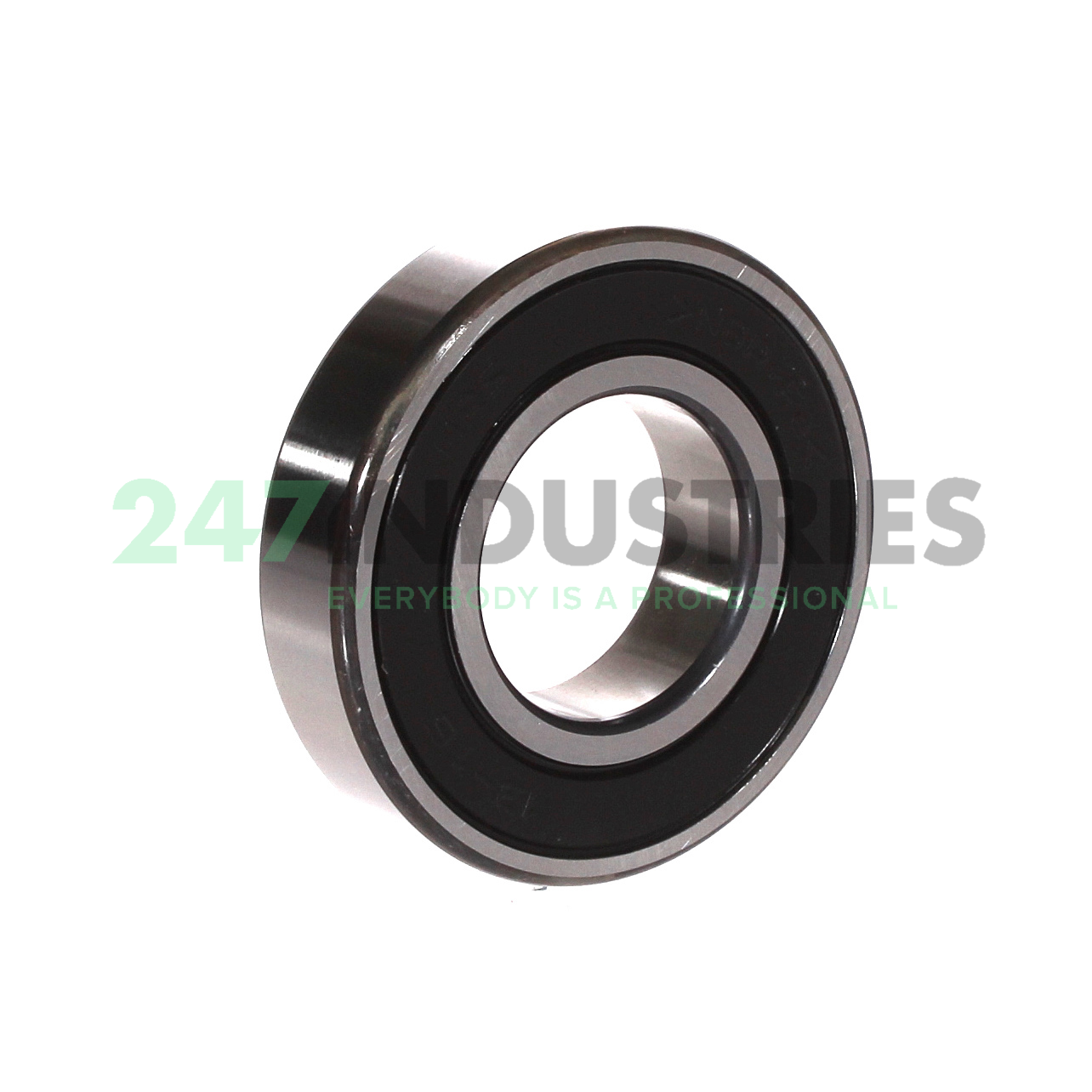

6207-C-HRS FAG

All dimensions

1. Width (b) mm 17,00

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. HRS High Speed/Low Friction Seal

Technical details

1. Availability 8 pcs
2. Brand FAG
3. Item number 6207-C-HRS FAG
4. Also known as 0841184740000
   3014719240000
   6207-HRS

5. EAN 4054364583309
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.269

Product Properties

1. Bore C - Cylindrical Bore
2. Seal RH - High Speed Low Friction Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) "15400.0000"
2. Limiting speed (n G) "8600.0000"
3. ECLASS number 23-05-08-01
4. ECLASS2 number 23-05-08-01

Downloads and links

1. Link to manufacturer Link to manufacturer
