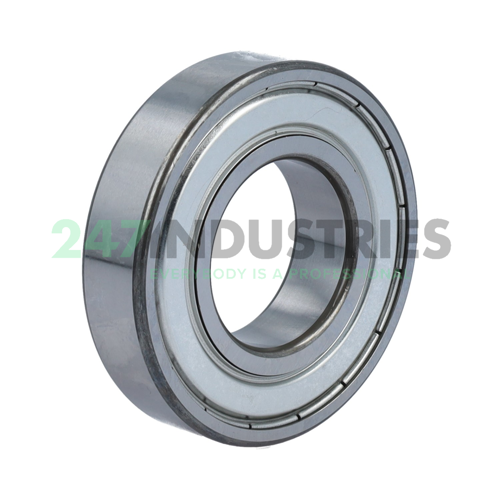

6207-C-2Z FAG

All dimensions

1. Inner (d) MM 35,00
2. Outer (D) MM 72,00
3. Width (B) MM 17,00
4. Inner (d) Inch 1.3780
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.6693
7. Width (b) mm 17,00

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. 2Z Gap Seals On Both Sides

Technical details

1. Availability 432 pcs
2. Brand FAG
3. Item number 6207-C-2Z FAG
4. Also known as 0789827310000
   3014719320000
   6207-2Z

5. EAN 4047643293556
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.294

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 15400
2. Radial Dynamic Load Rating Cr (N) 28000
3. Basic static load rating, radial (C 0r) "15400.0000"
4. Limiting speed (n G) "12700.0000"
5. Reference speed (n ϑr) "11300.0000"
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearing 62..-C-2Z, single row, cf. DIN 625-1
