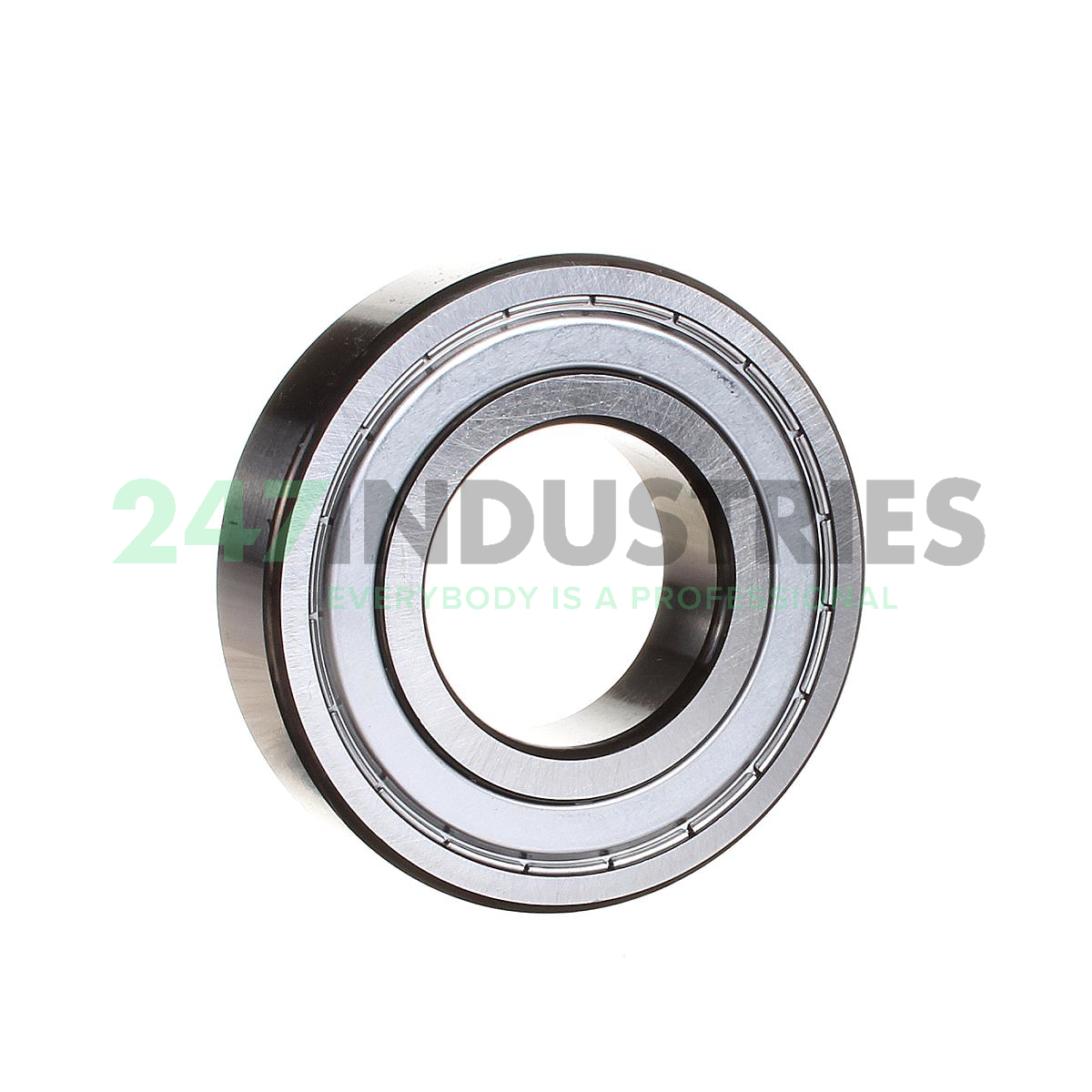

6207-2Z-P5-J22R FAG

All dimensions

1. Inner (d) MM 35,00
2. Outer (D) MM 72,00
3. Width (B) MM 17,00

Suffix description

1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
2. P5 Dimensional And Running Accuracy To ISO Tolerance Class 5
3. J22R Made In Korea

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 6207-2Z-P5-J22R FAG
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.294

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision P5 Precision (Higher than P6)
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
