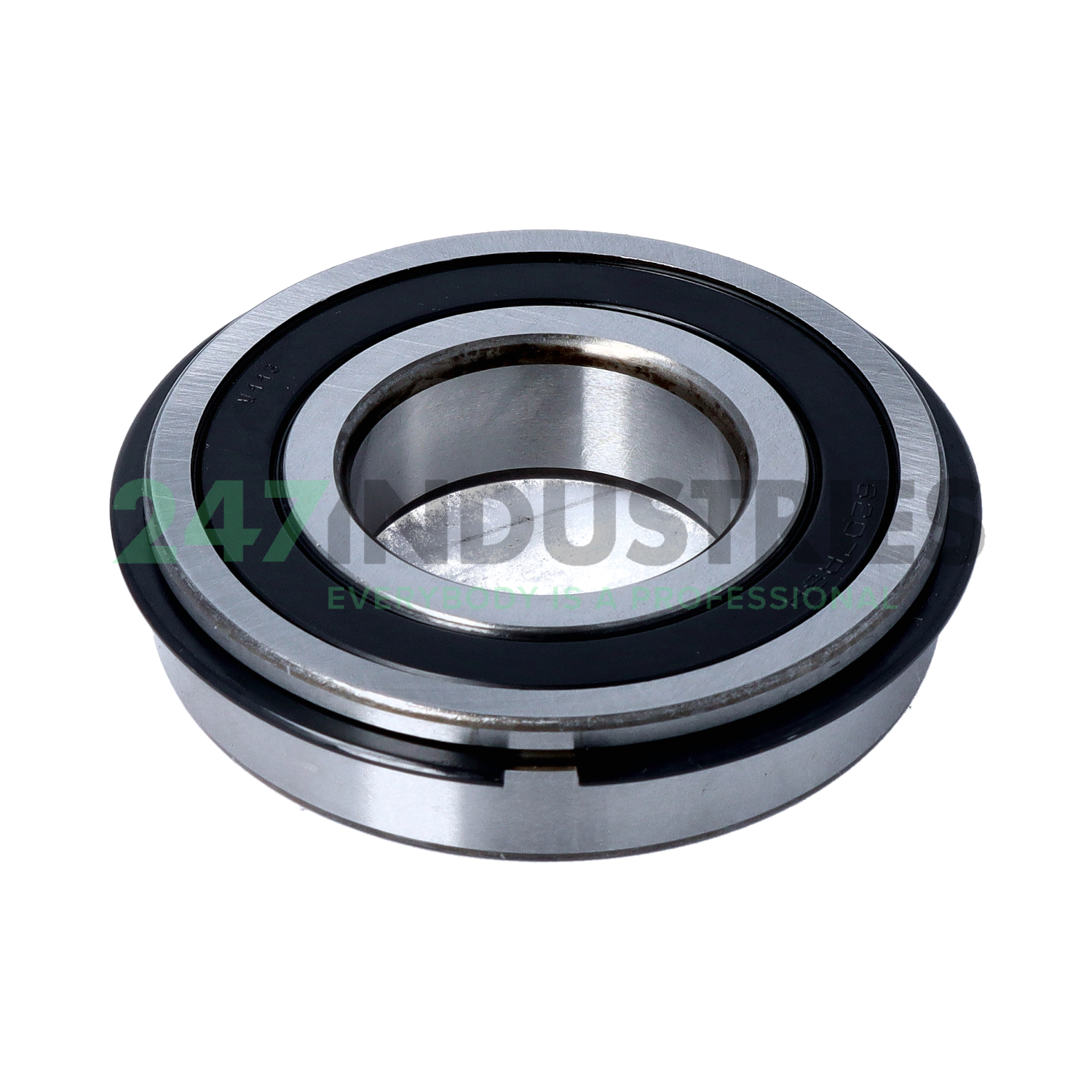

6207-2RSR-NR-C3 FAG

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 72
3. Width (B) MM 17
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.6693

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing
2. NR Snap Ring Groove In Bearing Outer Ring And Appropriate Snap Ring
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 43 pcs
2. Brand FAG
3. Item number 6207-2RSR-NR-C3 FAG
4. Also known as 0659136630030

5. EAN 4012802506853
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.294

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification NR - Groove and Snap Ring
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. ECLASS number 23-05-08-01
2. ECLASS2 number 23-05-08-01

Downloads and links

1. Link to manufacturer Link to manufacturer
