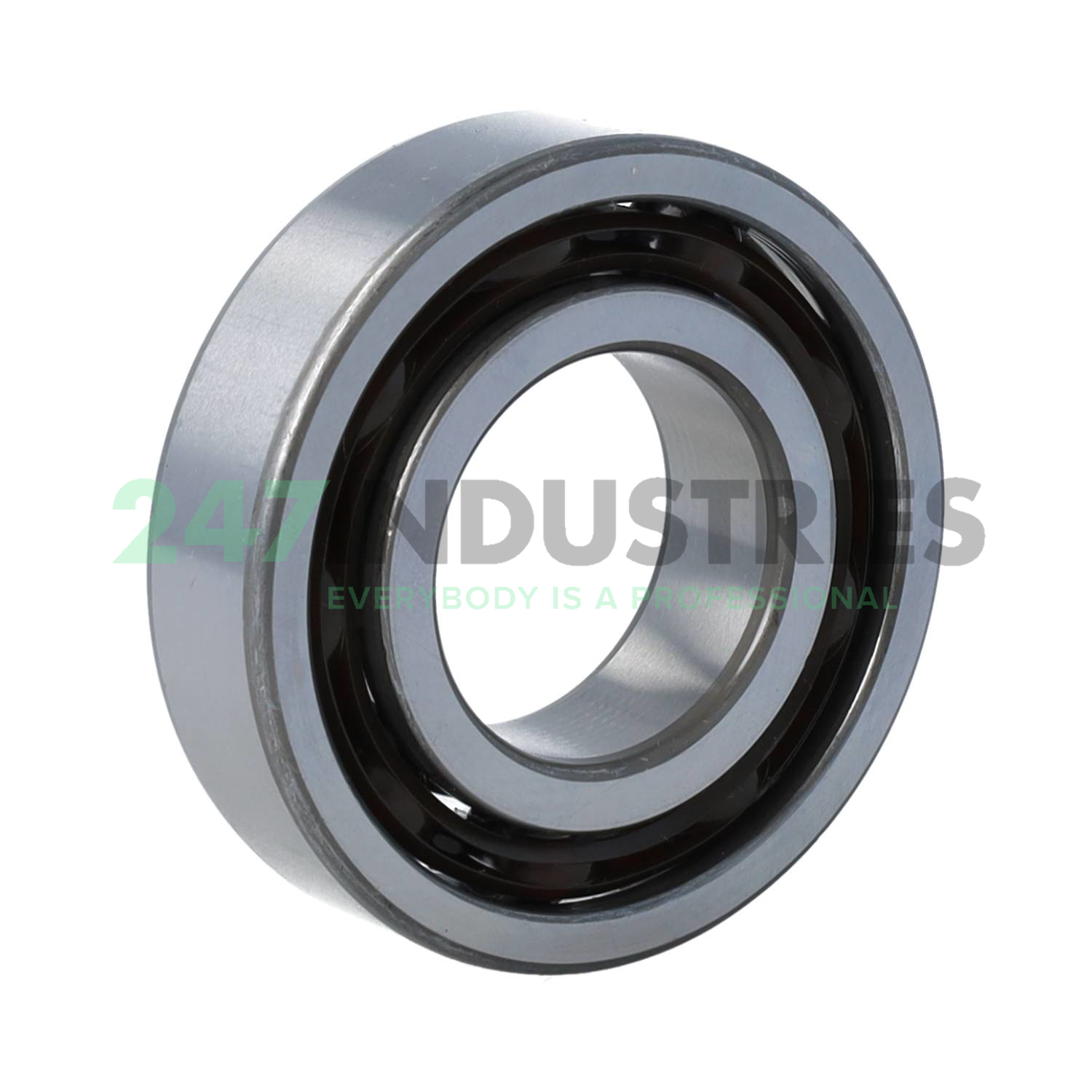

6206T2 X2 C3 P6 NTN

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 62
3. Width (B) MM 16
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6299

Suffix description

1. T2 Plastic Cage, Nylon Or Teflon
2. X2 Special Chamfer
3. C3 Internal Clearance Greater Than Normal
4. P6 Dimensional And Running Accuracy To ISO Tolerance Class 6 (Better Than Normal)

Technical details

1. Availability 1 pc
2. Brand NTN
3. Item number 6206T2 X2 C3 P6 NTN
4. Also known as 6206-TB-P6-C3

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.18

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type TB - Hard Fiber Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision P6 Precision (Higher than Standard)
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
