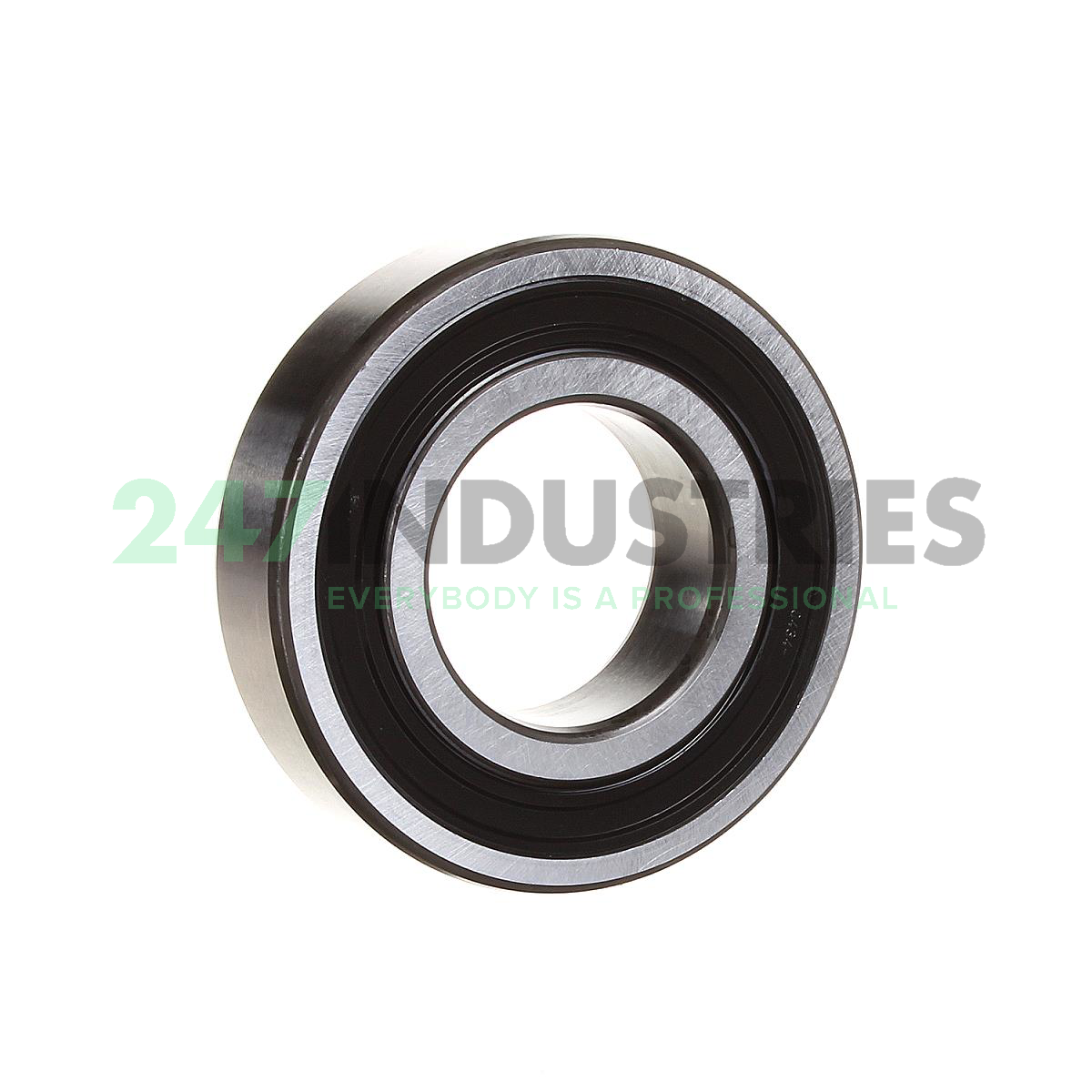

6206SEE A50 SNR

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 62
3. Width (B) MM 16
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6299

Suffix description

1. S Spherical Outside Diameter
2. EE Two Rubber Seals
3. A50 Shielded Or Sealed Ball Bearing With Pressed Steel Cage

Technical details

1. Availability 0 pcs
2. Brand SNR
3. Item number 6206SEE A50 SNR
4. Also known as 1726206-2RS1
   206-NPP-B
   206-XL-NPP-B
   67206B.2RSR
   CS206LLU

5. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.188

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
