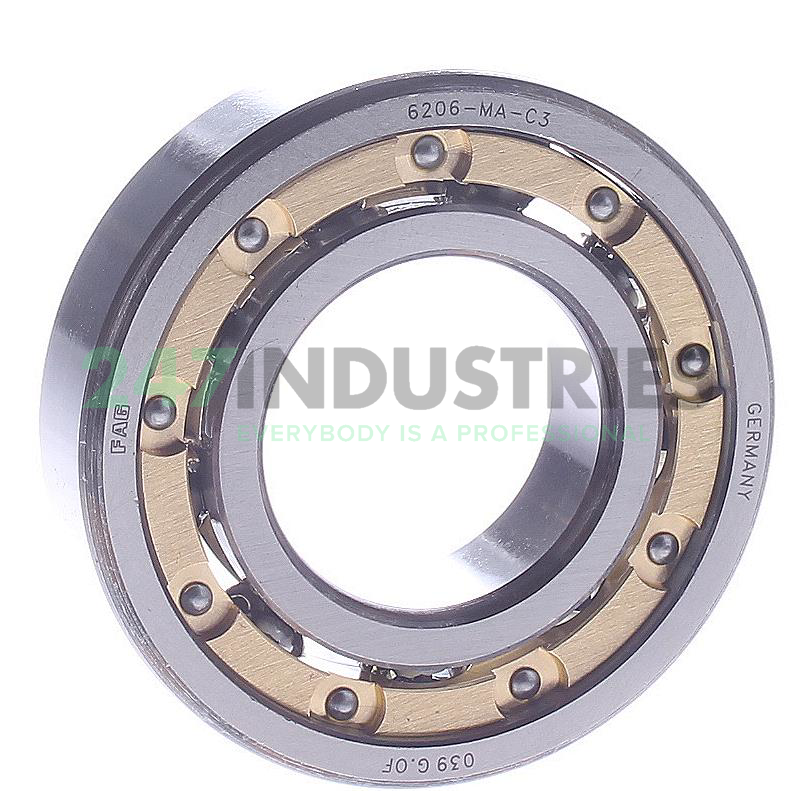

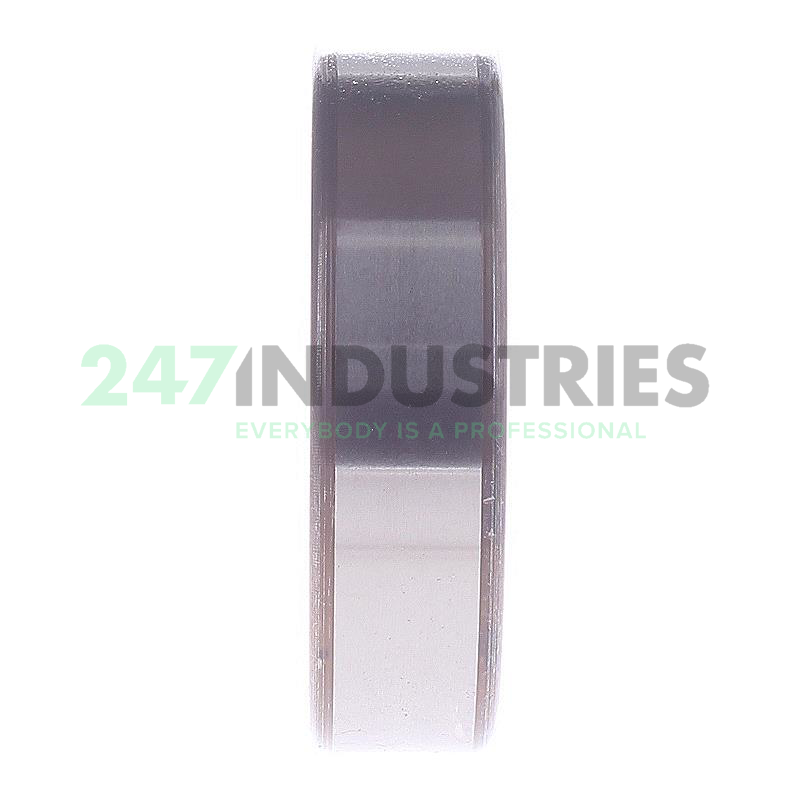

6206MA.C3 FAG

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 62
3. Width (B) MM 16
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6299

Suffix description

1. MA Machined Brass Cage, Outer Ring Guided
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 6206MA.C3 FAG
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.237

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type MA - Brass Cage, Centered on Outer Ring
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
