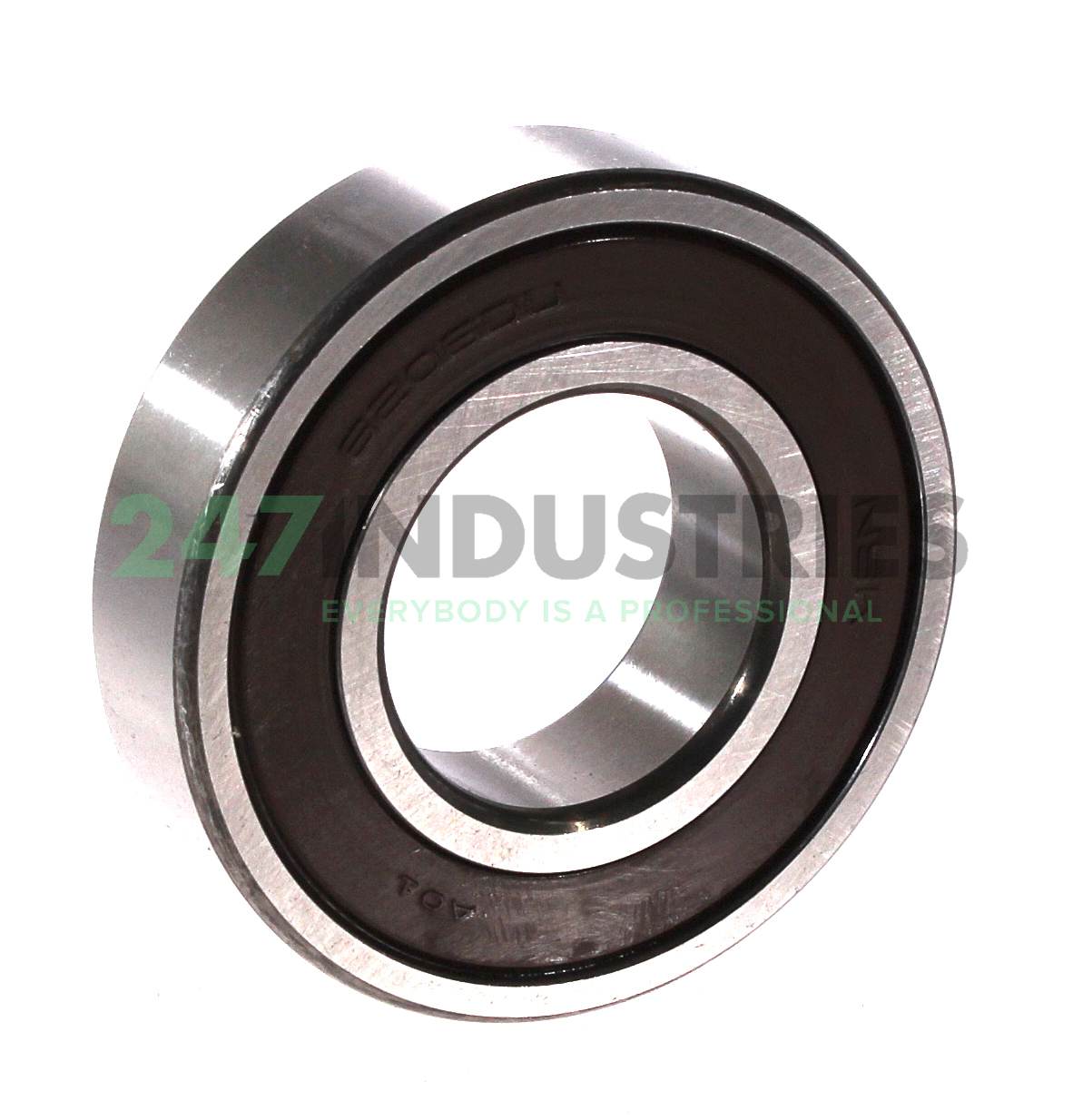

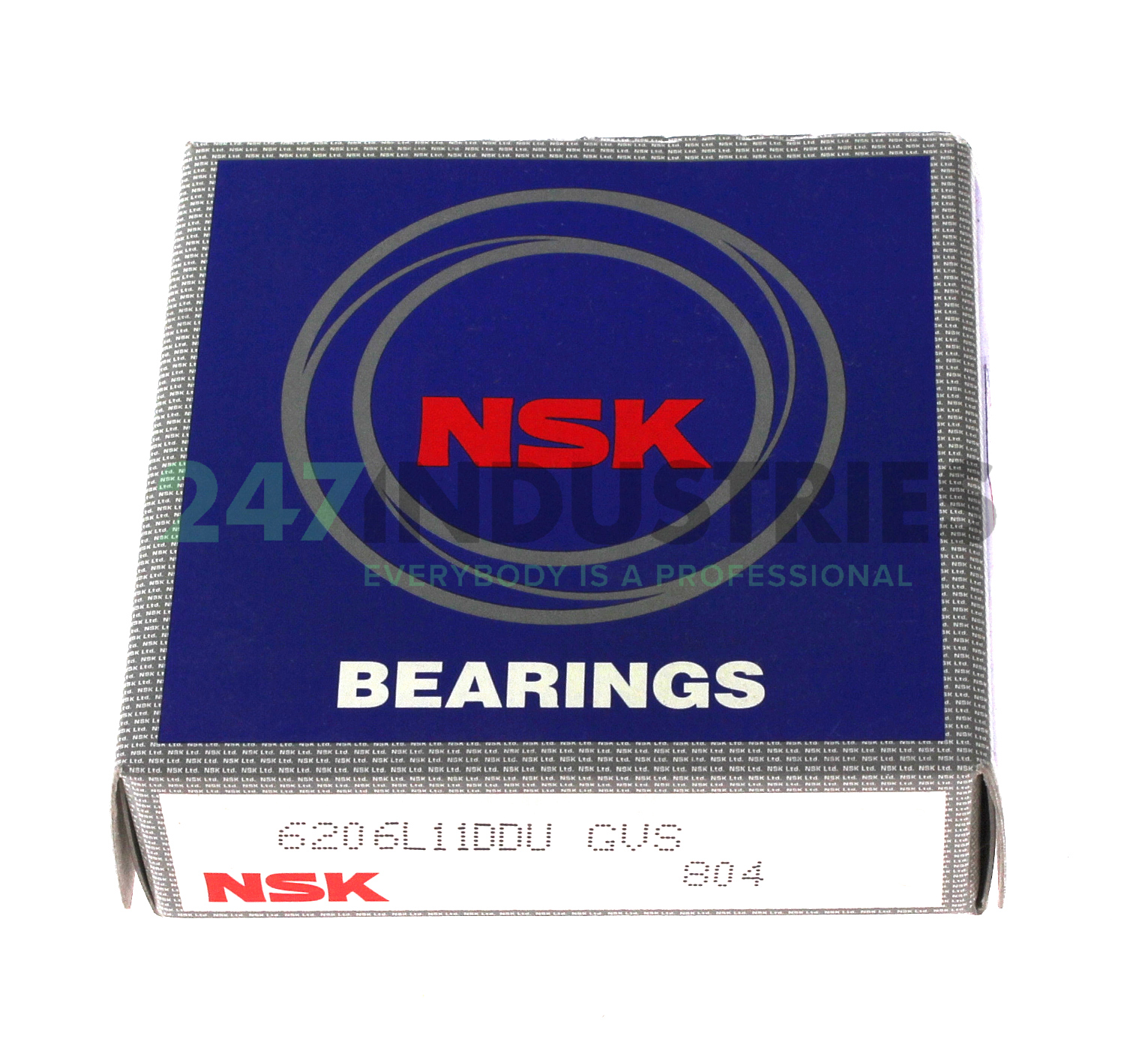

6206L11DDU GVS NSK

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 62
3. Width (B) MM 16
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6299

Suffix description

1. L11 Molded Oil™ General Use
2. DDU Rubber Seals At Each Side Of The Bearing
3. GVS Can Be Seen As The Same Designation As L11 (Molded Oil™ General Use)

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 6206L11DDU GVS NSK
4. Also known as 6206-2RS1/W64
   6206L11DDU

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.192

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Filled Solid Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
