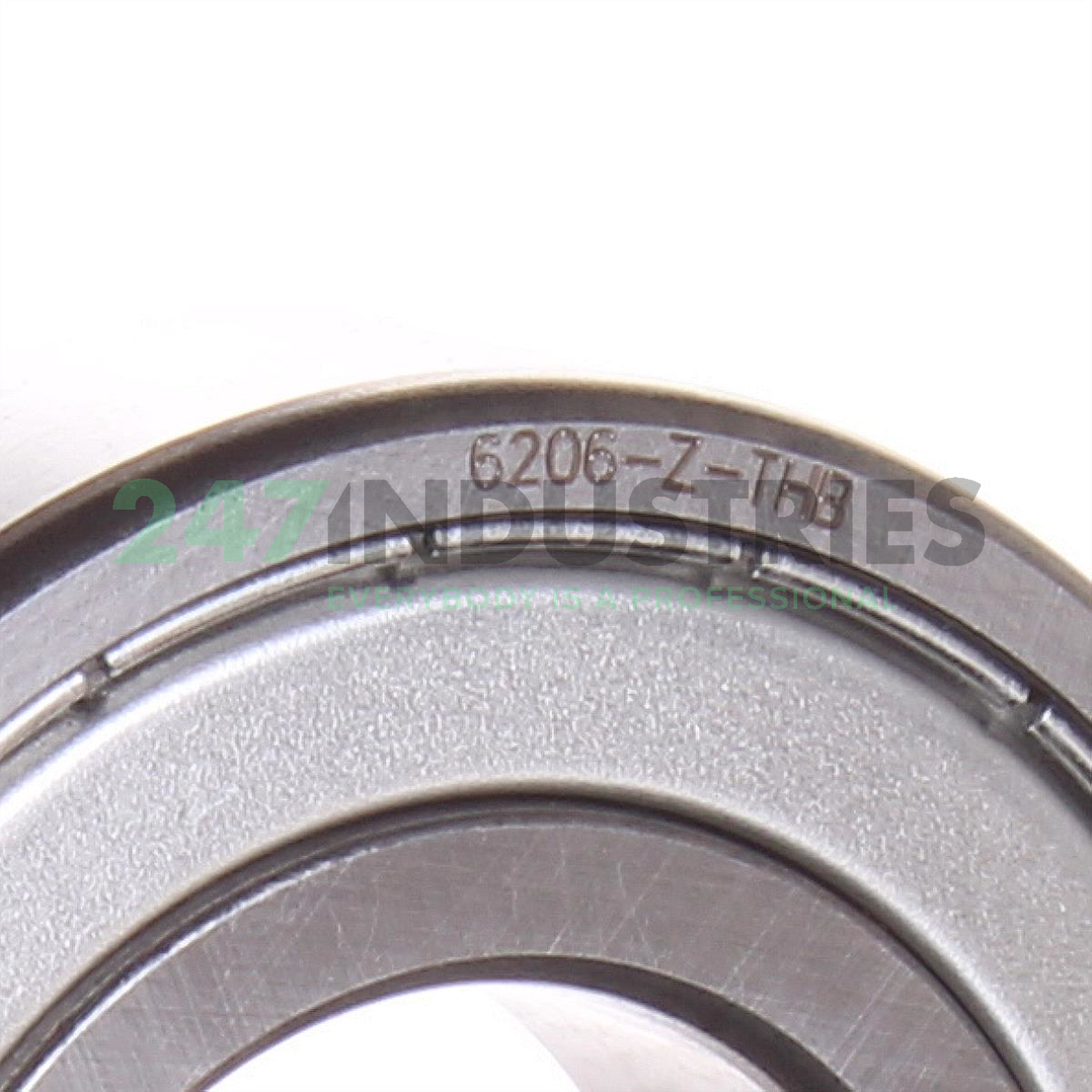

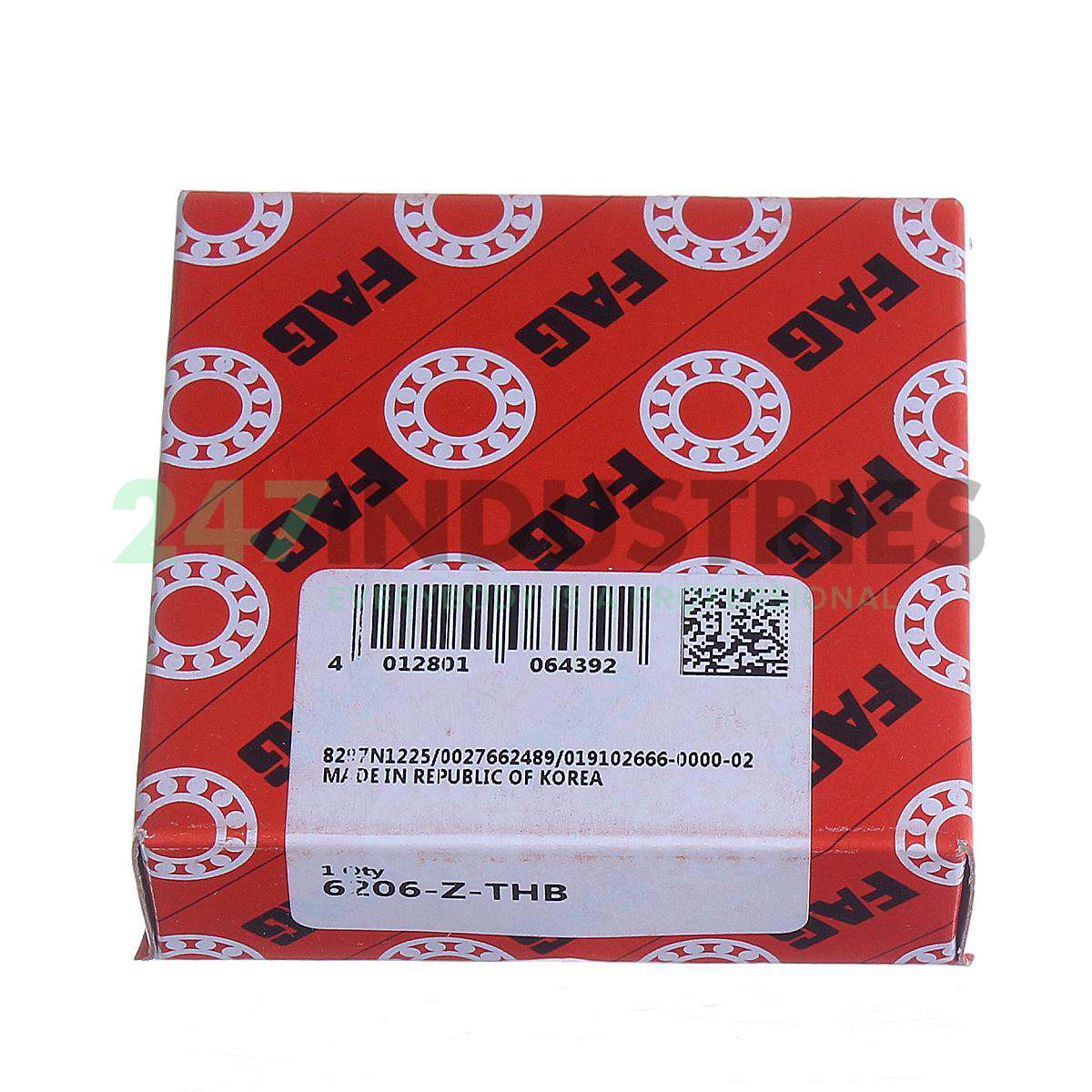

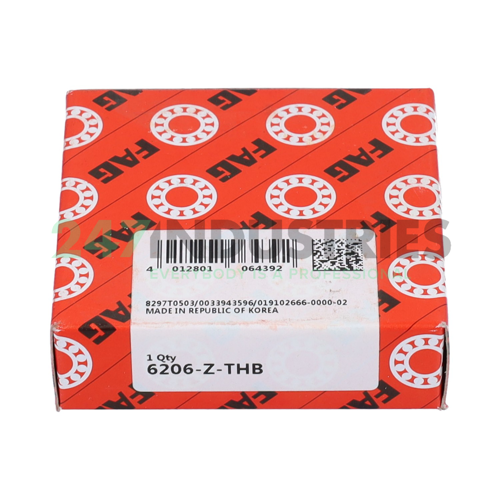

6206-Z-THB FAG

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 62

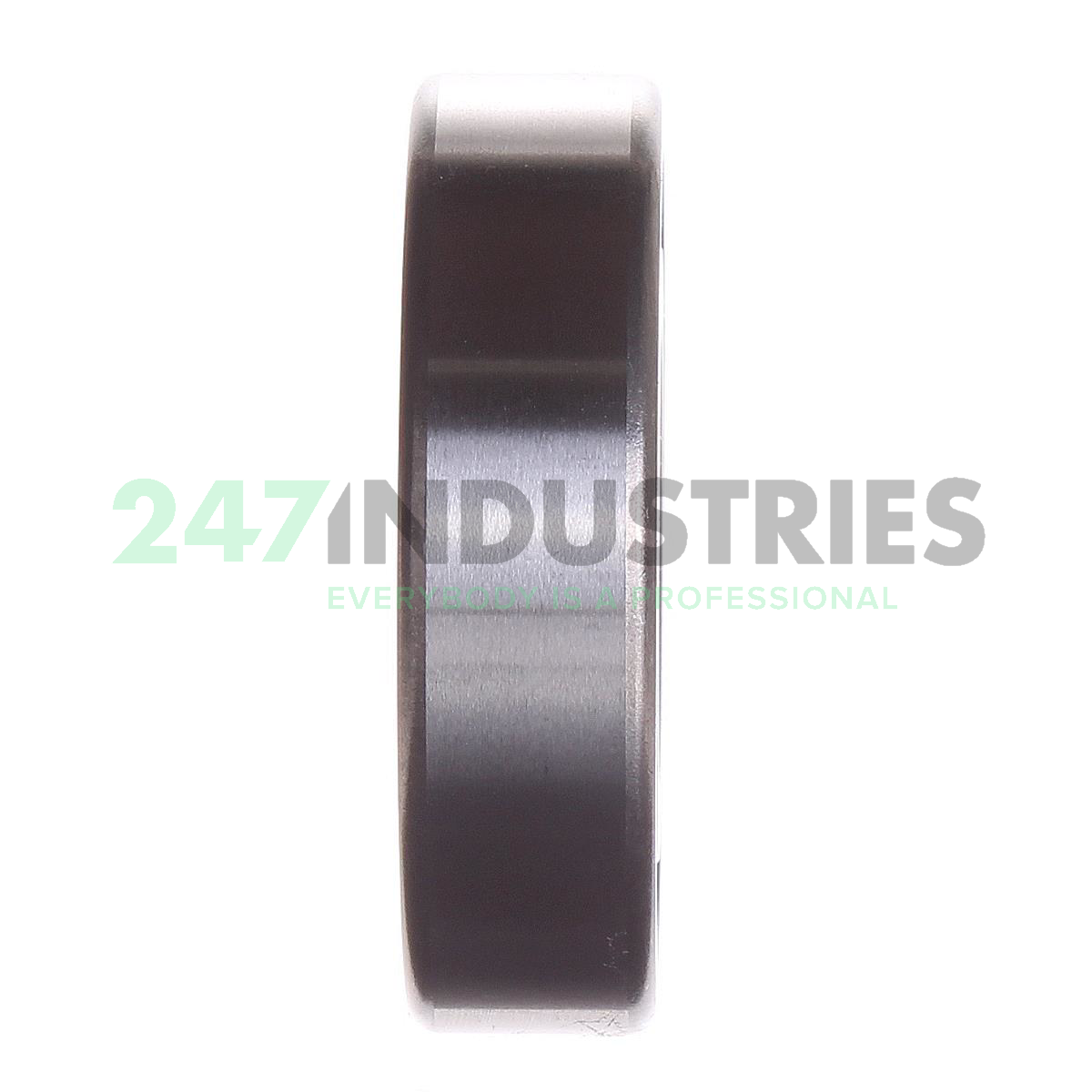

3. Width (B) MM 16
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6299

Suffix description

1. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing

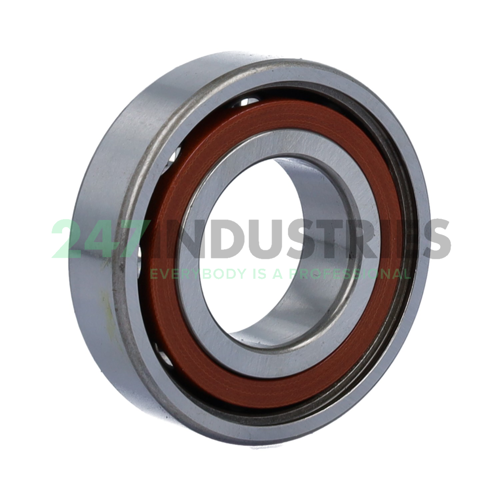

2. THB Machined Textile Laminated Phenolic Snap-Type Cage, Guidance By The Inner Ring

Technical details

1. Availability 30 pcs
2. Brand FAG
3. Item number 6206-Z-THB FAG
4. Also known as 0191026660000

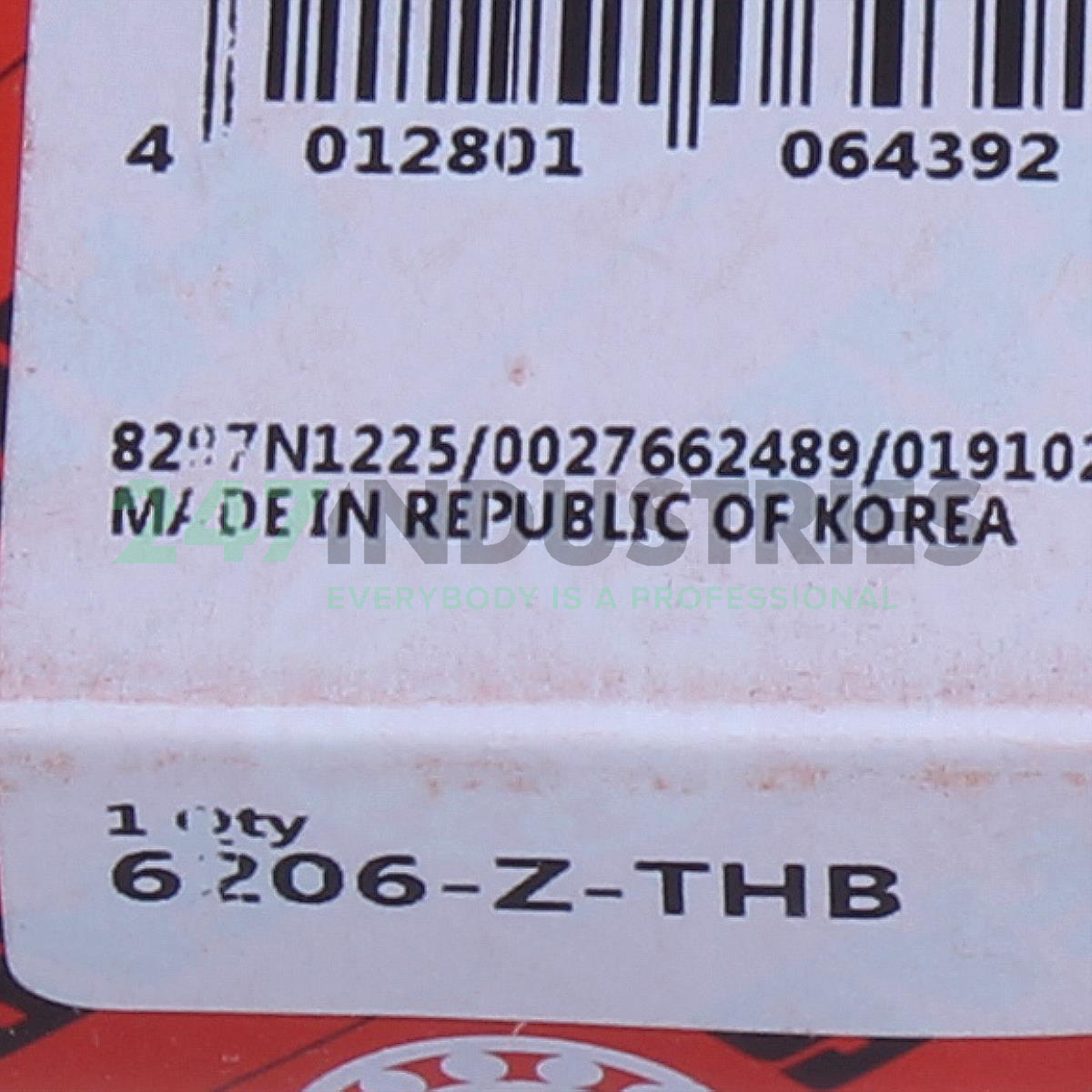

5. EAN 4012801064392
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.2

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type TB - Hard Fiber Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. ECLASS number 23-05-08-01
2. ECLASS2 number 23-05-08-01
