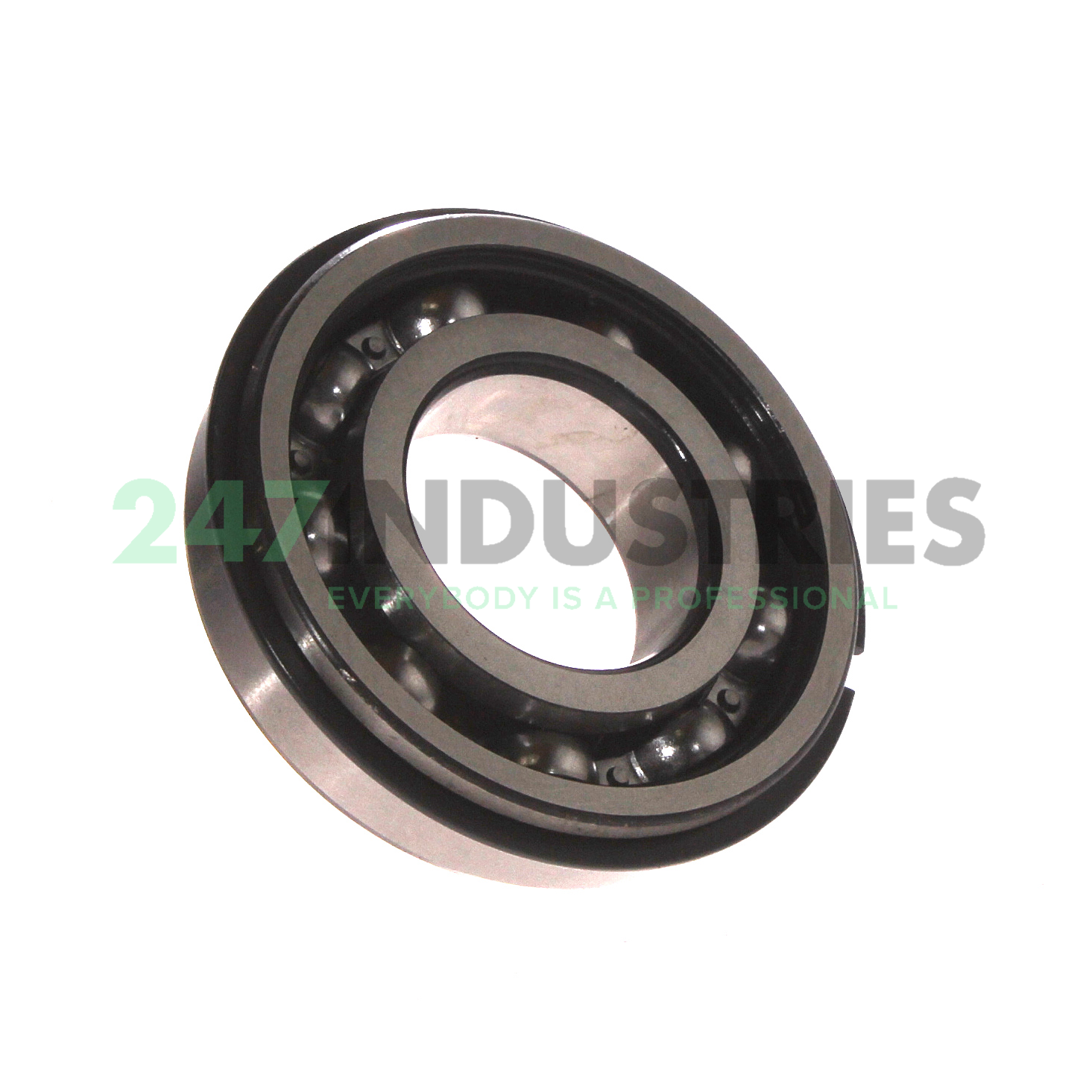

6206-Z-NR Timken

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 62
3. Width (B) MM 16
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6299

Suffix description

1. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
2. NR Snap Ring Groove In Bearing Outer Ring And Appropriate Snap Ring

Technical details

1. Availability 1 pc
2. Brand Timken
3. Item number 6206-Z-NR Timken
4. EAN 0013992159229
5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.2

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification NR - Groove and Snap Ring
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
