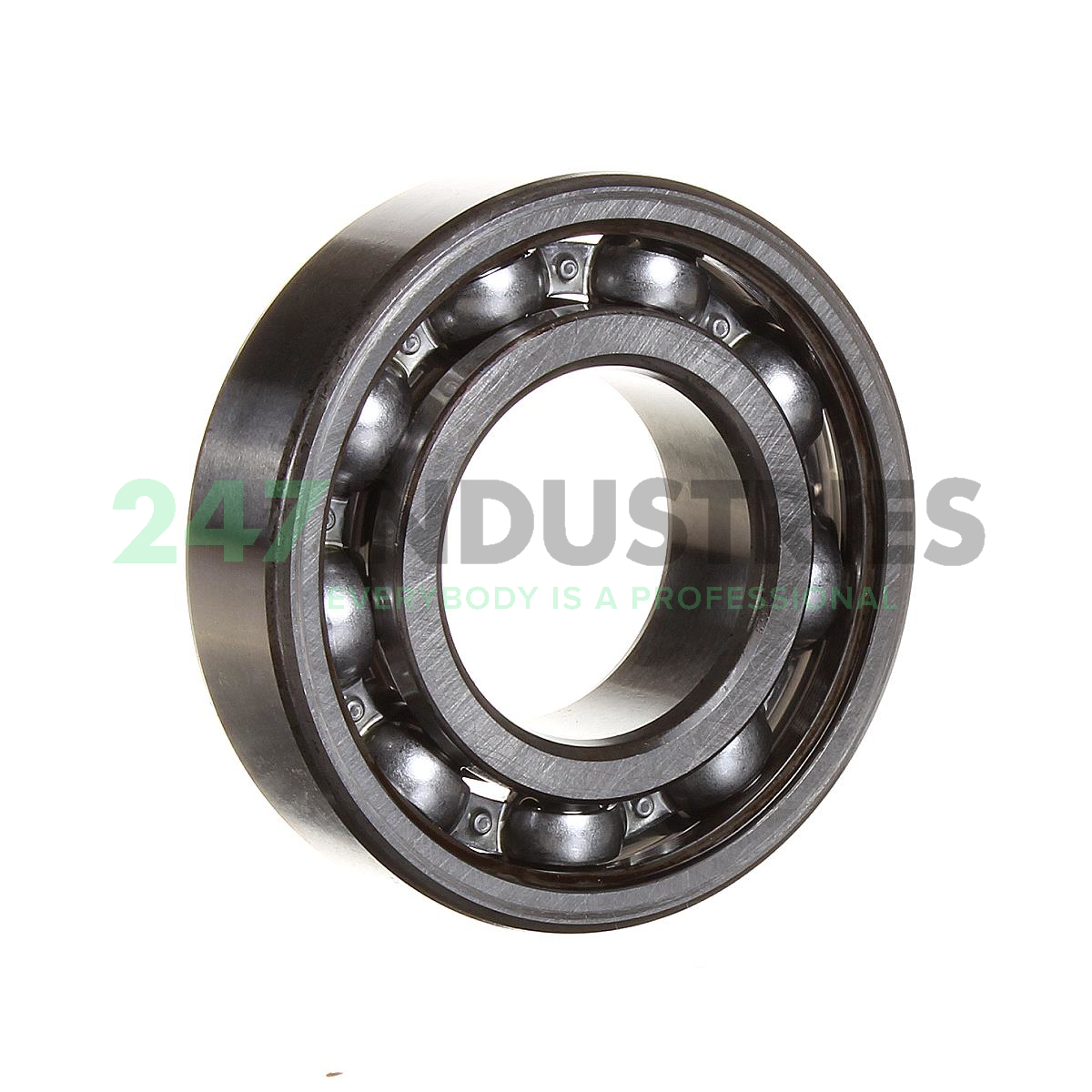

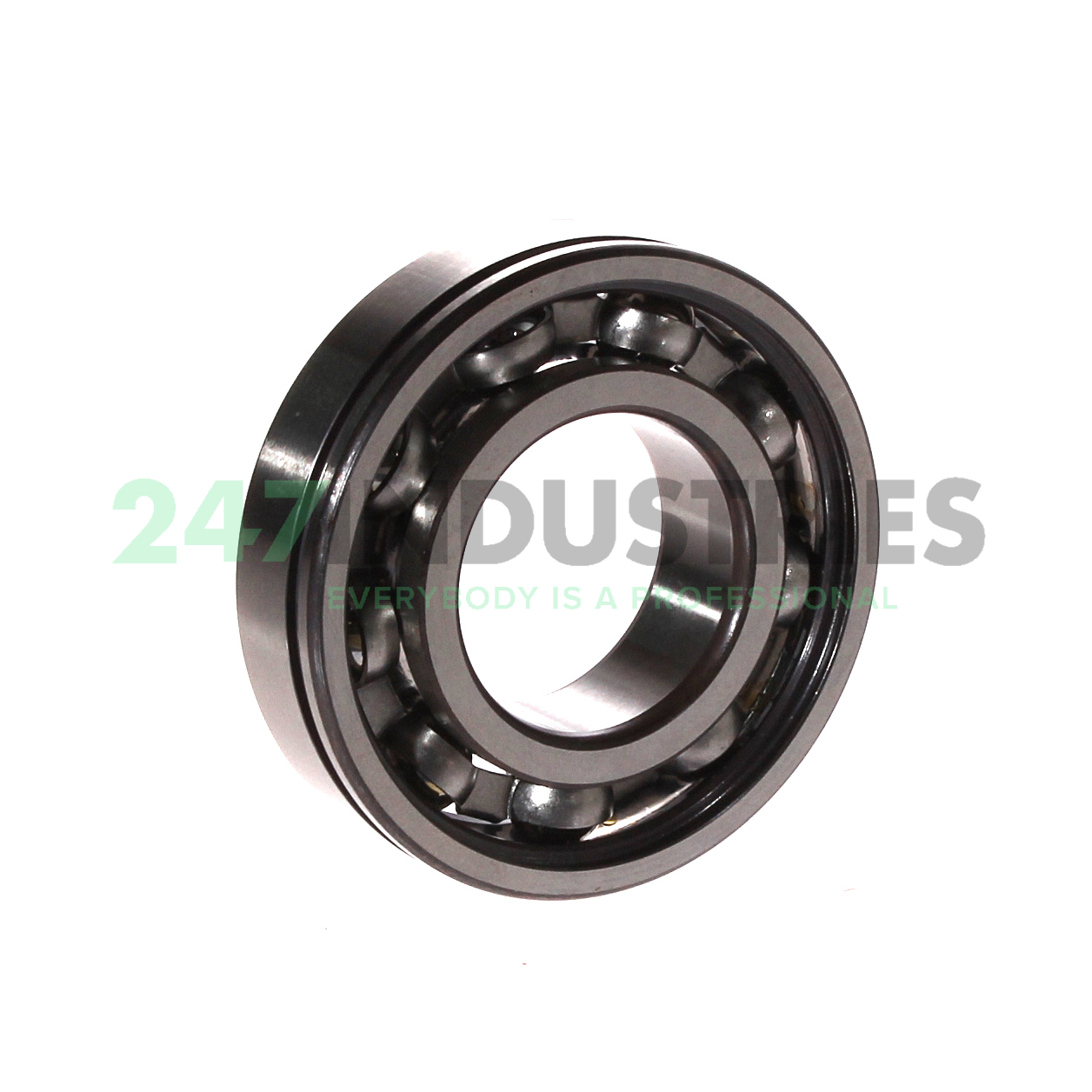

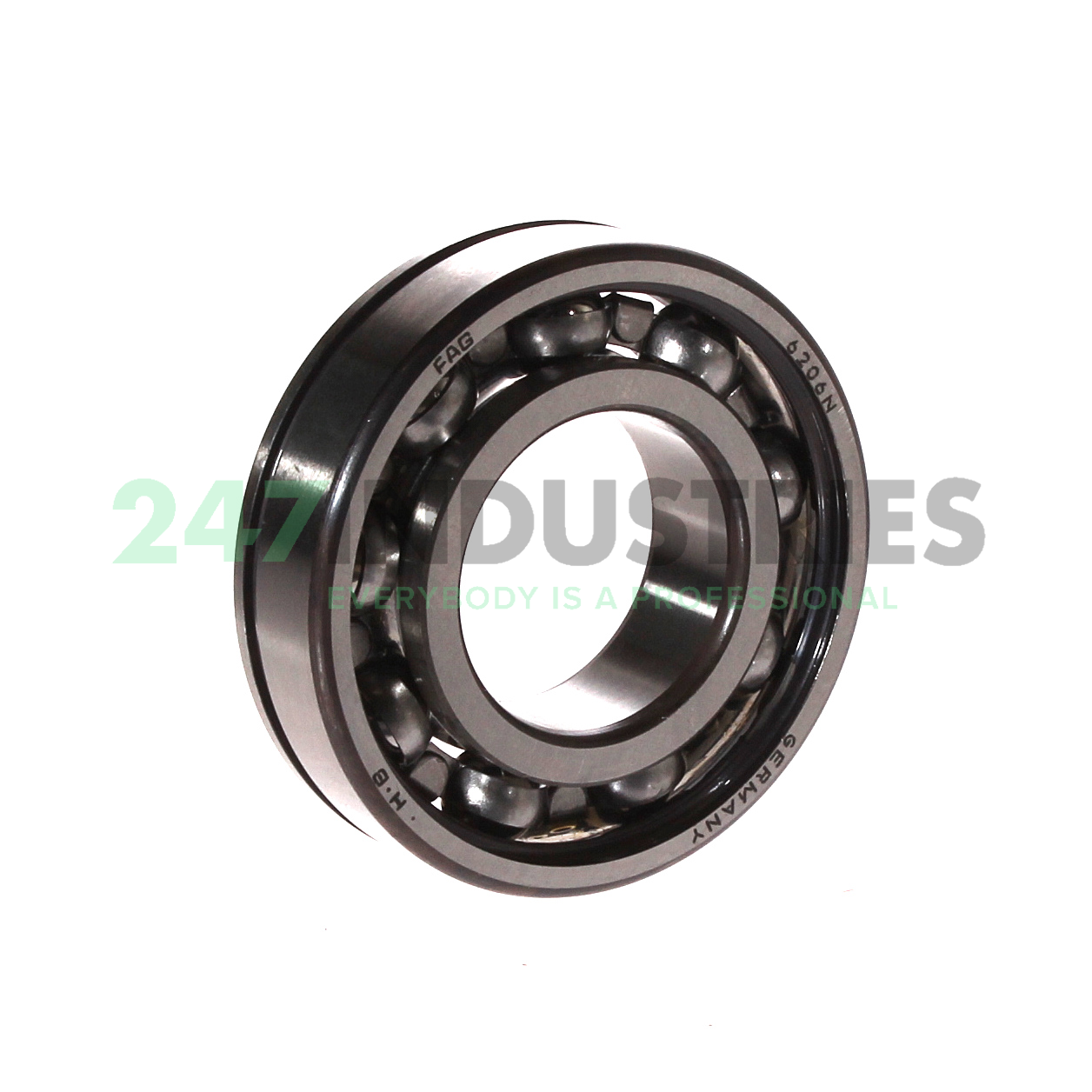

6206-N FAG

All dimensions

1. Inner (d) MM 30,00
2. Outer (D) MM 62,00
3. Width (B) MM 16,00
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6299
7. Width (b) mm 16,00

Suffix description

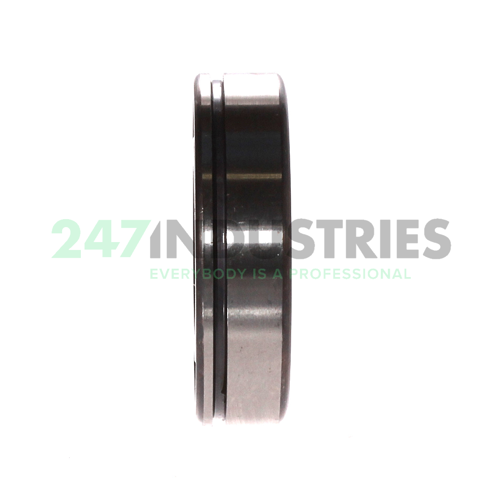

1. N Snap Ring Groove In The Outer Ring

Technical details

1. Availability 16 pcs
2. Brand FAG
3. Item number 6206-N FAG
4. Also known as 0167201300000

5. EAN 4012801064132
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.357

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification N - Snap Ring Groove in Outer Ring
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 11300
2. Radial Dynamic Load Rating Cr (N) 20700
3. Basic static load rating, radial (C 0r) "11300.0000"
4. Limiting speed (n G) "16200.0000"
5. Reference speed (n ϑr) "12000.0000"
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearing 62..-N, single row, cf. DIN 625-1
