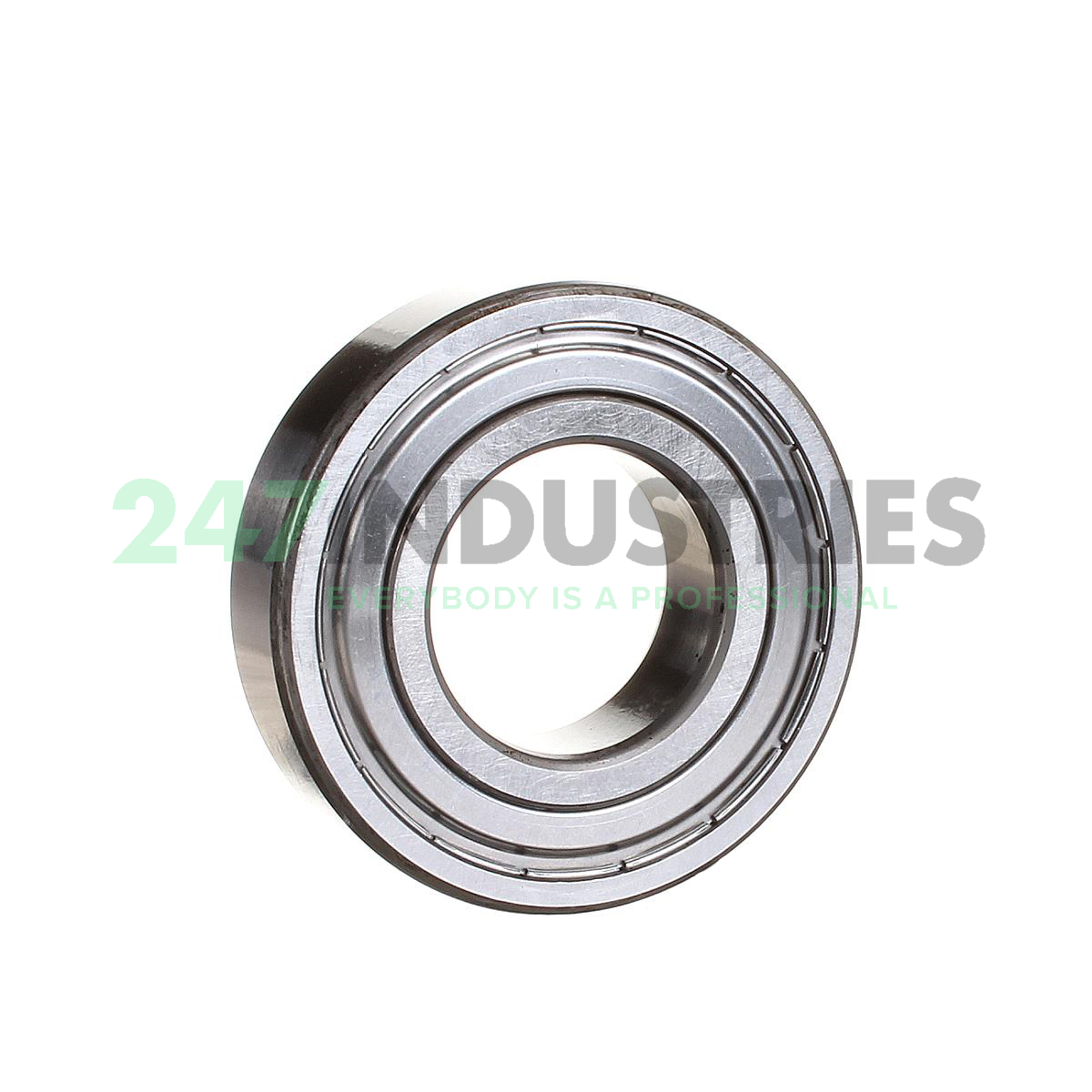

6206 2ZR C3 J11 G526 SWC

All dimensions

1. Inner (d) MM 30,00
2. Outer (D) MM 62,00
3. Width (B) MM 16,00
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6299

Suffix description

1. 2ZR Two Metallic Shields
2. C3 Internal Clearance Larger Than Normal
3. J11 Better Conservation
4. G526 Grease "Ultratherm 2000" - Operating Temperature -60 ~ 280°C

Technical details

1. Availability 0 pcs
2. Brand SWC
3. Item number 6206 2ZR C3 J11 G526 SWC
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.201

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Higher and Lower Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
