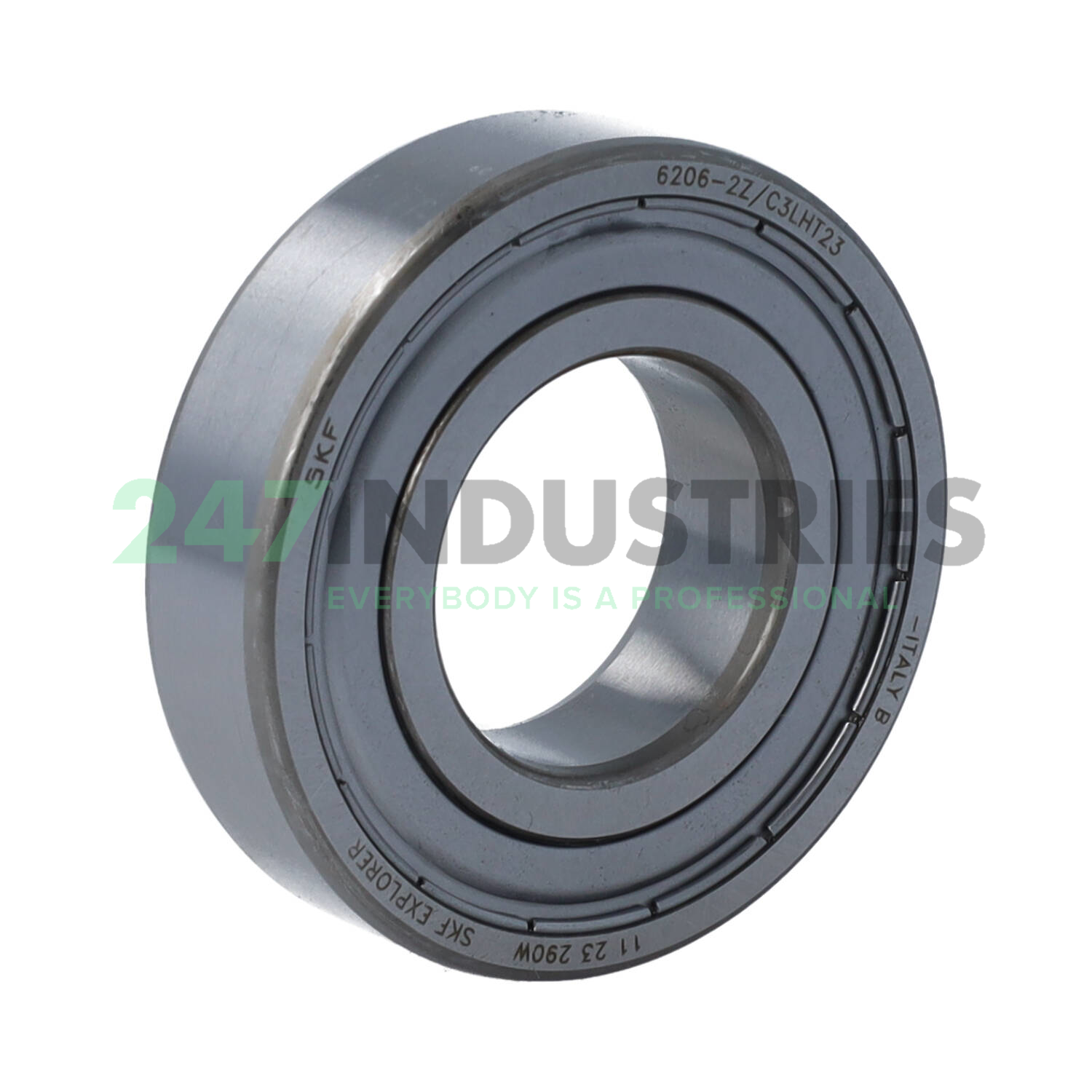

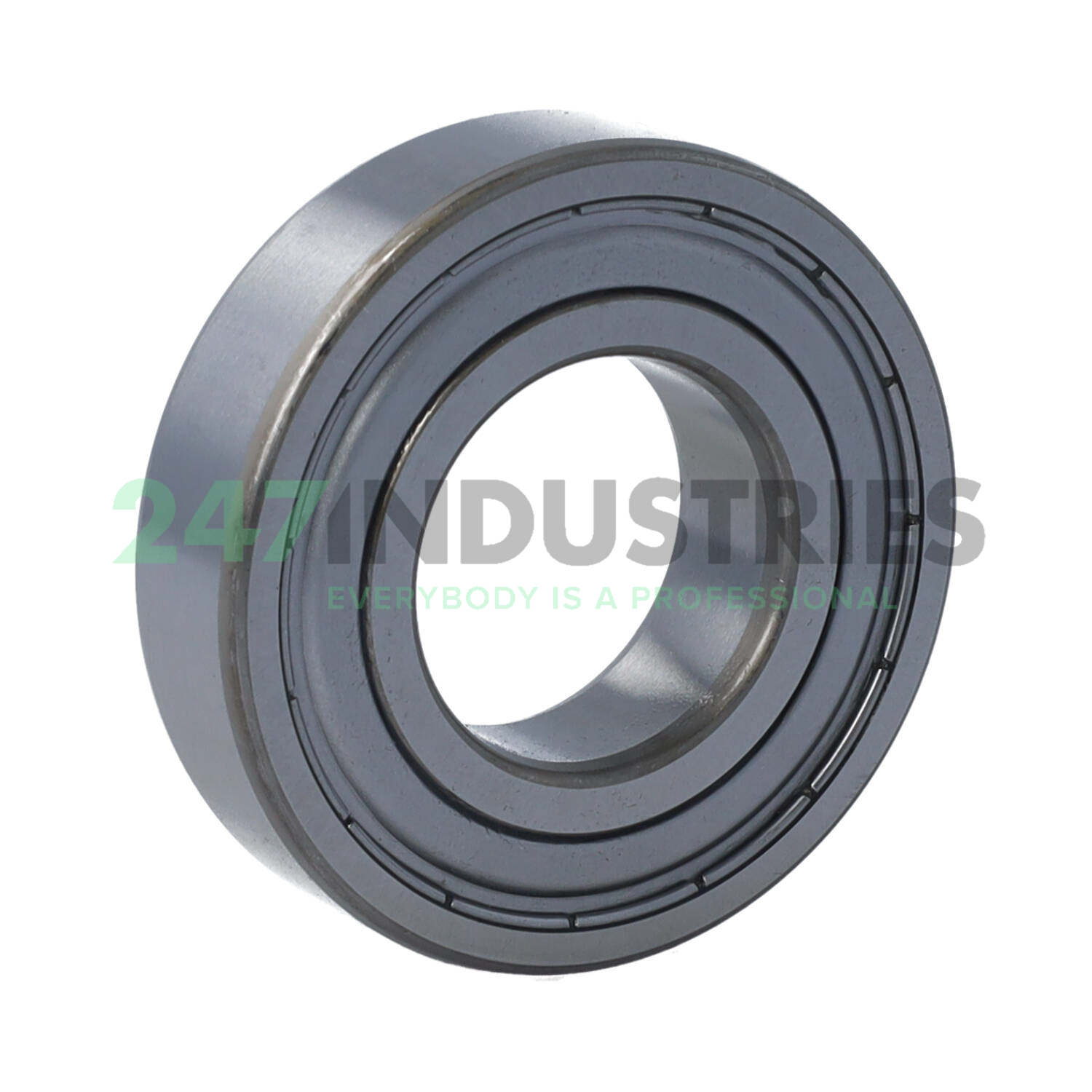

6206-2Z/C3LHT23 SKF

All dimensions

1. Inner (d) MM 30,00
2. Outer (D) MM 62,00
3. Width (B) MM 16,00
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6299

Suffix description

1. 2Z Shield Of Pressed Sheet Steel On Both Sides Of The Bearing
2. C3 Internal Clearance Larger Than Normal
3. LHT23 Lithium Grease, Wide Range, 26 cSt @ 40°C, Range -50 ~ 140°C. A Two-Figure Number Following LHT Identifies The Actual Grease

Technical details

1. Availability 17 pcs
2. Brand SKF
3. Item number 6206-2Z/C3LHT23 SKF
4. Also known as 6206-2Z/C3
   6206-2Z-C3
   6206ZZ C3

5. EAN 7316571403489
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.201

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication L - -50°C/+140°C
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
