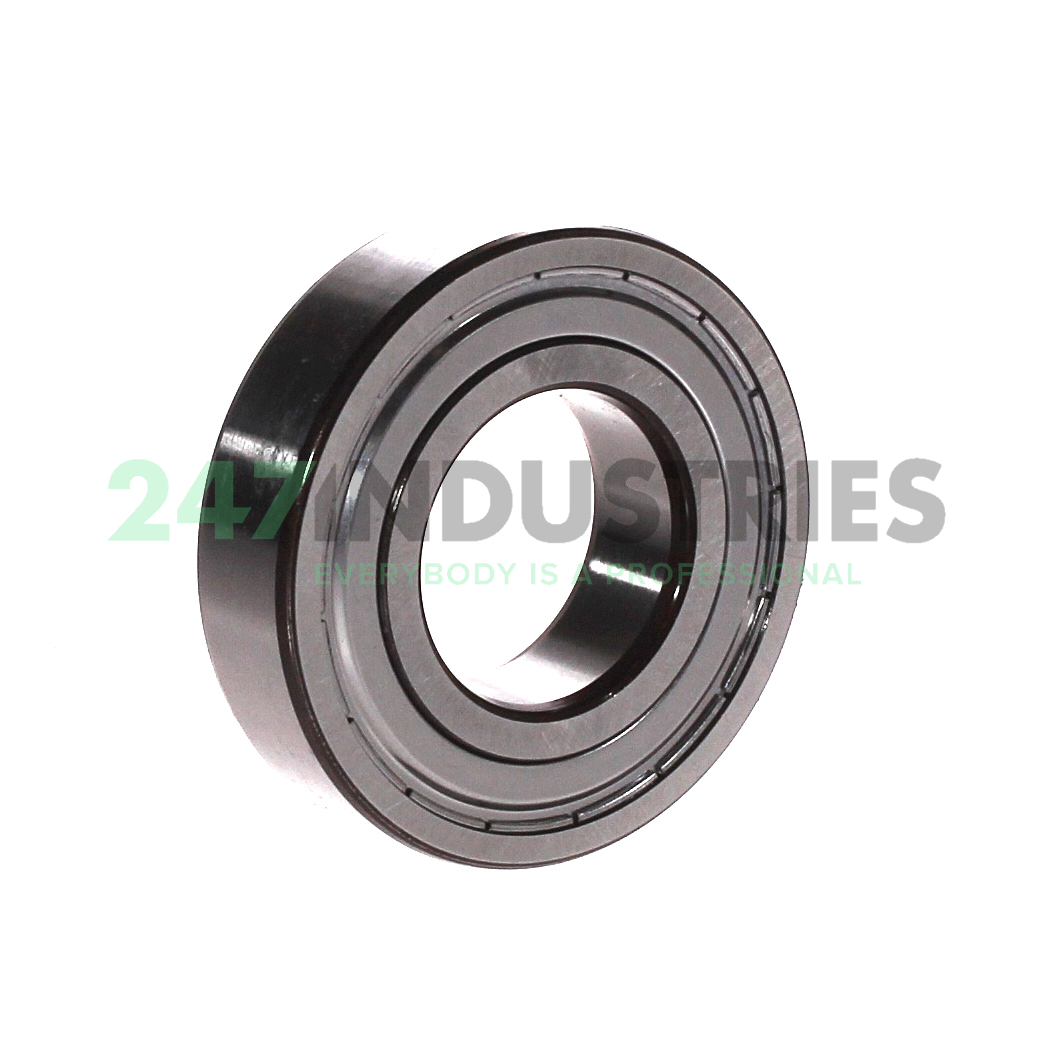

6206-2Z/C3GJN SKF

All dimensions

1. Inner (d) MM 30,00
2. Outer (D) MM 62,00
3. Width (B) MM 16,00
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6299

Suffix description

1. 2Z Shield Of Pressed Sheet Steel On Both Sides Of The Bearing
2. C3 Internal Clearance Larger Than Normal
3. GJN Grease With Polyurea Thickener Of Consistency 2 To The NLGI Scale For High Temperature, Range -30 ~ 150°C (Normal Filling Grade)

Technical details

1. Availability 0 pcs
2. Brand SKF
3. Item number 6206-2Z/C3GJN SKF
4. Also known as 6206-2Z/C3
   6206-2Z-C3
   6206ZZ C3

5. EAN 7316571541242
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.201

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication 2 - High Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
