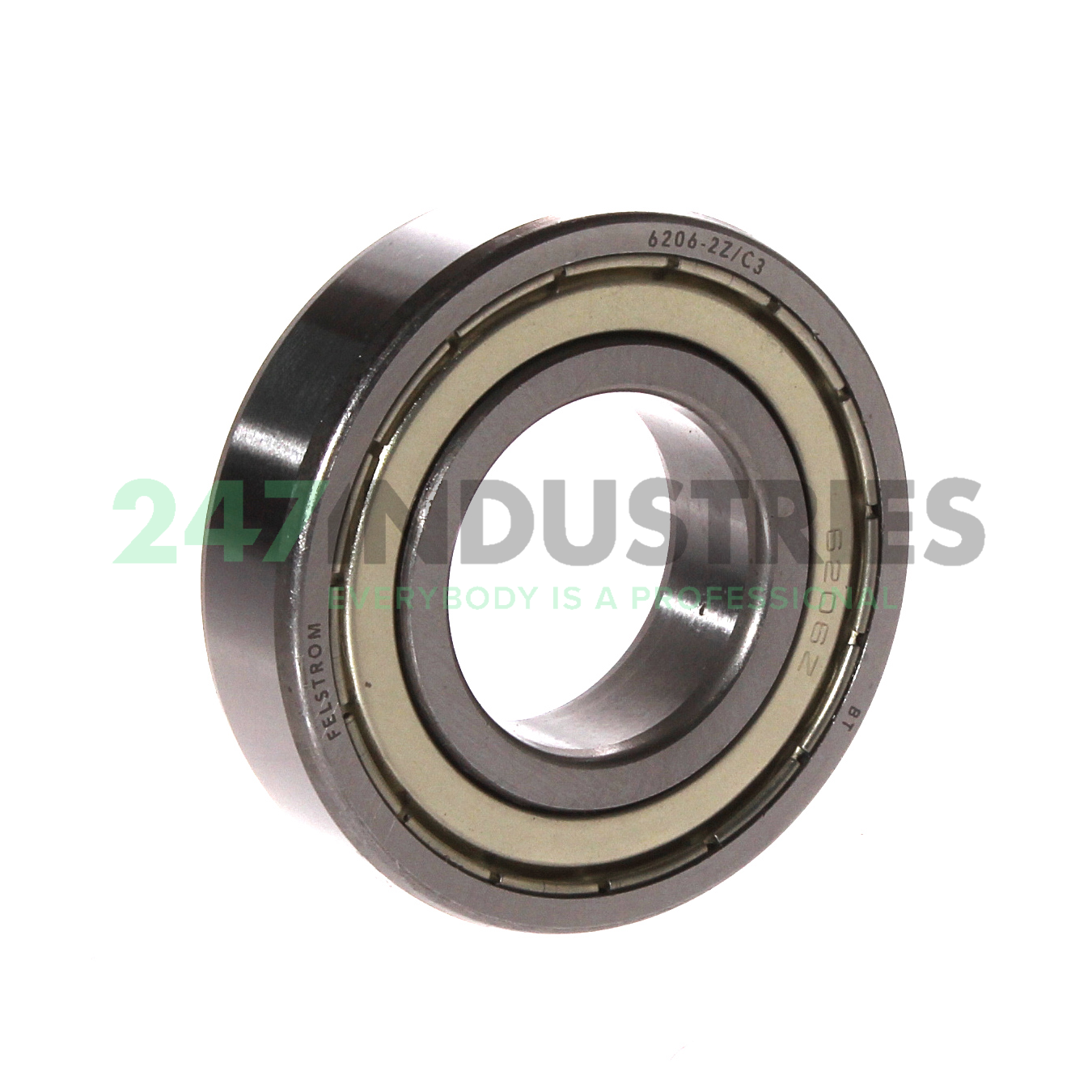

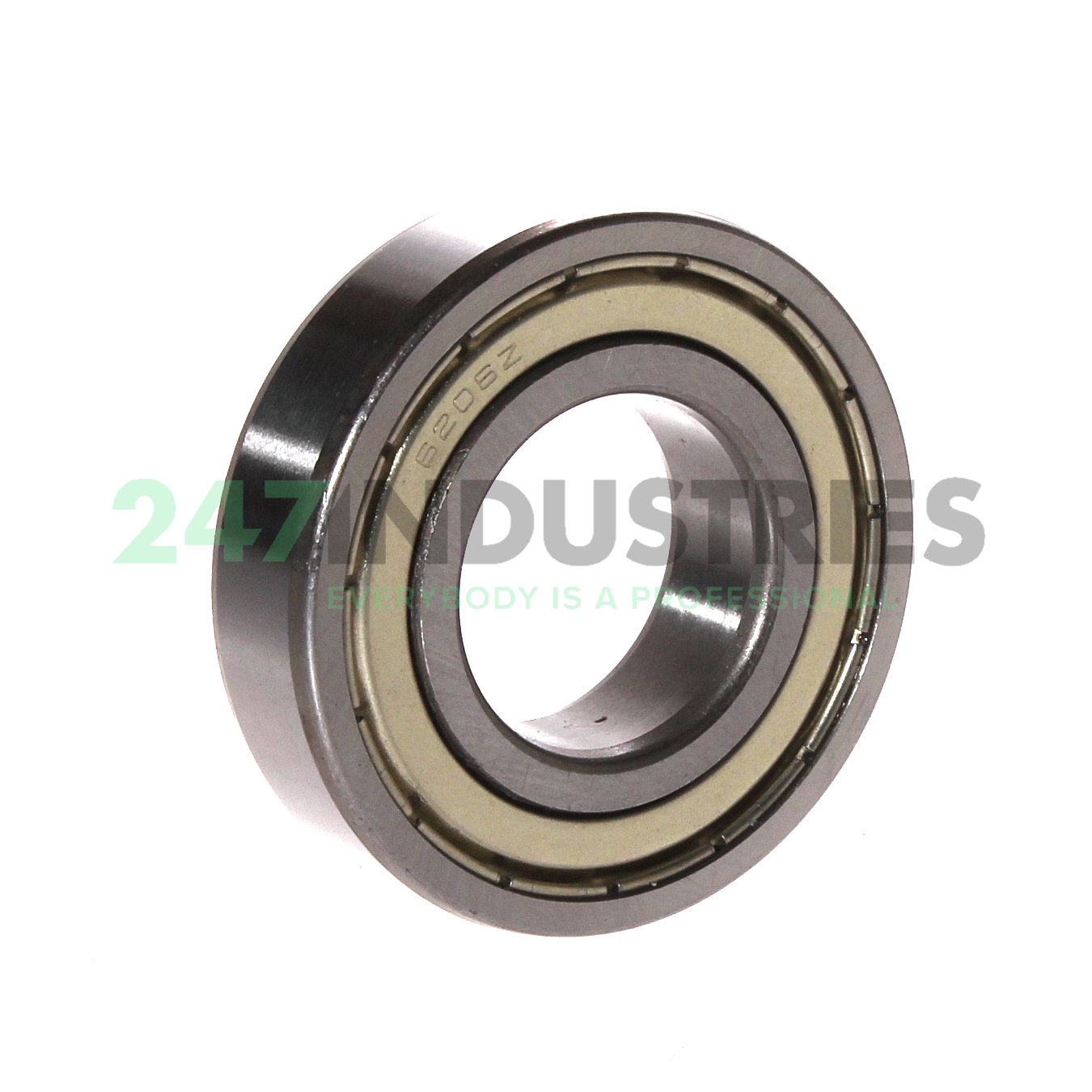

6206-2Z/C3 Felstrom

Single row deep groove ball bearing 6200 series

Stock
346 pcs in stock and ready for shipment
Brand Felstrom
Article number 6206-2Z/C3 Felstrom
Inside diameter 30,00mm
Outside diameter 62,00mm
Width 16,00mm
Product description

The 6206-2Z/C3 Felstrom is a single-row deep groove ball bearing with a very good price-performance ratio. Single-row deep groove ball bearings are the most commonly used types of bearing. These bearings have a simple, sturdy design and are largely maintenance-free. They are designed for high to very high speeds. Deep groove ball bearings are particularly suitable for radial loads but can also be subjected to axial loads to a limited extent.

Felstrom deep groove ball bearings stand out from their product group for their particularly solid and reliable design at a very friendly price. Moreover, each bearing is separately packed. Felstrom deep groove ball bearings can be used in a wide range of applications. The 6206-2Z/C3 Felstrom has steel cover plates on both sides that protect against dirt and dust. The cover plates do not come in contact with the inner ring, resulting in virtually no additional friction and wear. Felstrom bearings are direct replacements for your original bearings and can be mounted easily.

Read more Show less
Help with this product

Downloads and links

Similar to: 6206-2Z/C3 Felstrom

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 30,00
  2. Outer (D) MM 62,00
  3. Width (B) MM 16,00
  4. Inner (d) Inch 1.1811
  5. Outer (D) Inch 2.4409
  6. Width (B) Inch 0.6299

Suffix description

  1. 2Z Two Metallic Shields
  2. C3 Internal Clearance Larger Than Normal

Technical details

  1. Availability 346 pcs
  2. Brand Felstrom
  3. Item number 6206-2Z/C3 Felstrom
  4. EAN 8719735003270
  5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

  1. Weight (kg) 0.201

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal ZZ/2Z - Steel Seal on Two Sides
  3. Cage Type S - Steel or Standard Cage
  4. External Modification No External Modification
  5. Radial Internal Play C3 Internal Play (Higher than Cn)
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Special Treatment No Special Treatment

Downloads and links

  1. Series datasheet Series datasheet
