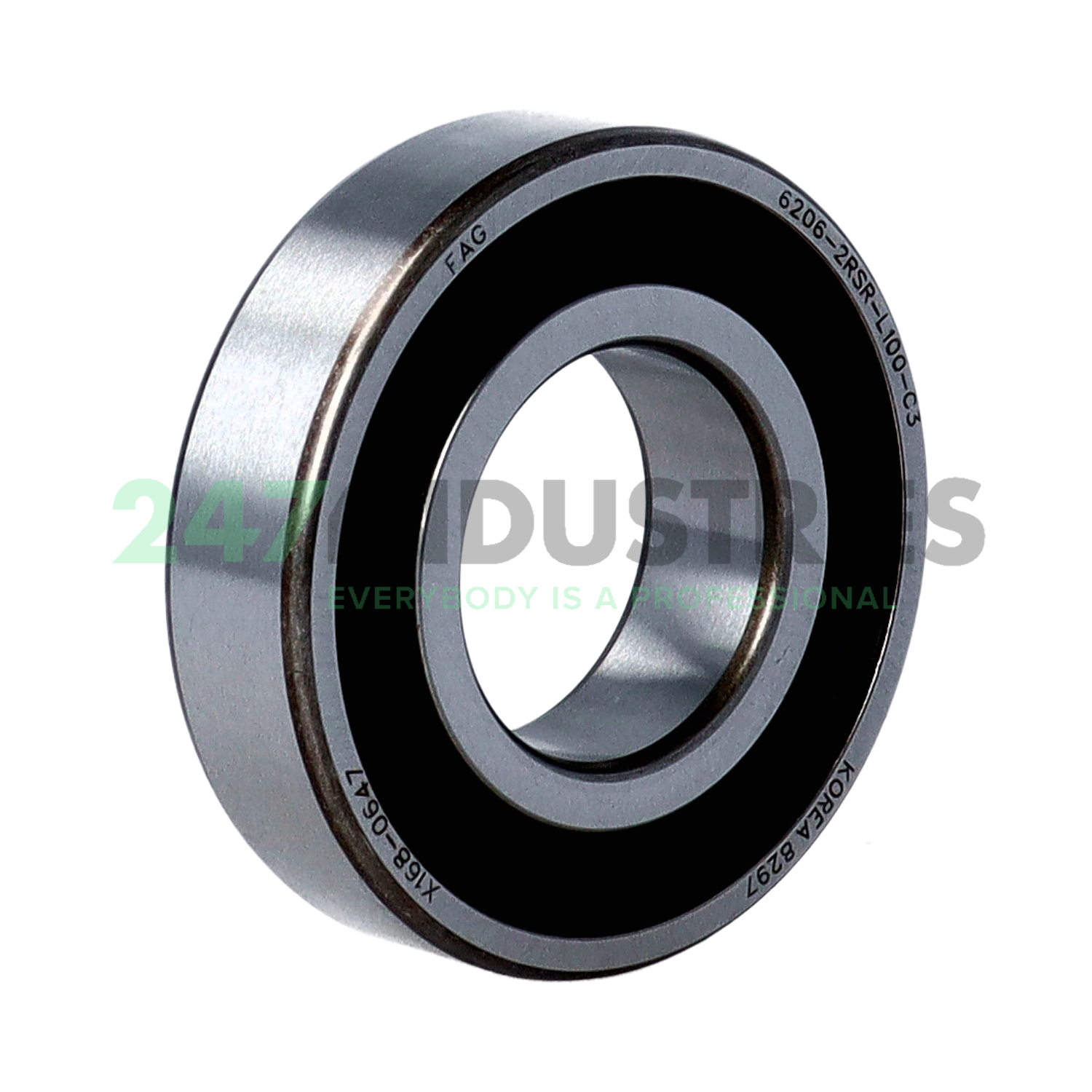

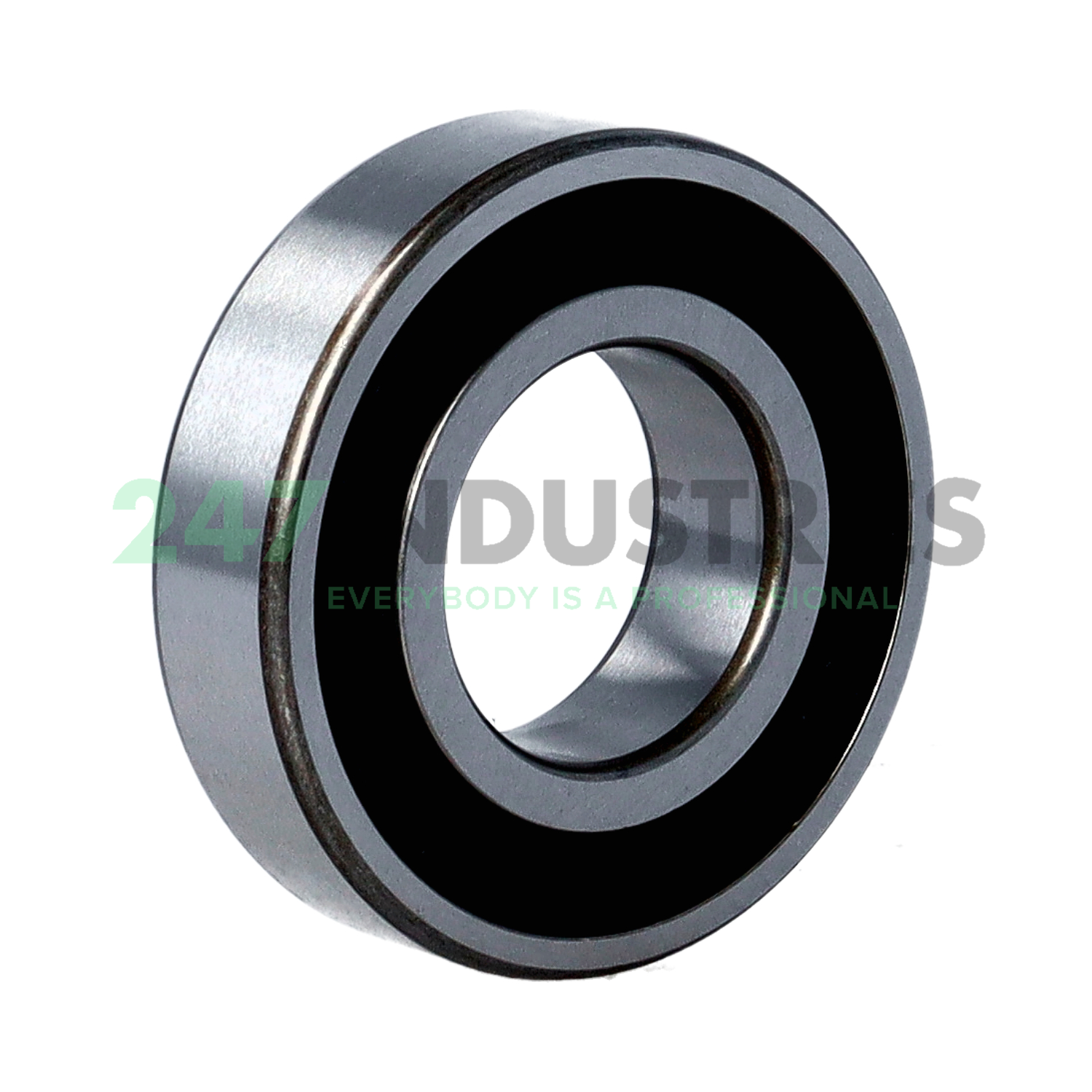

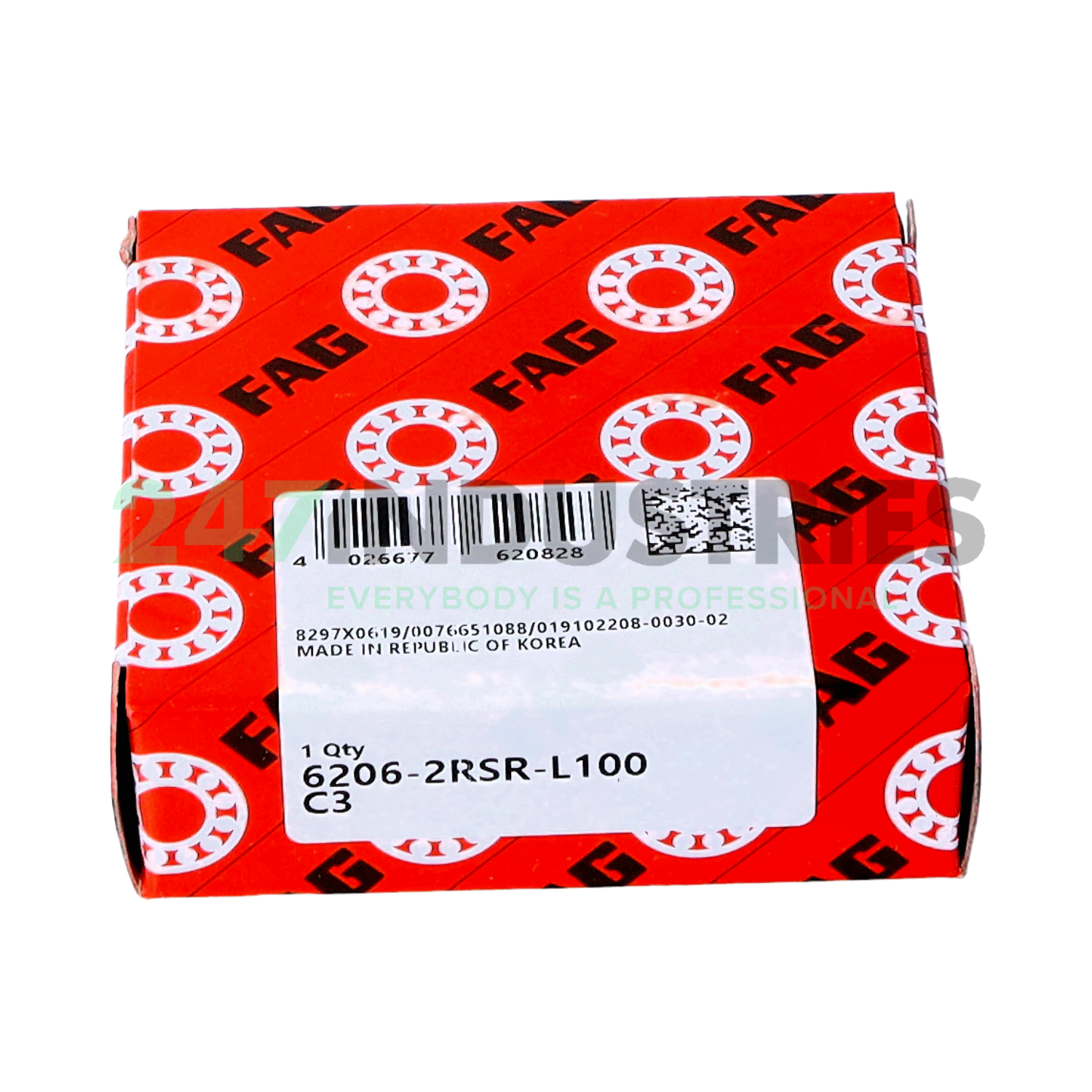

6206-2RSR-L100-C3 FAG

All dimensions

1. Inner (d) MM 30,00
2. Outer (D) MM 62,00
3. Width (B) MM 16,00
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6299
7. Width (b) mm 16,00

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing
2. L100 High/Low Temperature Grease -40ºC/+160ºC
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 7 pcs
2. Brand FAG
3. Item number 6206-2RSR-L100-C3 FAG
4. Also known as 0191022080030

5. EAN 4026677620828
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.192

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Higher and Lower Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 11300
2. Radial Dynamic Load Rating Cr (N) 20700
3. Basic static load rating, radial (C 0r) "11300.0000"
4. Limiting speed (n G) "6700.0000"
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 62..-2RSR, single row, cf. DIN 625-1

Downloads and links

1. Link to manufacturer Link to manufacturer
