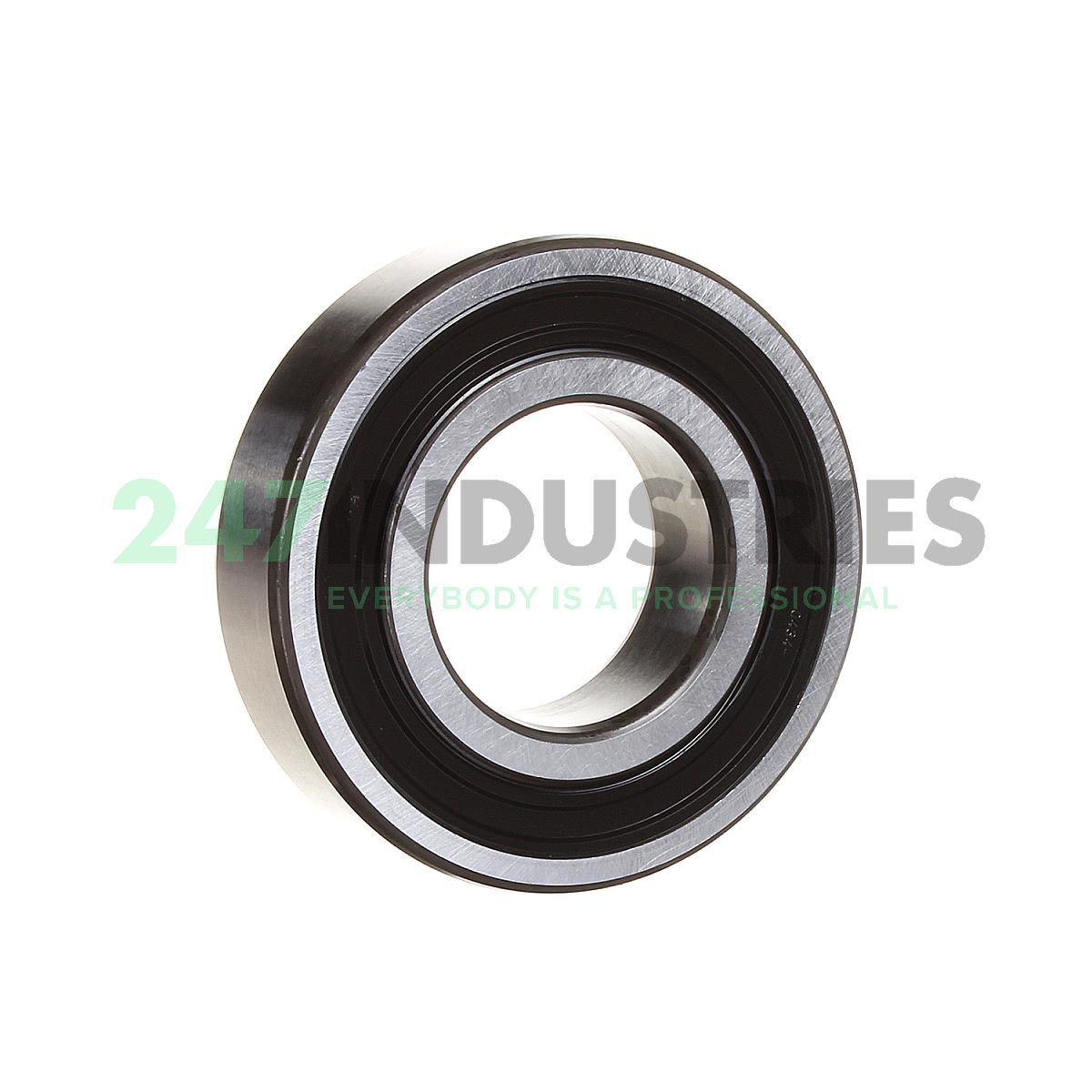

6206.2RSR.E20A.L12 FAG

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 62
3. Width (B) MM 16
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6299

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing
2. E20A Special Packaging For Volvo AB, Sweden and Volvo Car, The Netherlands
3. L12 Rolling Bearing Grease (Polyurea) High Temperature -30°C/+175°C

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 6206.2RSR.E20A.L12 FAG
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.192

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication 2 - High Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
