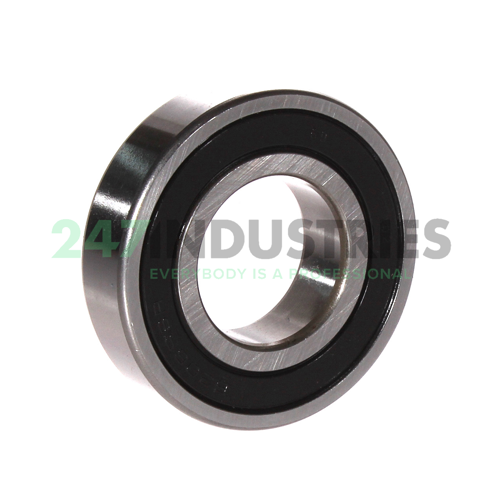

6206-2RSR-C4 FAG

All dimensions

1. Inner (d) MM 30,00
2. Outer (D) MM 62,00
3. Width (B) MM 16,00
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6299

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing
2. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 6206-2RSR-C4 FAG
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.192

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 11300
2. Radial Dynamic Load Rating Cr (N) 20700
3. ECLASS number 23-05-08-01
4. ECLASS2 number 23-05-08-01
5. Medias description Deep groove ball bearing 62..-2RSR, single row, cf. DIN 625-1
