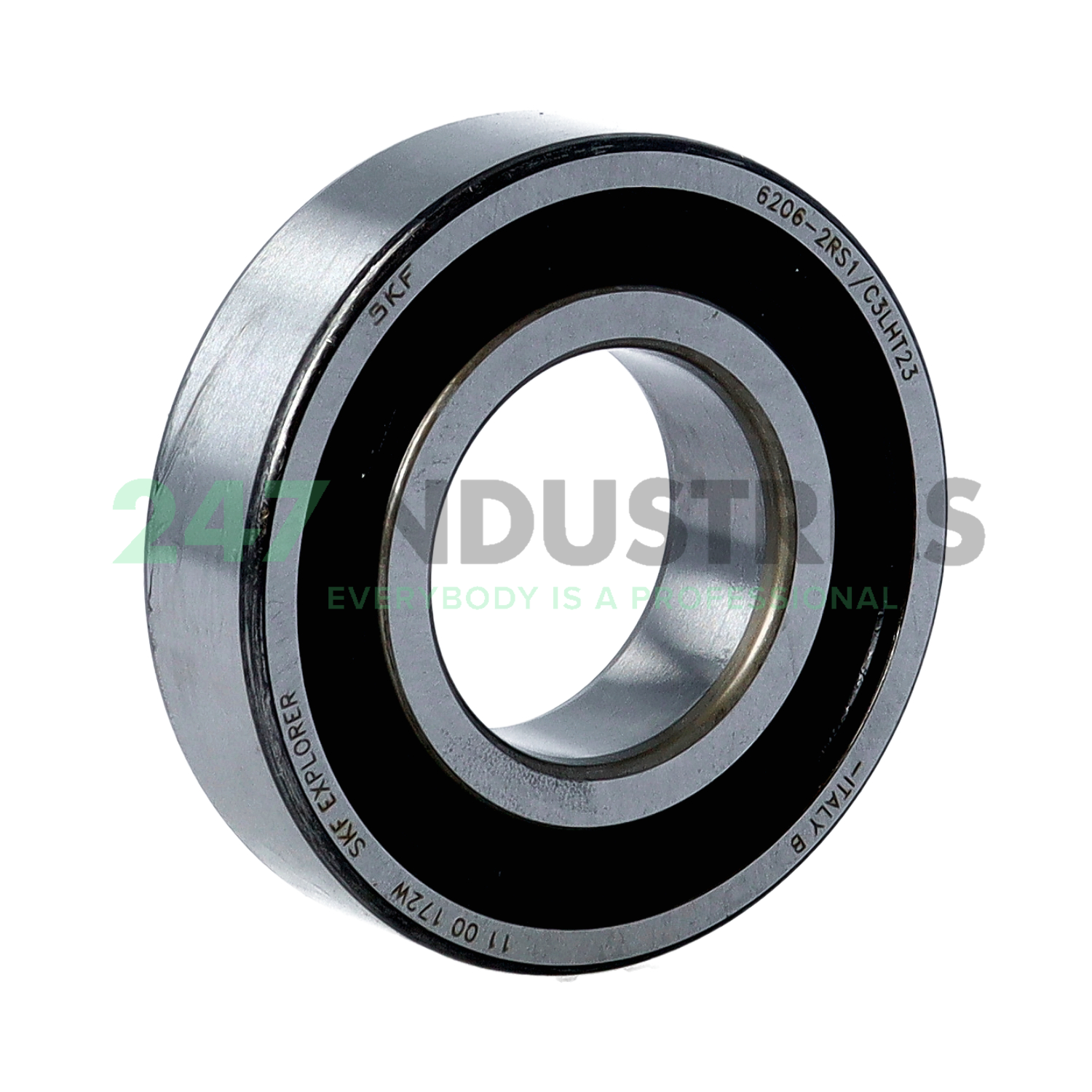

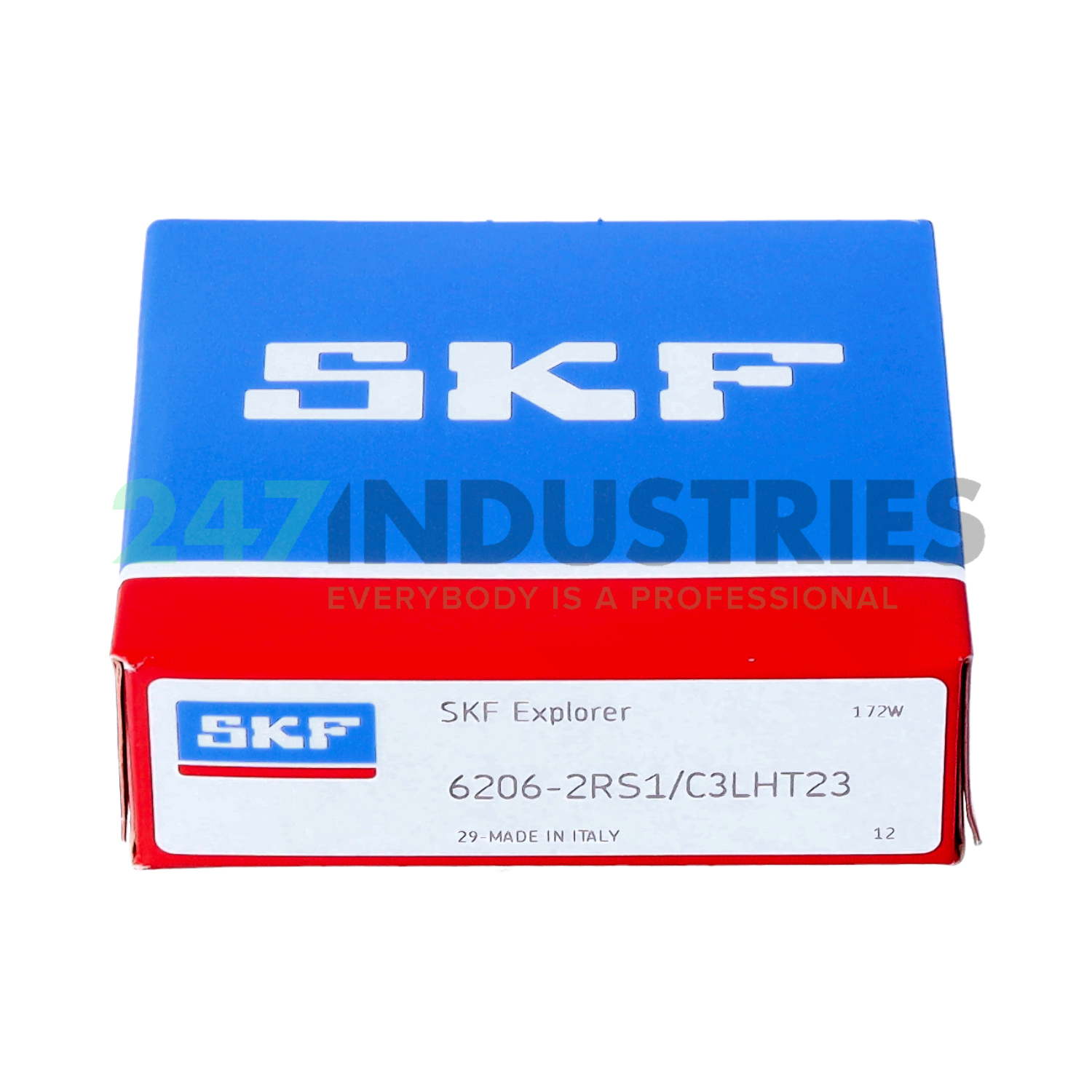

6206-2RS1/C3LHT23 SKF

All dimensions

1. Inner (d) MM 30,00
2. Outer (D) MM 62,00
3. Width (B) MM 16,00
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6299

Suffix description

1. 2RS1 Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing
2. C3 Internal Clearance Larger Than Normal
3. LHT23 Lithium Grease, Wide Range, 26 cSt @ 40°C, -50 ~ 140°C. A Two-Figure Number Following LHT Identifies The Actual Grease

Technical details

1. Availability 9 pcs
2. Brand SKF
3. Item number 6206-2RS1/C3LHT23 SKF
4. Also known as 6206 2RS C3
   6206-2RS1/C3
   6206-2RSR-C3
   6206DDUC3
   6206EE J30
   6206EEC3
   6206LLUC3

5. EAN 7316570241471
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.192

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication L - -50°C/+140°C
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
