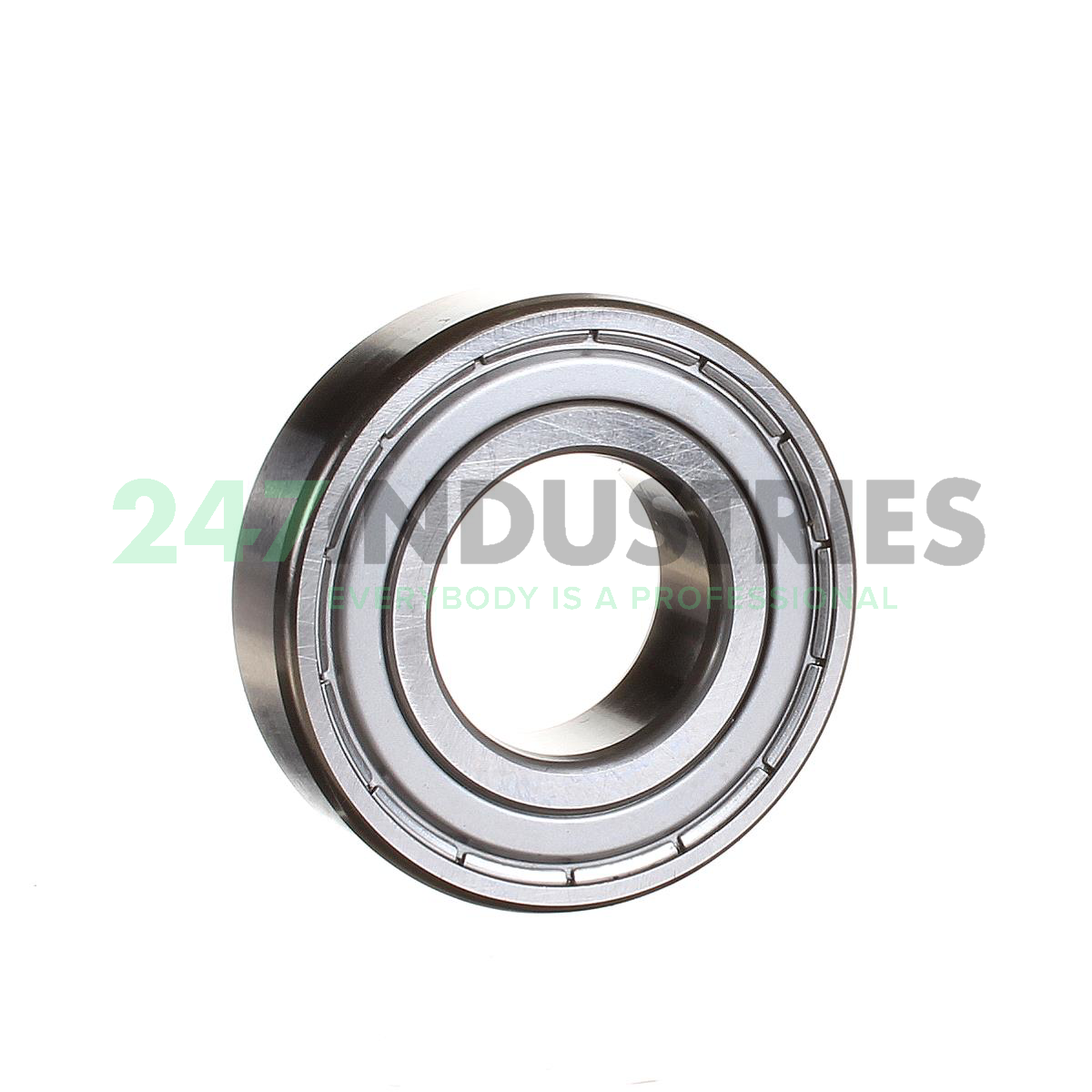

6205ZZ C3 P5/5K NTN

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 52
3. Width (B) MM 15

Suffix description

1. ZZ Two Metallic Shields
2. C3 Internal Clearance Larger Than Normal
3. P5 Dimensional And Running Accuracy To ISO Tolerance Class 5
4. 5K Grease: Kyodo Yushi / Multemp SRL (-40°C to +150°C)

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number 6205ZZ C3 P5/5K NTN
4. Also known as 6205ZZ C3 P5

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.13

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision P5 Precision (Higher than P6)
7. Lubrication Higher and Lower Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
