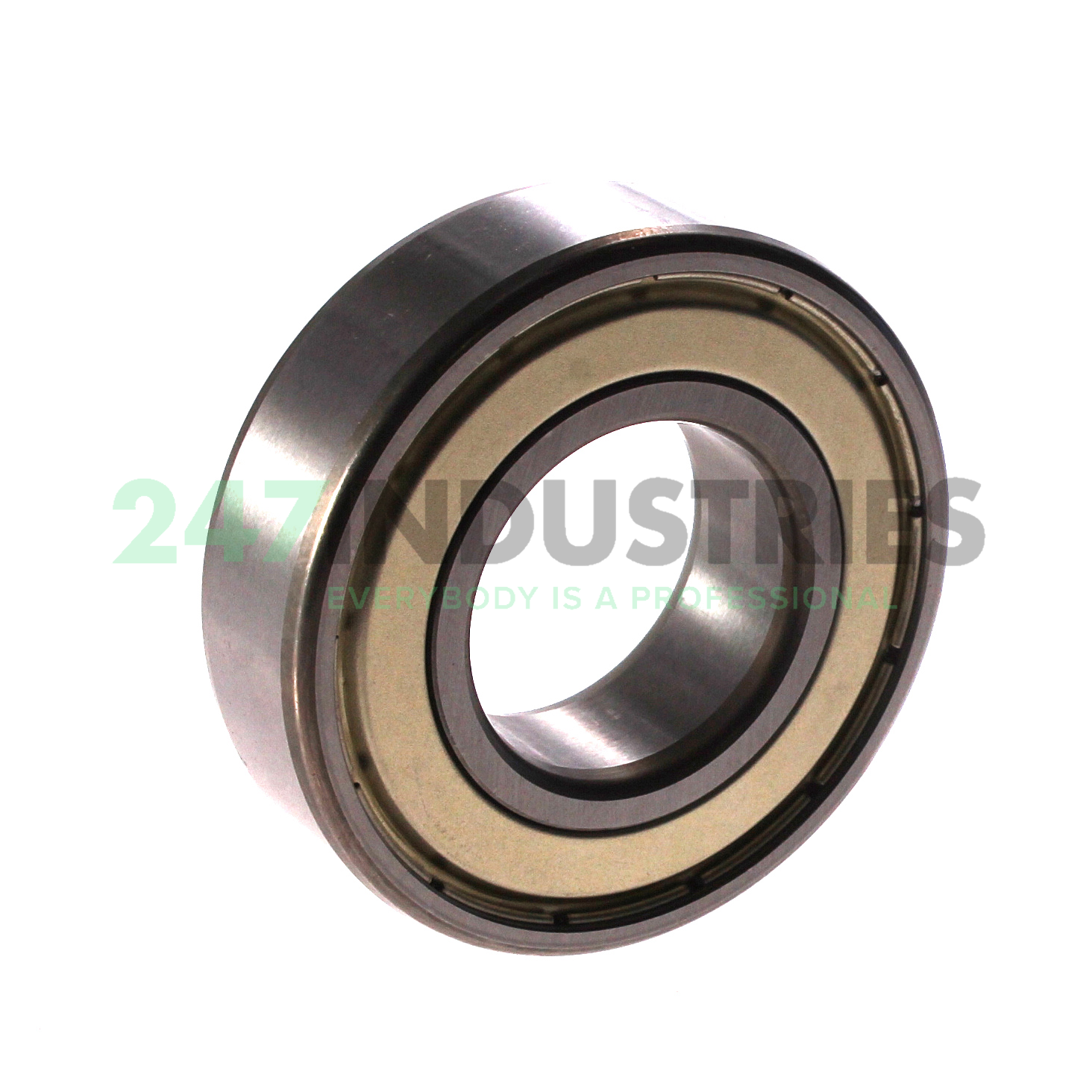

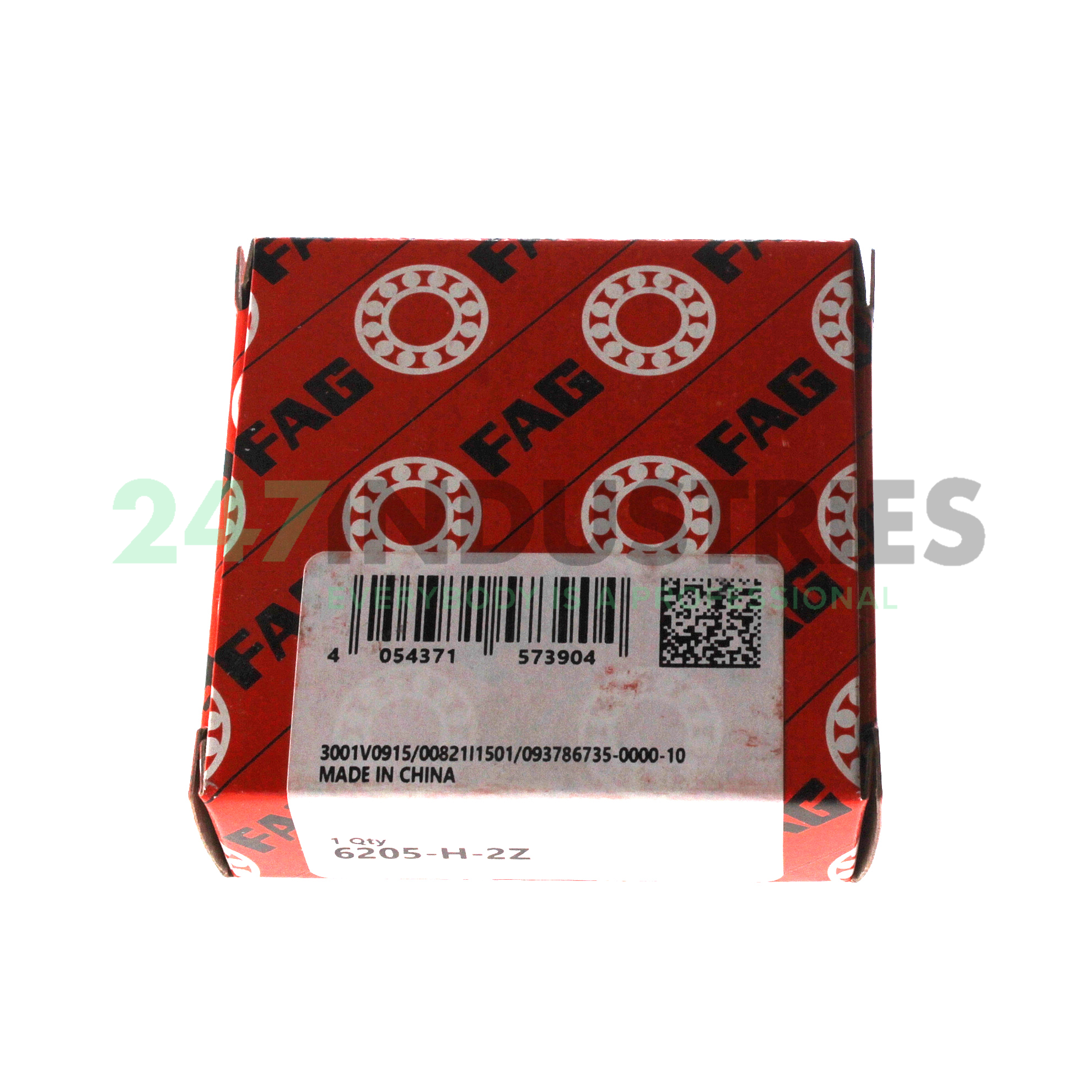

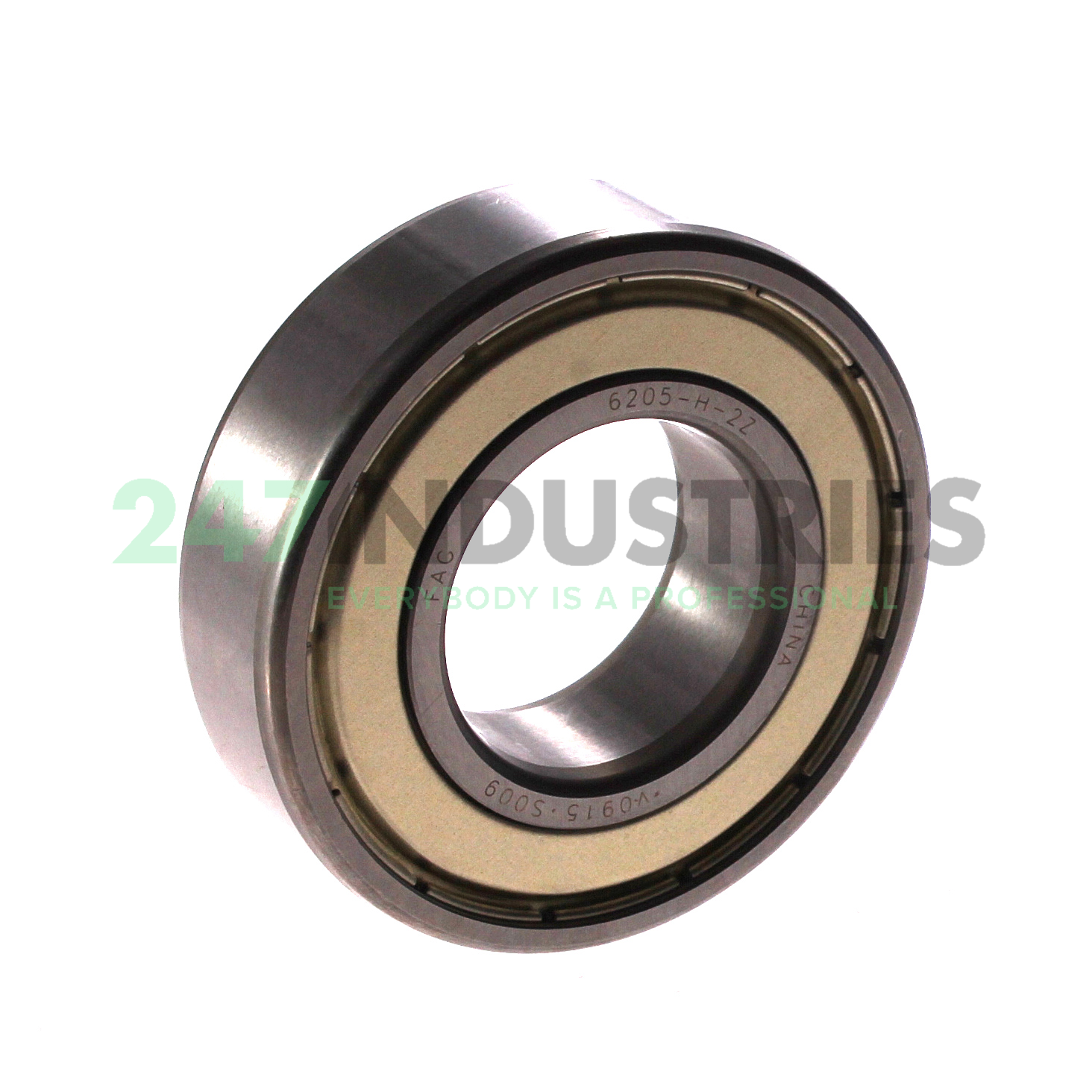

6205-H-2Z FAG

All dimensions

1. Inner (d) MM 25,00
2. Outer (D) MM 52,00
3. Width (B) MM 15,00
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.5906
7. Width (b) mm 15,00

Suffix description

1. H Basic Quality
2. 2Z Two Metallic Shields
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 407 pcs
2. Brand FAG
3. Item number 6205-H-2Z FAG
4. EAN 4054371573904
5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.13

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 7880
2. Radial Dynamic Load Rating Cr (N) 14020
3. Basic static load rating, radial (C 0r) "7880.0000"
4. Limiting speed (n G) "16500.0000"
5. Reference speed (n ϑr) "14100.0000"
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearings 62..-H-2Z, main dimensions to DIN 625-1, gap seals on both sides
