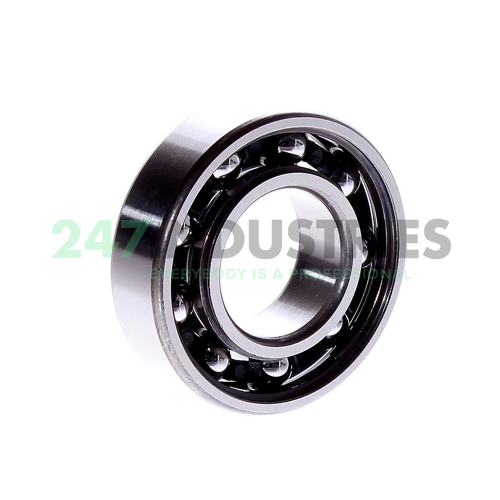

6205-C-TVH-C3 FAG

All dimensions

1. Inner (d) MM 25,00
2. Outer (D) MM 52,00
3. Width (B) MM 15,00
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.5906

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. TVH Cage Made From Glass Fibre Reinforced Polyamide, Rolling Element Riding
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 360 pcs on 25 Apr
2. Brand FAG
3. Item number 6205-C-TVH-C3 FAG
4. Also known as 0953502250030
   6205-TVH-C3

5. EAN 4054372736797
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.125

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 7800
2. Radial Dynamic Load Rating Cr (N) 15900
3. ECLASS number 23-05-08-01
4. ECLASS2 number 23-05-08-01
5. Medias description Deep groove ball bearing 62..-C-TVH, single row, cf. DIN 625-1
