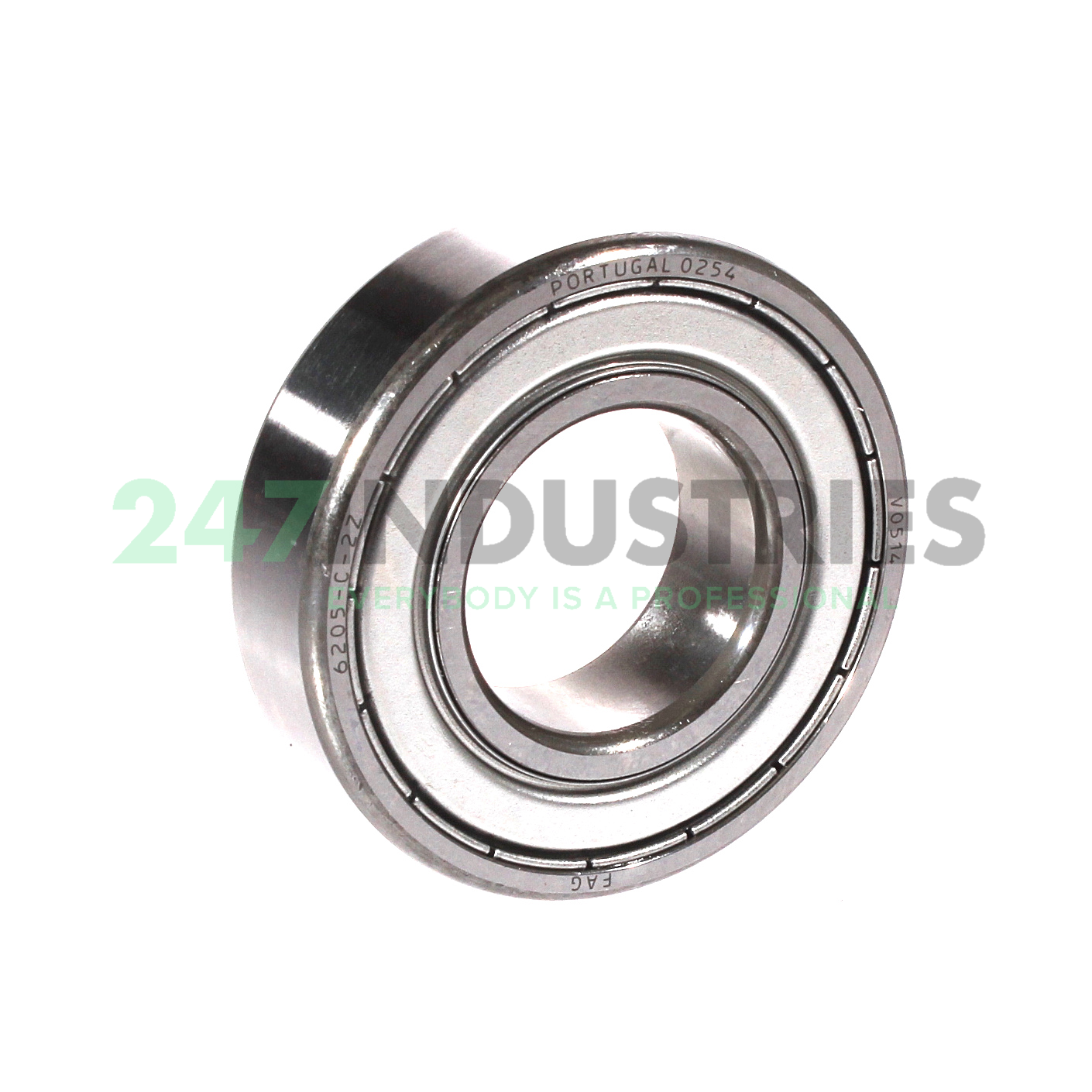

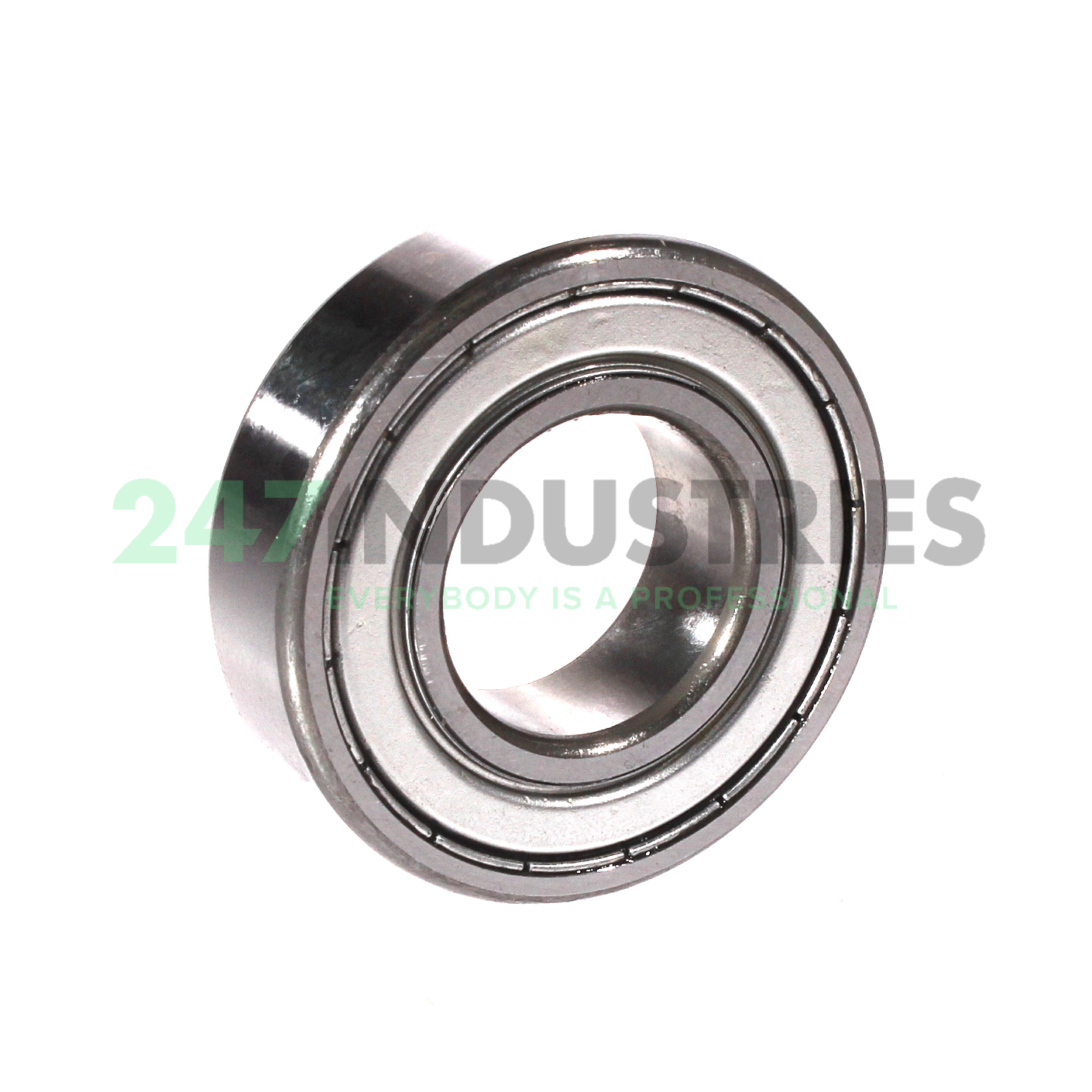

6205-C-2Z FAG

All dimensions

1. Inner (d) MM 25,00
2. Outer (D) MM 52,00
3. Width (B) MM 15,00
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.5906
7. Width (b) mm 15,00

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. 2Z Gap Seals On Both Sides

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 6205-C-2Z FAG
4. Also known as 0593721760000
   0949834700000
   6205.2ZR
   6205-2Z

5. EAN 4012802384161
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.13

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 7800
2. Radial Dynamic Load Rating Cr (N) 15900
3. Basic static load rating, radial (C 0r) "7800.0000"
4. Limiting speed (n G) "18400.0000"
5. Reference speed (n ϑr) "16000.0000"
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearing 62..-C-2Z, single row, cf. DIN 625-1
