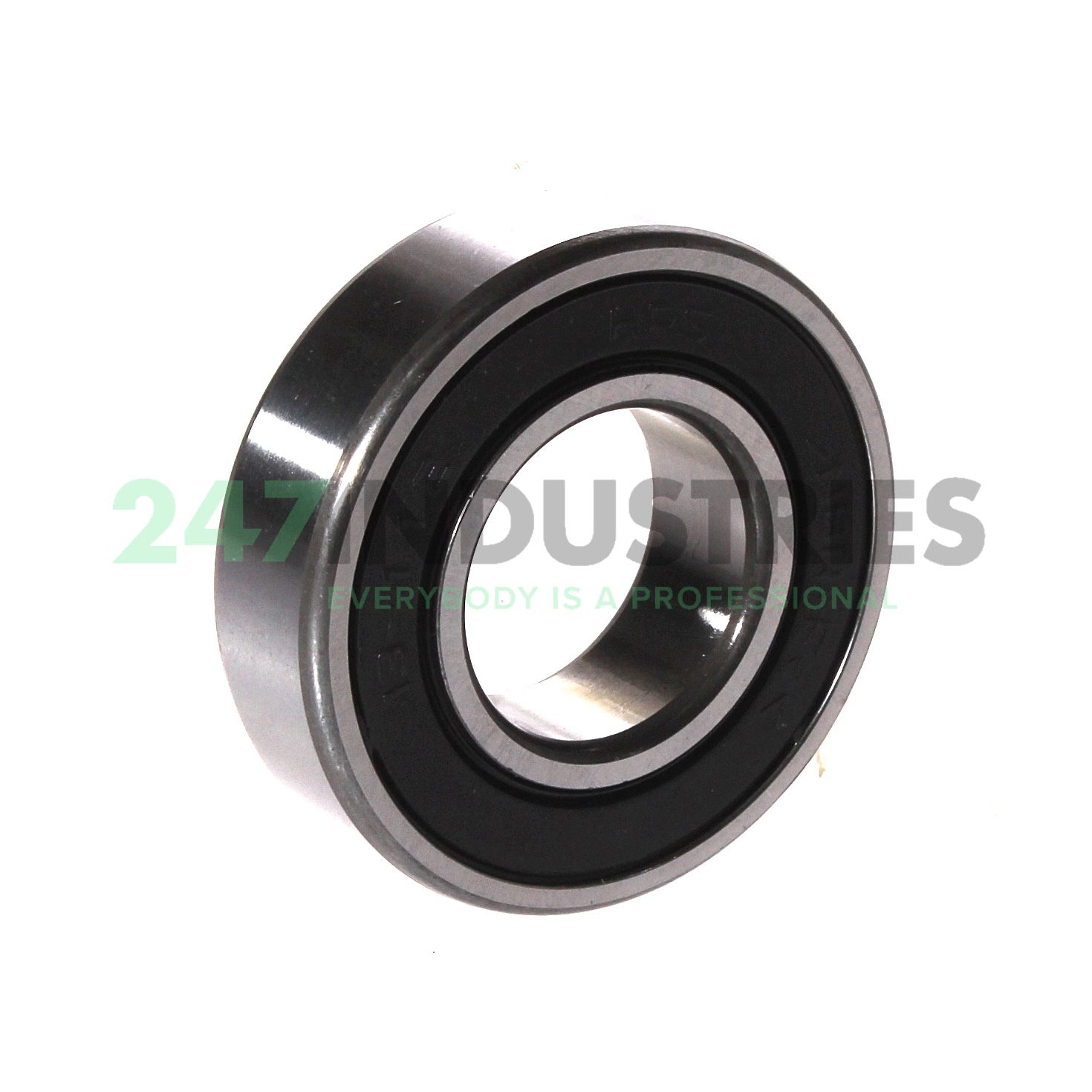

6205-C-2HRS-C3 FAG

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 52
3. Width (B) MM 15
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.5906
7. Width (b) mm 15

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. 2HRS Lip Seals On Both Sides Made From Nitrile Butadiene Rubber, These Designs Are Lubricated For Life Using A High Quality Grease And Are Suitable For Moderate Speeds. The Frictional Torque And Heat Generation Are Lower Than With The Previous RSR Seal
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 6,290 pcs
2. Brand FAG
3. Item number 6205-C-2HRS-C3 FAG
4. Also known as 0621658600030
   0949834530030
   6205-2RS1/C3
   6205-2RS-C3
   6205-2RSH/C3
   6205-2RSR-C3

5. EAN 4012802384123
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.125

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RH - High Speed Low Friction Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 7800
2. Radial Dynamic Load Rating Cr (N) 15900
3. Limiting speed (n G) 12200
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01
6. Medias description Deep groove ball bearing 62..-C-2HRS, single row, cf. DIN 625-1
