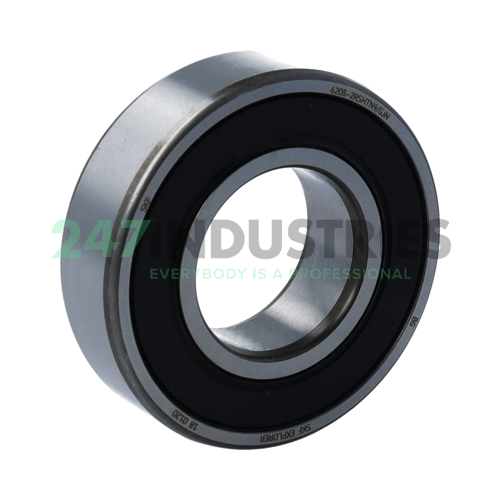

6205-2RSHTN9/GJN SKF

All dimensions

1. Inner (d) MM 25,00
2. Outer (D) MM 52,00
3. Width (B) MM 15,00
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.5906

Suffix description

1. 2RSH RSH Contact Seal On Both Sides Of The Bearing
2. TN9 Injection Moulded Snap-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered
3. GJN Di-urea, Hi-temp. Grease 115 cSt @ 40°C, Range -40 ~ 150°C

Technical details

1. Availability 32 pcs
2. Brand SKF
3. Item number 6205-2RSHTN9/GJN SKF
4. Also known as 6205-2RS1TN9/GJN
   6205-2RSHTN9

5. EAN 7316572668726
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.1248

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RH - High Speed Low Friction Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication 2 - High Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
