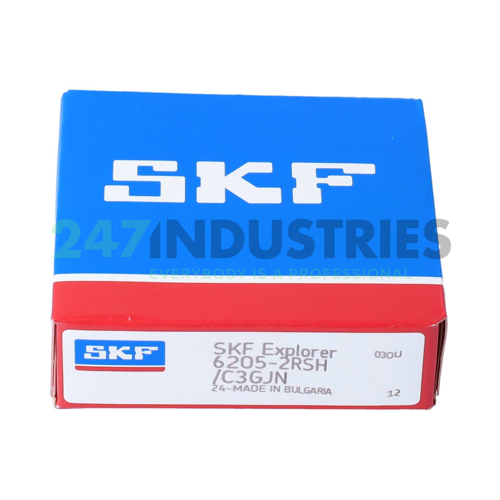

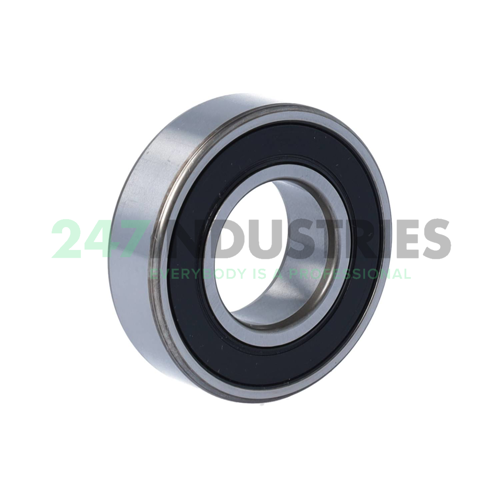

6205-2RSH/C3GJN SKF

All dimensions

1. Inner (d) MM 25,00
2. Outer (D) MM 52,00
3. Width (B) MM 15,00
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.5906

Suffix description

1. 2RSH RSH Contact Seal On Both Sides Of The Bearing
2. C3 Internal Clearance Larger Than Normal
3. GJN Di-urea, Hi-temp. Grease 115 cSt @ 40°C, Range -40 ~ 150°C

Technical details

1. Availability 21 pcs
2. Brand SKF
3. Item number 6205-2RSH/C3GJN SKF
4. Also known as 6205-2RS1/C3GJN
   6205-2RSH/C3

5. EAN 7316571820712
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.125

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RH - High Speed Low Friction Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication 2 - High Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
