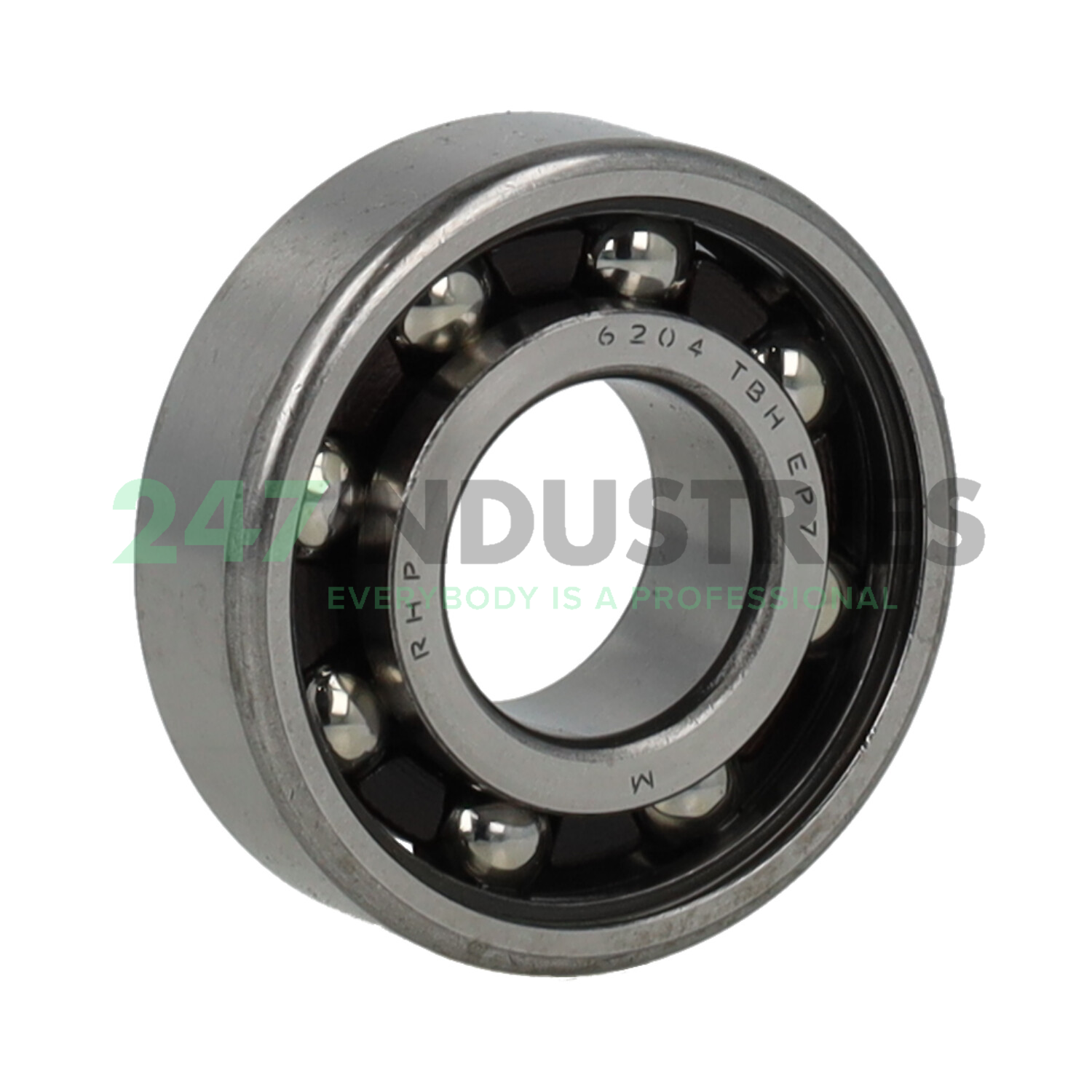

6204TBH EP7 RHP

All dimensions

1. Inner (d) MM 20,00
2. Outer (D) MM 47,00
3. Width (B) MM 14,00
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5512

Suffix description

1. TBH Snap Cage, Laminated Phenolic Resin, Inner-Land-Riding
2. EP7 Extra Precision Tolerance Class 7. Super Precision Metric Bearings To ISO Grade 4, Abec-7, And BS292 EP7 Tolerances (Also Inch Bearings When Supplied To Abec-7 Tolerances)

Technical details

1. Availability 0 pcs
2. Brand RHP
3. Item number 6204TBH EP7 RHP
4. Also known as 204T
   6204TB HA7
   MM204K CR

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.1

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle Standard Contact Angle
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
