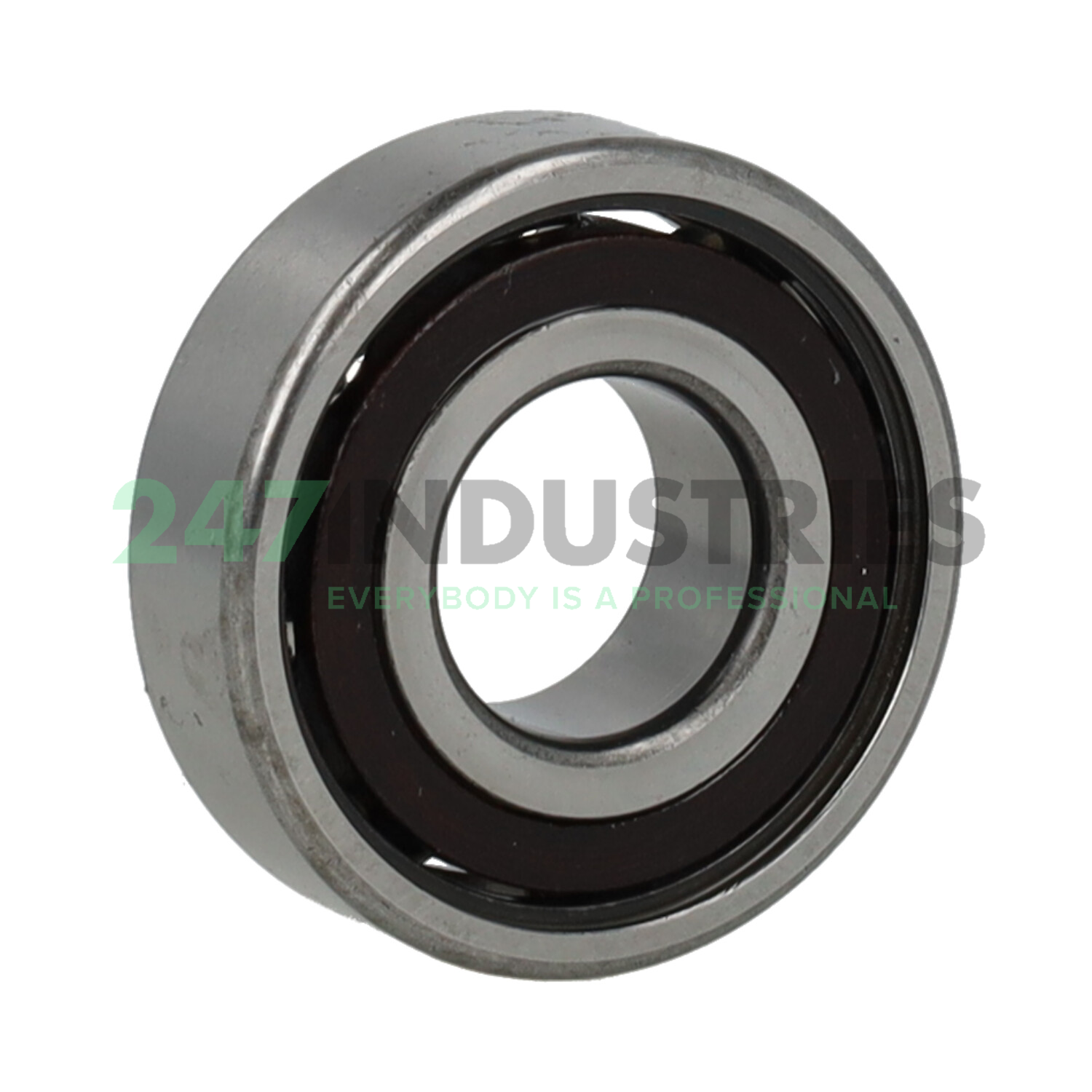

6204TBH EP7 GZ B RHP

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 47
3. Width (B) MM 14
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5512

Suffix description

1. TBH Snap Cage, Laminated Phenolic Resin, Inner-Land-Riding
2. EP7 Extra Precision Tolerance Class 7. Super Precision Metric Bearings To ISO Grade 4, Abec-7, And BS292 EP7 Tolerances (Also Inch Bearings When Supplied To Abec-7 Tolerances)
3. GZ Unknown
4. B High Point Of Radial Runout (Bottom)

Technical details

1. Availability 2 pcs
2. Brand RHP
3. Item number 6204TBH EP7 GZ B RHP
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.1

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle Standard Contact Angle
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
