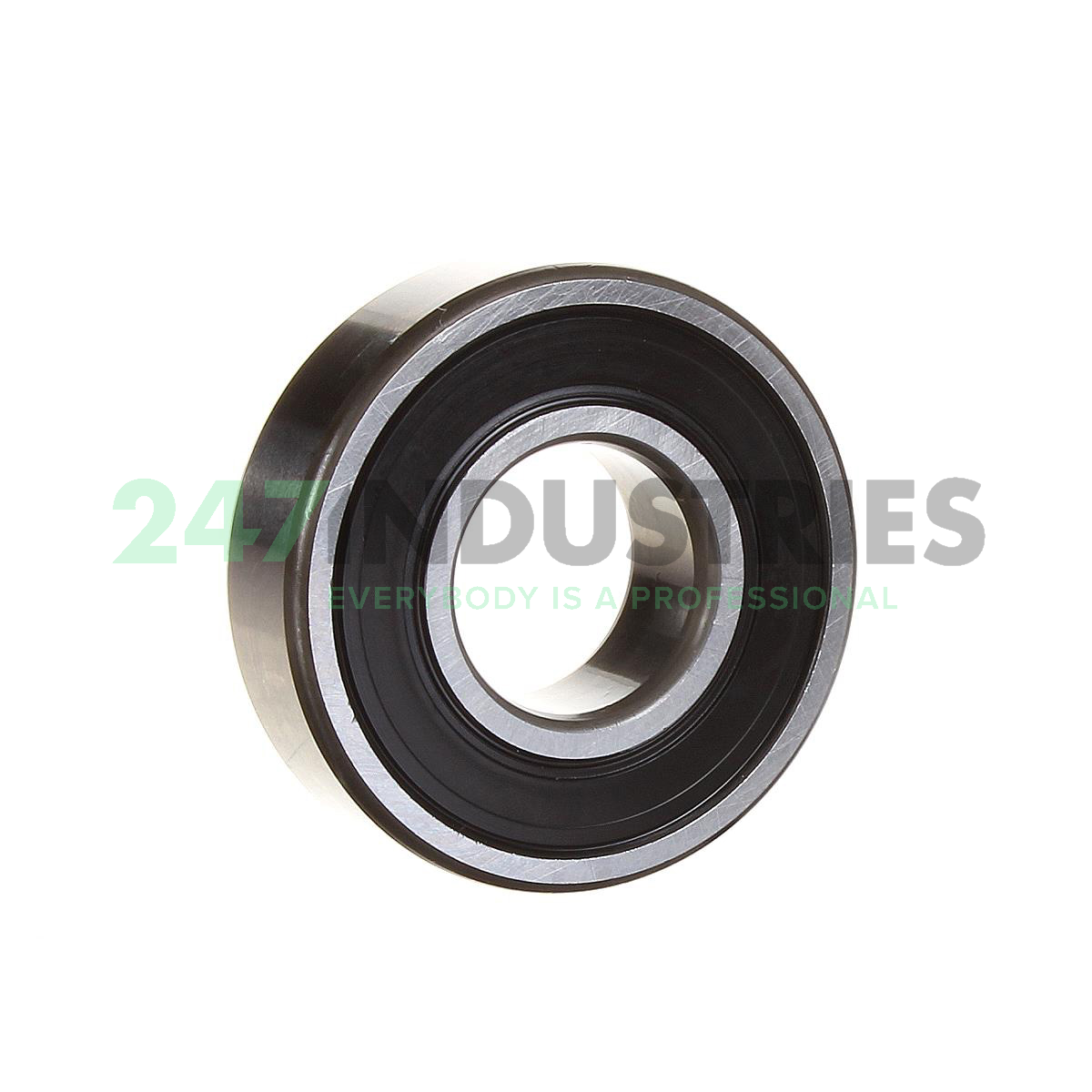

6204LLU/2AS NTN

All dimensions

1. Inner (d) MM 20,00
2. Outer (D) MM 47,00
3. Width (B) MM 14,00
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5512

Suffix description

1. LLU (2RS1-SKF)Rubber Seals At Each Side Of The Bearing
2. 2AS Lubricant, Shell Oil Co., Alvania #2 Grease, Mil-G-18709A

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number 6204LLU/2AS NTN
4. Also known as 6204LLU

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.106

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
