6204LLB C3/5K NTN

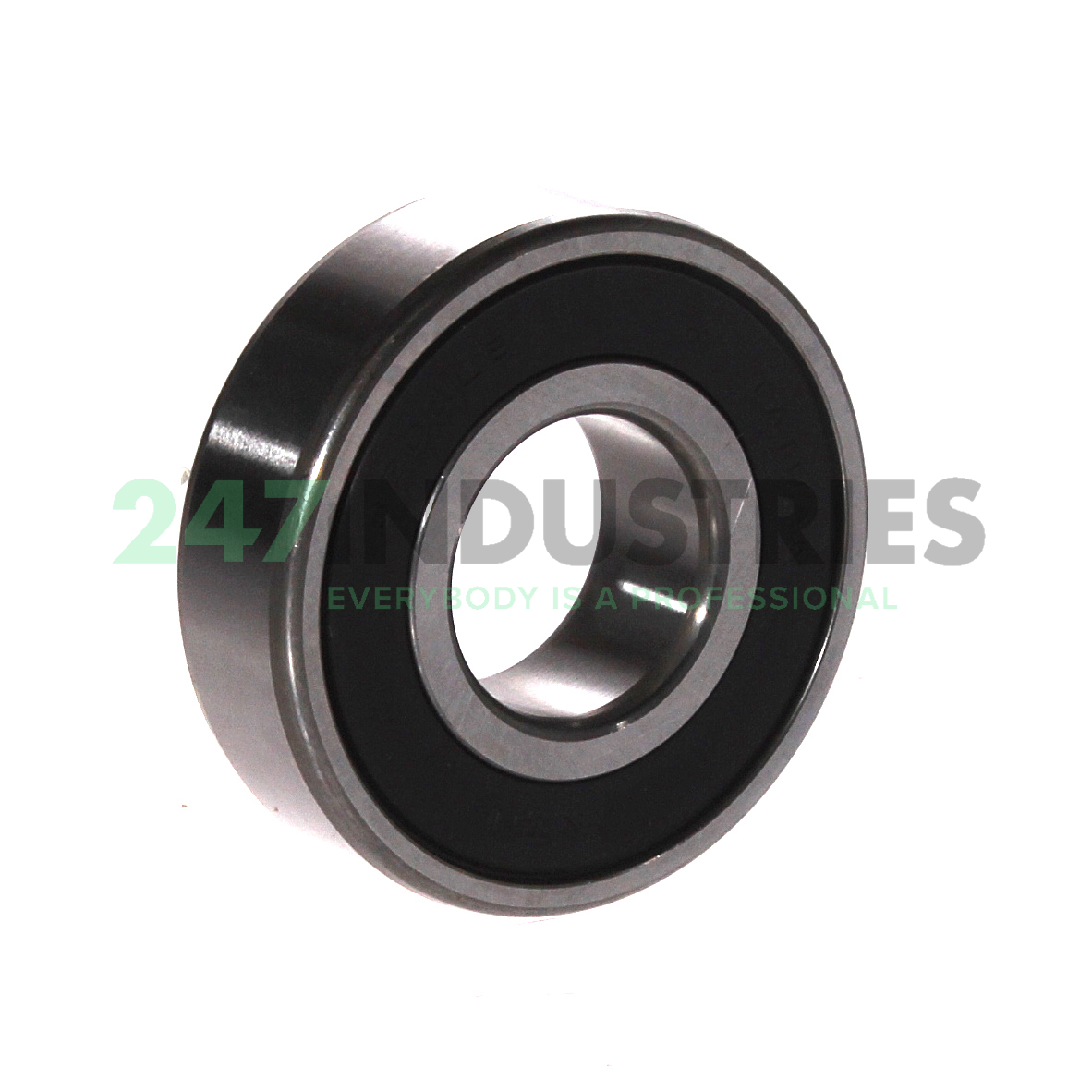

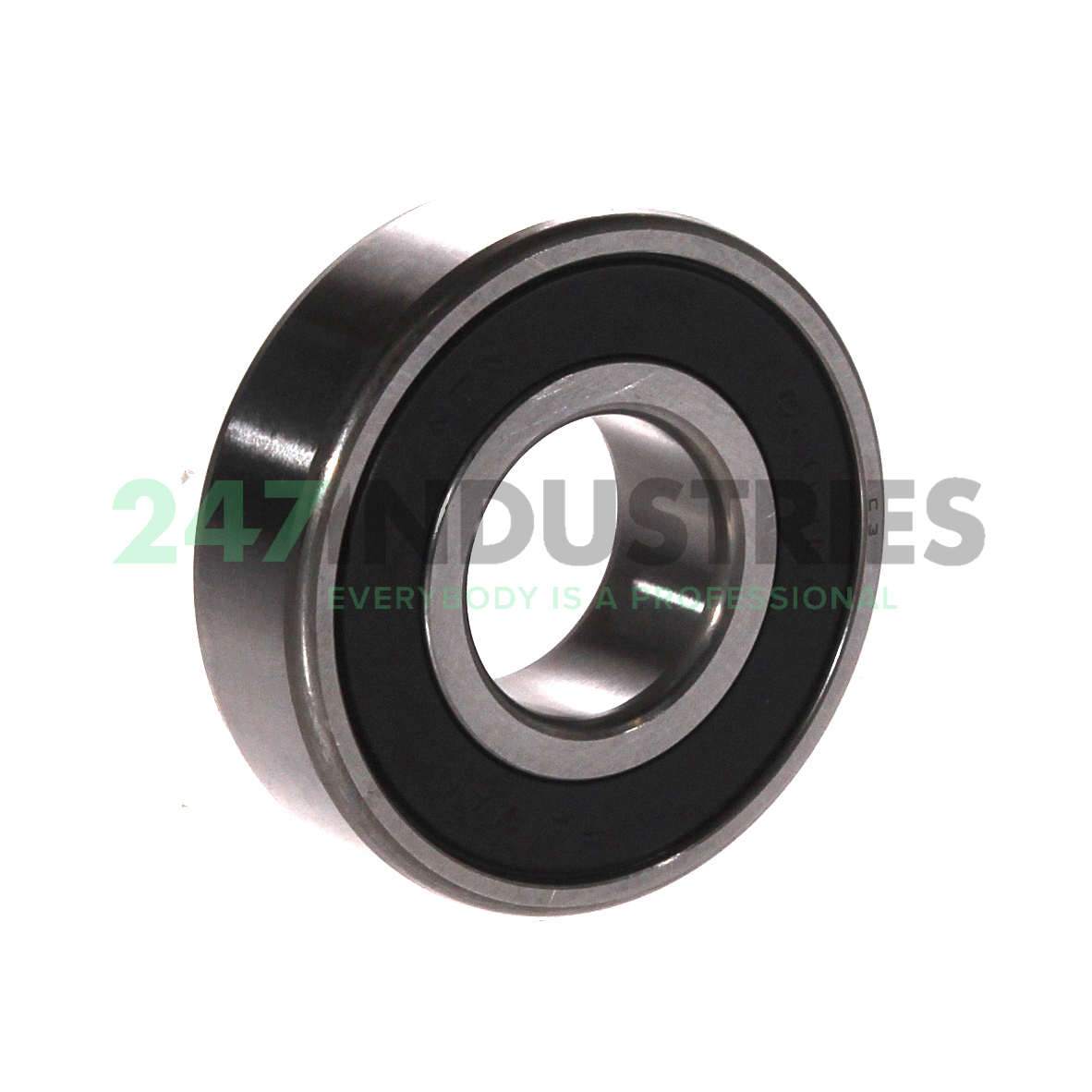

The 6204LLB C3/5K NTN bearing is a single row deep groove ball bearing with a steel or standard cage, a cylindrical bore and two non-contact type seals.

Stock
not in stock
Brand NTN
Article number 6204LLB C3/5K NTN
Inside diameter 20mm
Outside diameter 47mm
Width 14mm
Product description
Deep Groove Ball Bearing Single Row
Read more Show less
Help with this product

Similar to: 6204LLB C3/5K NTN

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 47
  3. Width (B) MM 14
  4. Inner (d) Inch -
  5. Outer (D) Inch -
  6. Width (B) Inch -

Technical details

  1. Availability 0 pcs
  2. Brand NTN
  3. Item number 6204LLB C3/5K NTN
  4. Technical details (LLB C3/5K) LLB=(Segment Seal, Code 2RU)=(2RSD-SKF)=Synthetic Rubber Seal (Non Contact Type). C3=Internal Clearance Larger Than Normal. 5K=(Segment Lubrication, Code 4)=Grease: Kyodo Yushi / Multemp SRL (-40°C to +150°C).
  5. Category Deep Groove Ball Bearings Single Row
  6. Weight (kg) 0.1060
  7. Manufacturer Part Number (MPN) 6204LLB C3/5K
  8. Bore C - Cylindrical Bore
  9. Seal 2RU - Two Seals / Non Contact Type
  10. Cage Type S - Steel or Standard Cage
  11. External Modification No Pairing
  12. Radial Internal Play C3 Internal Play (Higher than Cn)
  13. Precision Standard Precision
  14. Lubrication Higher and Lower Temperature Grease
  15. Heat Stabilization No Heat Stabilization - Temperatures up to 120°C
  16. Special Treatment No Special Treatment
