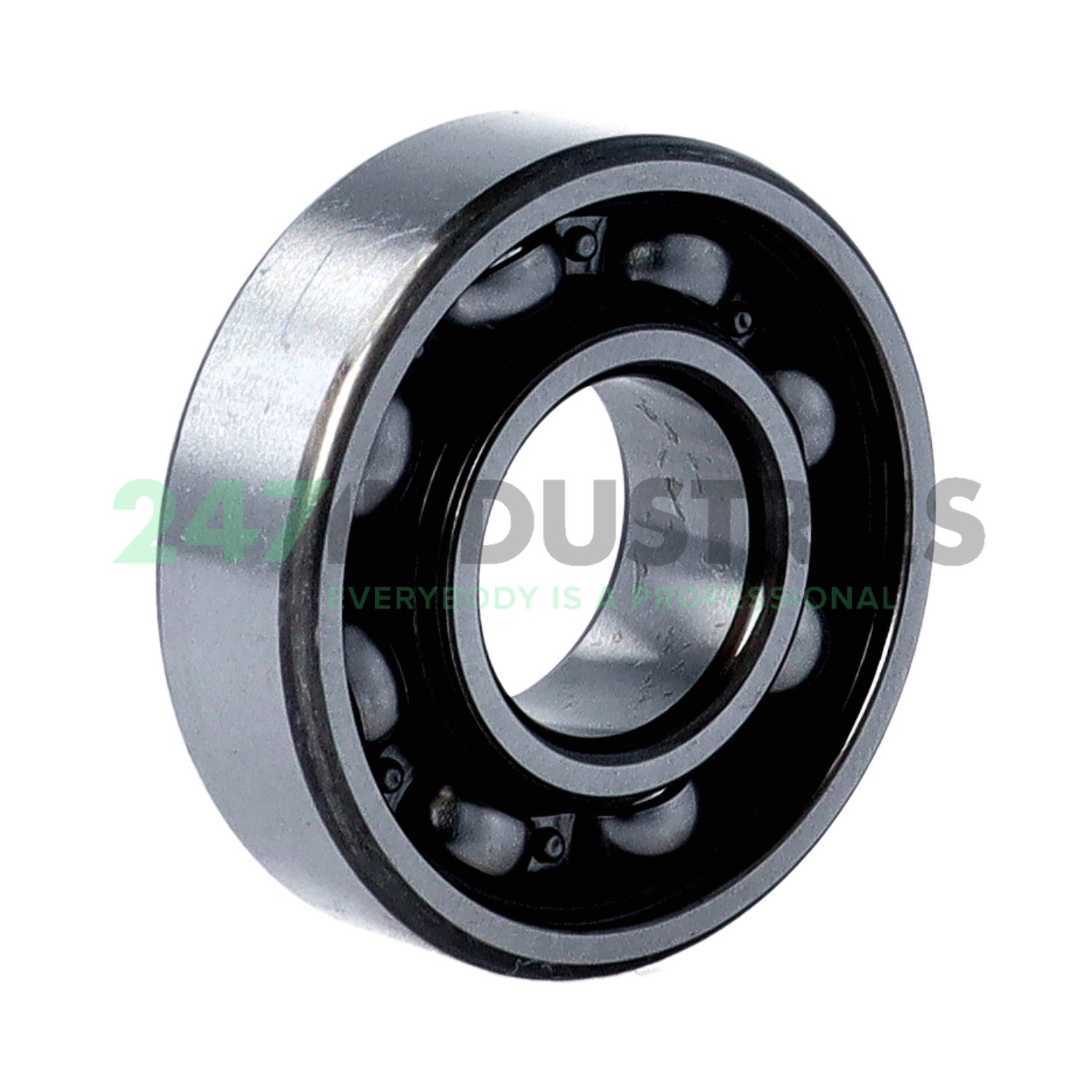

6204DUCM NSK

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 47
3. Width (B) MM 14
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5512

Suffix description

1. DU Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On One Side Of The Bearing
2. CM Ball Bearing, Special Radial Internal Clearance For Electric Motors, Can Be Used As Standard 'CN' Clearance

Technical details

1. Availability 23 pcs
2. Brand NSK
3. Item number 6204DUCM NSK
4. Also known as 6204-RS
   6204-RS1
   6204-RSR

5. EAN 00029176424571
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.103

Product Properties

1. Bore C - Cylindrical Bore
2. Seal RS - Rubber Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
