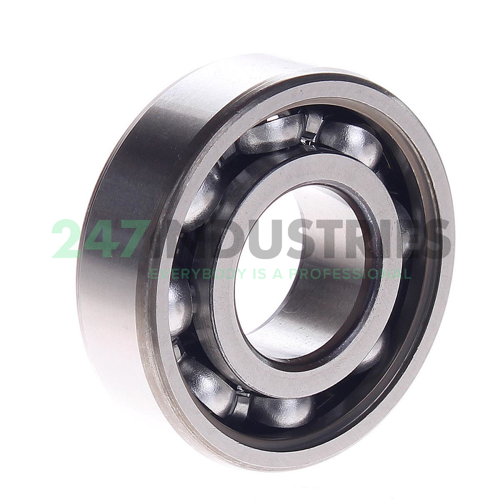

6204-Z/C5 SKF

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 47
3. Width (B) MM 14
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5512

Suffix description

1. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
2. C5 Bearing Internal Clearance Greater Than C4

Technical details

1. Availability 40 pcs
2. Brand SKF
3. Item number 6204-Z/C5 SKF
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.103

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C5 Internal Play (Higher than C4)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
