6204-C3 FAG

The 6204-C3 FAG bearing is a 6200 series bearing with a steel or standard cage, a cylindrical bore and no seal.

Stock
not in stock
Brand FAG
Article number 6204-C3 FAG
Inside diameter 20mm
Outside diameter 47mm
Width 14mm
Product description

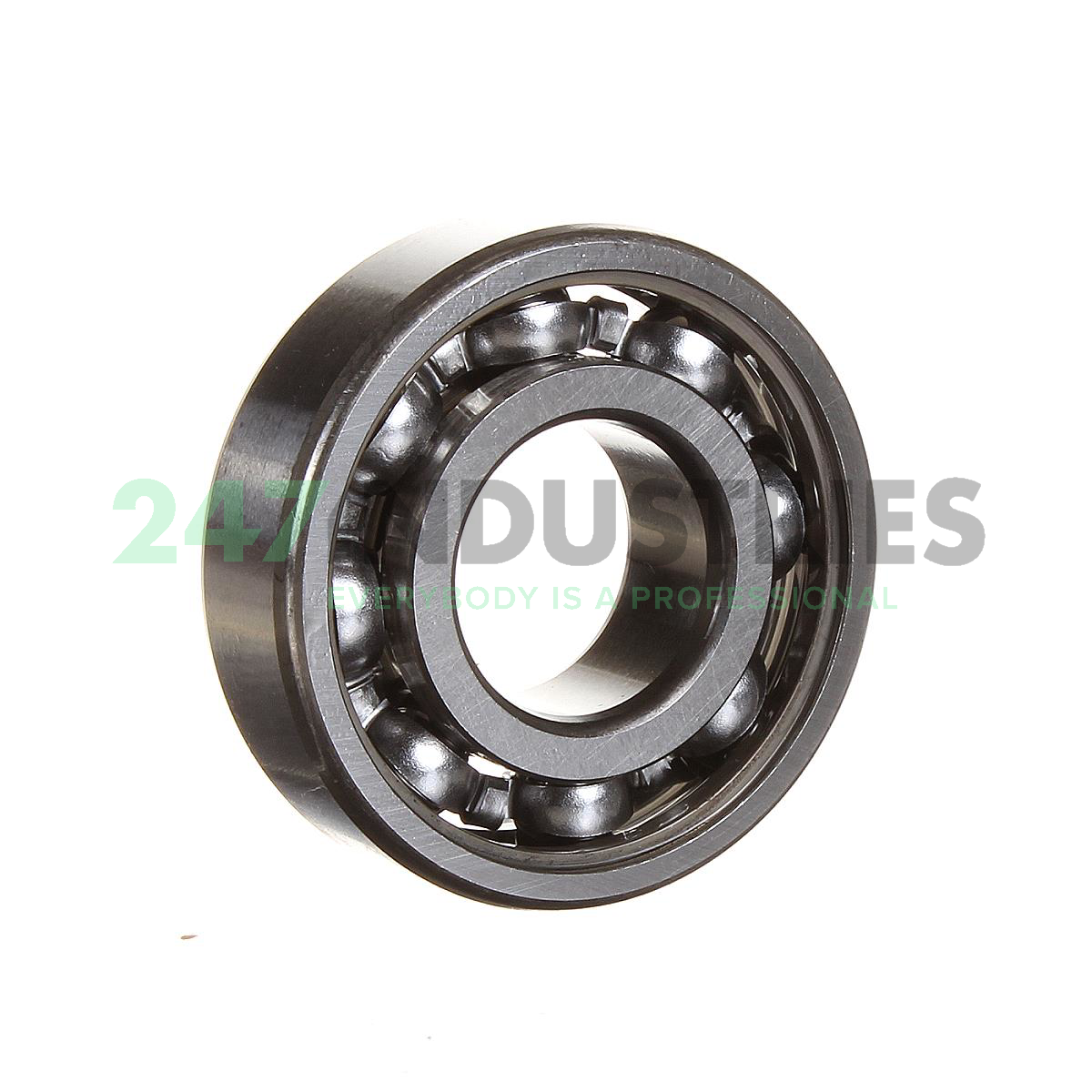

The 6204-C3 FAG is a deep groove ball bearing with a single row design. Deep groove ball bearings have a straight forward design, are robust in operation and are easy to maintain. Deep groove ball bearings reduce rotational friction and support both radial and axial loads.

The 6204-C3 FAG is suitable for high speeds and can operate with low noise.

The dimensions of the 6204-C3 FAG are: Bore (or inner diameter) 20mm, Outer diameter 47mm and Width (or thickness) 14mm.

6200 serie
The 6204-C3 FAG is part of the popular 6200 serie which contain extra light ball bearings and are perfect for limited space applications.The 6200 serie is used in a wide range of industrial processes as well as DIY applications like: skateboards, inline skates, bicycles, washing and drying machines.

Internal play
The C3 in the product name means that this bearing has a higher (internal) clearance than normal. The C3 clearance is most frequently used for this type of bearings. The extra internal clearance allows expansion due to high speeds or temperatures.

About FAG
FAG is a brand of the Schaeffler Group Industrial originated in Germany. The Schaeffler Group produces two major bearing brands: FAG and INA. FAG is known for its strength in innovation, high-quality standards and wide portfolio of bearings and related products. If you choose to buy a product from FAG you are ensured of a top quality product.
Read more Show less
Help with this product

Similar to: 6204-C3 FAG

Loading similair products

Product specifications

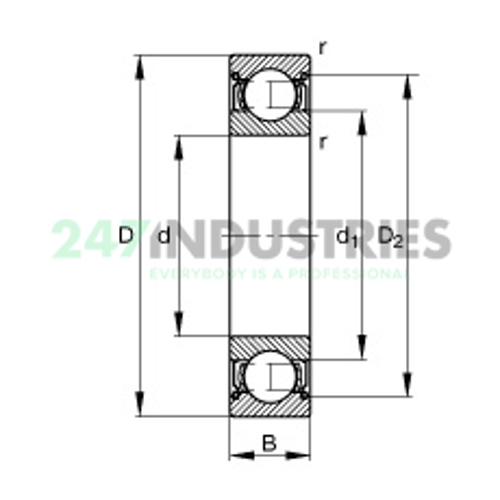

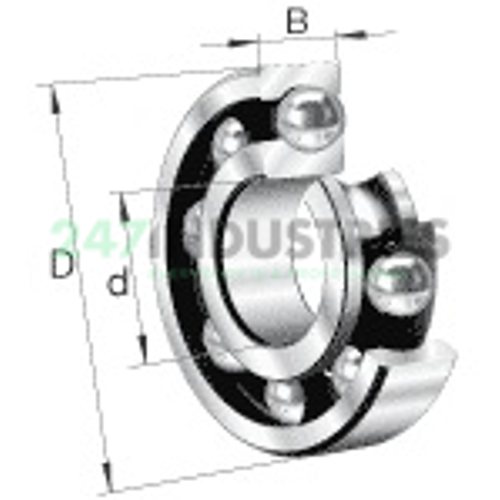

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 47
  3. Width (B) MM 14
  4. Inner (d) Inch -
  5. Outer (D) Inch -
  6. Width (B) Inch -

Technical details

  1. Availability 0 pcs
  2. Brand FAG
  3. Item number 6204-C3 FAG
  4. Technical details (C3) C3=Internal Clearance Larger Than Normal.
  5. Also known as 6204-C-C3
  6. Category 6200 serie
  7. Weight (kg) 0.1060
  8. Manufacturer Part Number (MPN) 6204-C3
  9. Bore C - Cylindrical Bore
  10. Seal No Seal
  11. Cage Type S - Steel or Standard Cage
  12. External Modification No Pairing
  13. Radial Internal Play C3 Internal Play (Higher than Cn)
  14. Precision Standard Precision
  15. Lubrication Standard Lubrication
  16. Heat Stabilization No Heat Stabilization - Temperatures up to 120°C
  17. Special Treatment No Special Treatment
