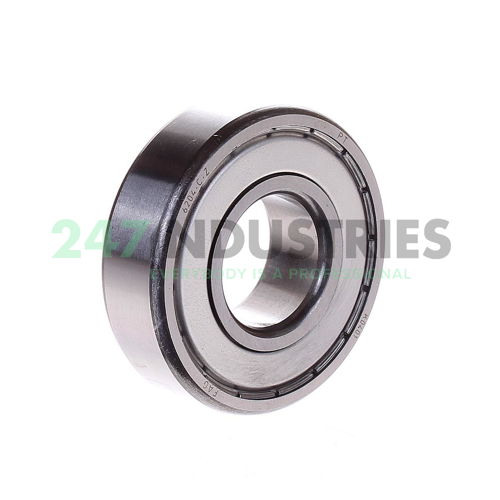

6204-C-Z FAG

All dimensions

1. Inner (d) MM 20,00
2. Outer (D) MM 47,00
3. Width (B) MM 14,00
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5512

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
3. >V 100% Identical Regardless Of Production Location

Technical details

1. Availability 160 pcs
2. Brand FAG
3. Item number 6204-C-Z FAG
4. Also known as 0954045700000
   6204-Z

5. EAN 4054372949401
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.103

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 6600
2. Radial Dynamic Load Rating Cr (N) 13900
3. ECLASS number 23-05-08-01
4. ECLASS2 number 23-05-08-01
5. Medias description Deep groove ball bearing 62..-C-Z, single row, cf. DIN 625-1
